Digital tracking force gauge with ±0.01 g accuracy
Accurate tracking force, made easy

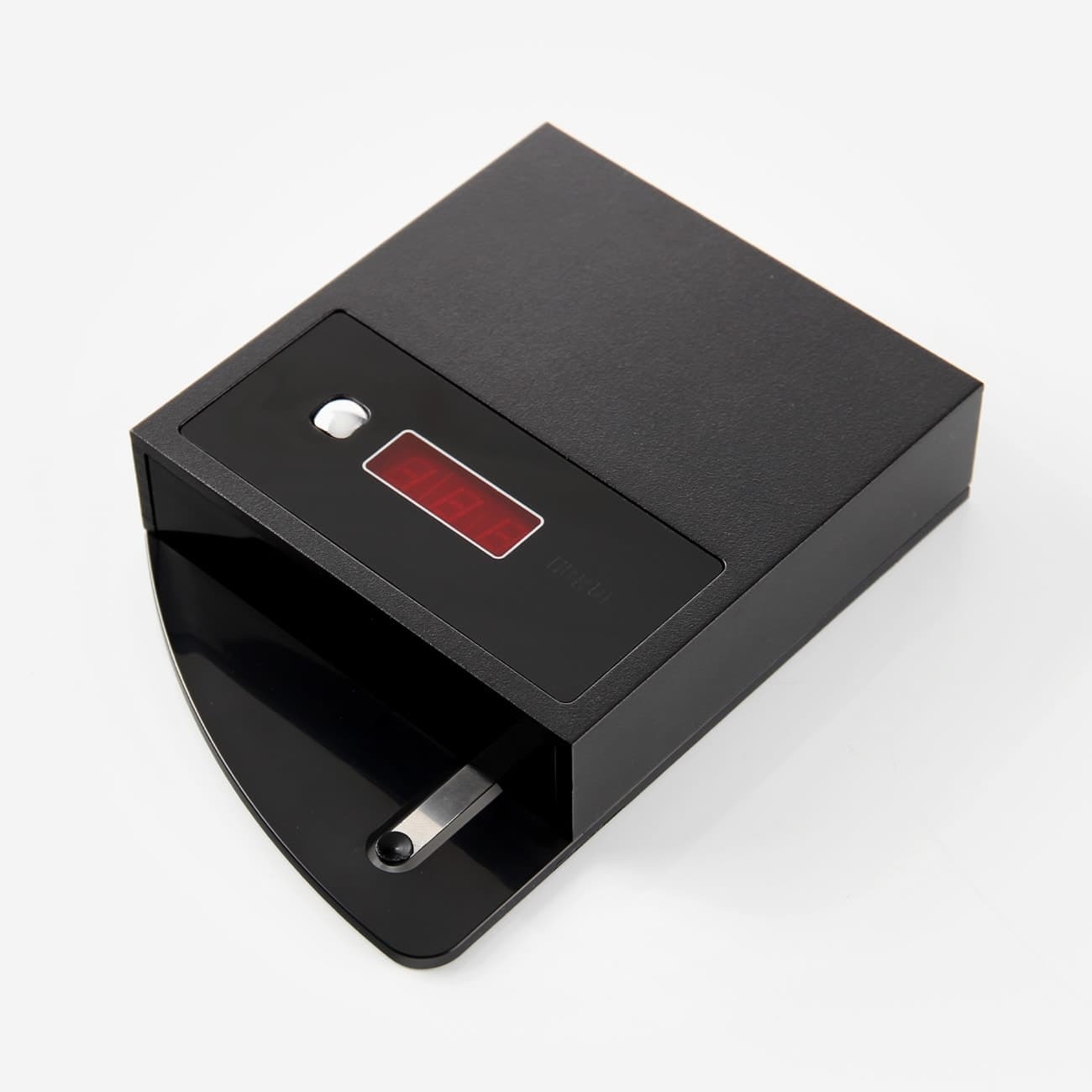

The Rega Atlas MK2 is a digital gauge for measuring the tracking force of any cartridge. Rega designed it for ease of use, repeatable readings and ±0.01 g accuracy, so your cartridge works exactly to its maker’s specification.
What the MK2 adds
The second version extends the measuring range to 10 g, covering the heaviest cartridges on the market, and improves stability and sensitivity. Measurement always takes place at the same point, with minimal user intervention. The Atlas has received a Hi-Fi Choice award.
Why tracking force matters
Tracking force is the most critical setting of a cartridge. A few hundredths of a gram separate clean sound from wear.
Too light
The stylus fails to track the groove properly, especially in loud passages. The result is distortion and, surprisingly, more wear on the groove walls.
Too heavy
The cartridge suspension is stressed, the sound turns heavy and dull, and the stylus wears faster. Records suffer too.
The right figure
Every maker specifies a tracking force for its cartridge. The Atlas MK2 lets you set it to two decimal places rather than relying on counterweight markings.
Precision engineering
The Atlas MK2’s accuracy comes from its sensor and electronics, drawn from demanding measurement applications.
Shear-beam load cell
At its heart is a high-stability full-bridge shear-beam load cell. It is temperature compensated and shock resistant, so readings remain stable.
Precision amplification
A precision amplifier turns the sensor’s tiny signal into a reliable reading, accurate to ±0.01 g across the 0.5–10 g range.
Robust build
The aluminium housing protects the delicate internals. A 20 g safe overload limit guards the sensor against accidental pressure.
Simple, repeatable use
A measuring tool is only useful if it gives the same reading every time. The Atlas MK2 was designed for exactly that.
Always the same point
The front guard guides the stylus to the same measuring point every time and protects the sensor. Repeatability is excellent, with minimal user intervention.
For any cartridge
With a range up to 10 g it covers everything from the lightest moving-coil cartridges to the heaviest on the market, including 78 rpm cartridges.
Ready to use
It runs on an included 9V PP3 battery and comes with a multilingual manual. It is an ideal tool for any turntable owner, not just Rega’s.
Features
- Digital tracking force gauge
- Measures at the same point every time
- Front guard protects the sensor and aids alignment
- LED display
Components & Internal Specifications
- Aluminium housing
- High-stability full-bridge shear-beam load cell, temperature compensated and shock resistant
- Precision amplification circuit
- Power: 9V PP3 battery (included)
Performance Specifications
- Accuracy: ±0.01 g
- Measuring range: 0.5–10 g
- Safe overload: 20 g
