New

Elipson Classic Sub 10

Write your review |

SKU: APA2026-01345

Free Shipping
12
Interest FreeInstalments
2 Years Warranty

Free Shipping
12
Interest FreeInstalments
2 Years Warranty

499 €

Upon Order

Select Quantity

Add to cart

Instalments:

41,58 € / month

NEED HELP?

Our expert advisors can help you.

Description
Specifications

Active 25 cm / 200 W bass-reflex subwoofer

The Elipson Classic Sub 10 is an active bass-reflex subwoofer built to add depth and weight to a hi-fi or home cinema system. It combines a 25 cm (10-inch) woofer with a fibreglass cone and 200 W of Class D amplification, with a frequency response reaching down to 29 Hz.

It sits at the heart of the Classic Sub range and is its most versatile model, pairing equally well with bookshelf and floorstanding speakers. A +6.3 dB digital boost at 33 Hz reinforces the deepest frequencies, while the crossover (40–160 Hz) and phase controls make it easy to blend with your main speakers in medium-sized living rooms.

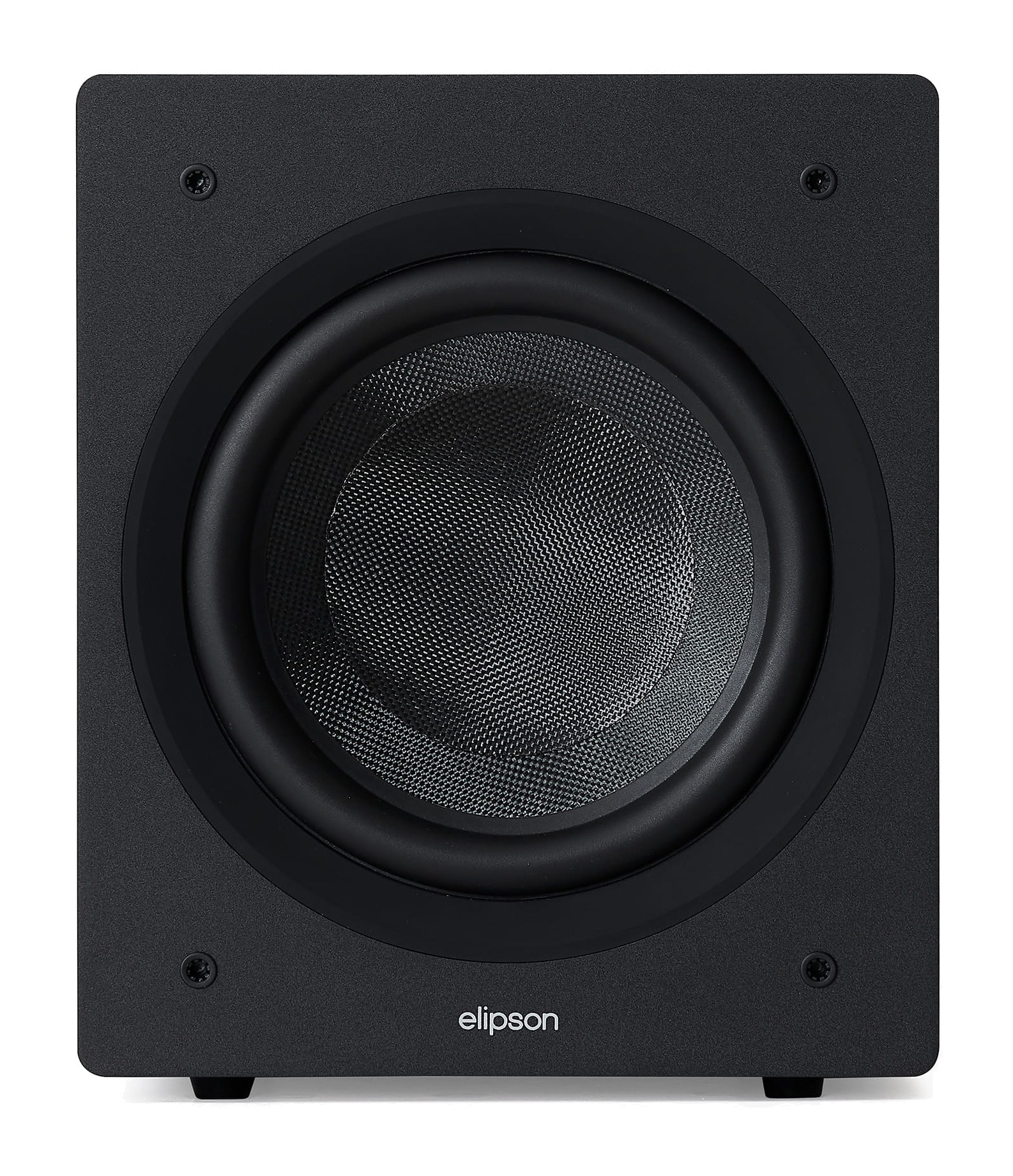

25 cm driver and 200 W

At the heart of the Elipson Classic Sub 10 is a 25 cm (10-inch) woofer with a fibreglass cone. The material is both stiff and light, so the cone moves quickly and with precision. The result is tight, fast bass that follows the rhythm of a music recording and the most spectacular film effects with equal ease, without losing clarity.

200 W Class D amplification

To get the most out of the driver, the subwoofer has a built-in 200 W Class D amplifier. Class D technology offers high efficiency and plenty of power in reserve for the cone’s long excursions, so percussion keeps its dynamics, bass lines gain weight and home cinema explosions carry real impact.

Bass-reflex design

The bass-reflex cabinet uses its port to extend the response further down. The Elipson Classic Sub 10 covers 29 to 160 Hz (±3 dB), effectively complementing speakers that cannot reach that low on their own and giving the whole system a fuller, more natural foundation.

With 200 W of power and a 25 cm driver, the Elipson Classic Sub 10 is ideal for medium-sized living rooms. It adds the low-end energy that is missing, so a double bass gains body, a kick drum gains punch and a soundtrack gains its full cinematic scale, without the bass becoming bloated or masking the midrange.

DSP boost at 33 Hz

For an even greater sense of depth, the Elipson Classic Sub 10 features a DSP circuit that applies a +6.3 dB boost centred on 33 Hz. This targeted reinforcement gives more presence to the very lowest frequencies, where film effects or an electronic bass line become something you feel rather than just hear.

Subsonic filter at 22 Hz

At the same time, a fixed 22 Hz subsonic filter with a 12 dB/octave slope removes extremely low frequencies that the driver could not reproduce usefully. This protects the cone from unnecessary excursion and keeps the subwoofer under control even in the most demanding passages.

Depth with control

Together, the boost and the subsonic filter make the most of the 25 cm driver: more depth where it matters, without losing control. The bass stays full and physical, yet clean and well defined, with music and films alike.

The boost is not simply a louder low end: it acts on a specific region below the subwoofer’s nominal response, where you find the chest-thumping impact of action scenes and the pressure of deep synths in electronic music. You gain a real sense of infrabass without needing a larger cabinet.

Easy hi-fi and home cinema integration

The Elipson Classic Sub 10 offers a variable crossover from 40 to 160 Hz. You can set precisely where the subwoofer takes over, depending on how low your main speakers reach, for a natural transition with no gaps or excess in the bass.

Phase control 0° / 180°

A 0° / 180° phase switch helps when the subwoofer’s position in the room creates a phase difference with the main speakers. With one move the bass is aligned with the rest of the system, making placement easier in both stereo and home cinema setups.

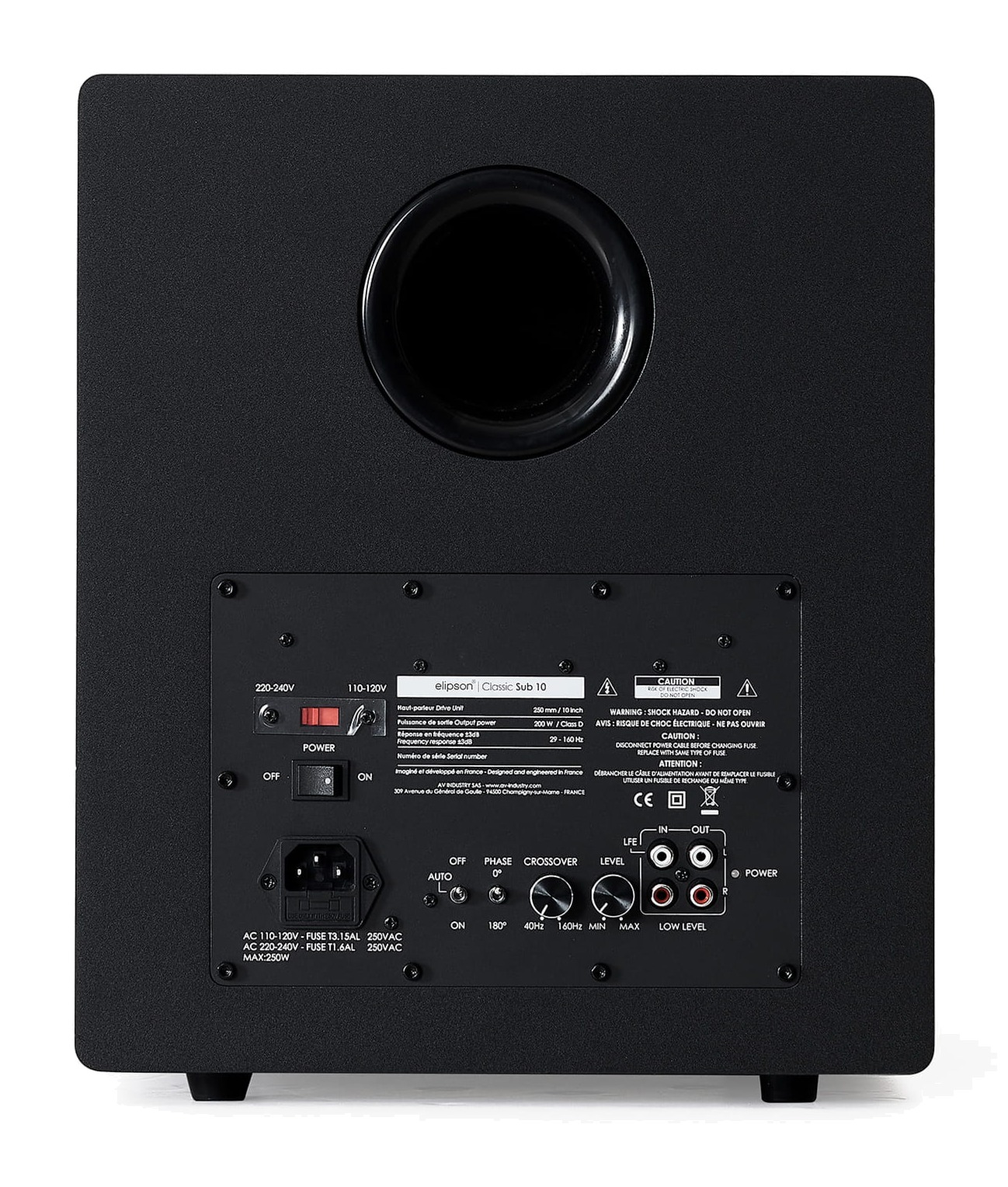

Inputs, output and auto standby

For connection to hi-fi amplifiers and AV receivers, it provides a pair of low-level RCA L/R line inputs that also work as an LFE input, plus a stereo line output to link a second subwoofer or another device. The auto standby function puts it to sleep when no signal is present, so it can stay connected permanently without wasting power.

Thanks to this flexibility, the Elipson Classic Sub 10 connects easily to most hi-fi amplifiers and AV receivers: through the line inputs in a stereo system, or through the receiver’s subwoofer (LFE) output in a home cinema. The stereo line output also allows a dual-subwoofer setup for more even bass throughout the room.
