QSC AD-S4T

SKU: APA2018-23866
  • 36  Instalments
  • 2 years warranty
    2 Years Warranty

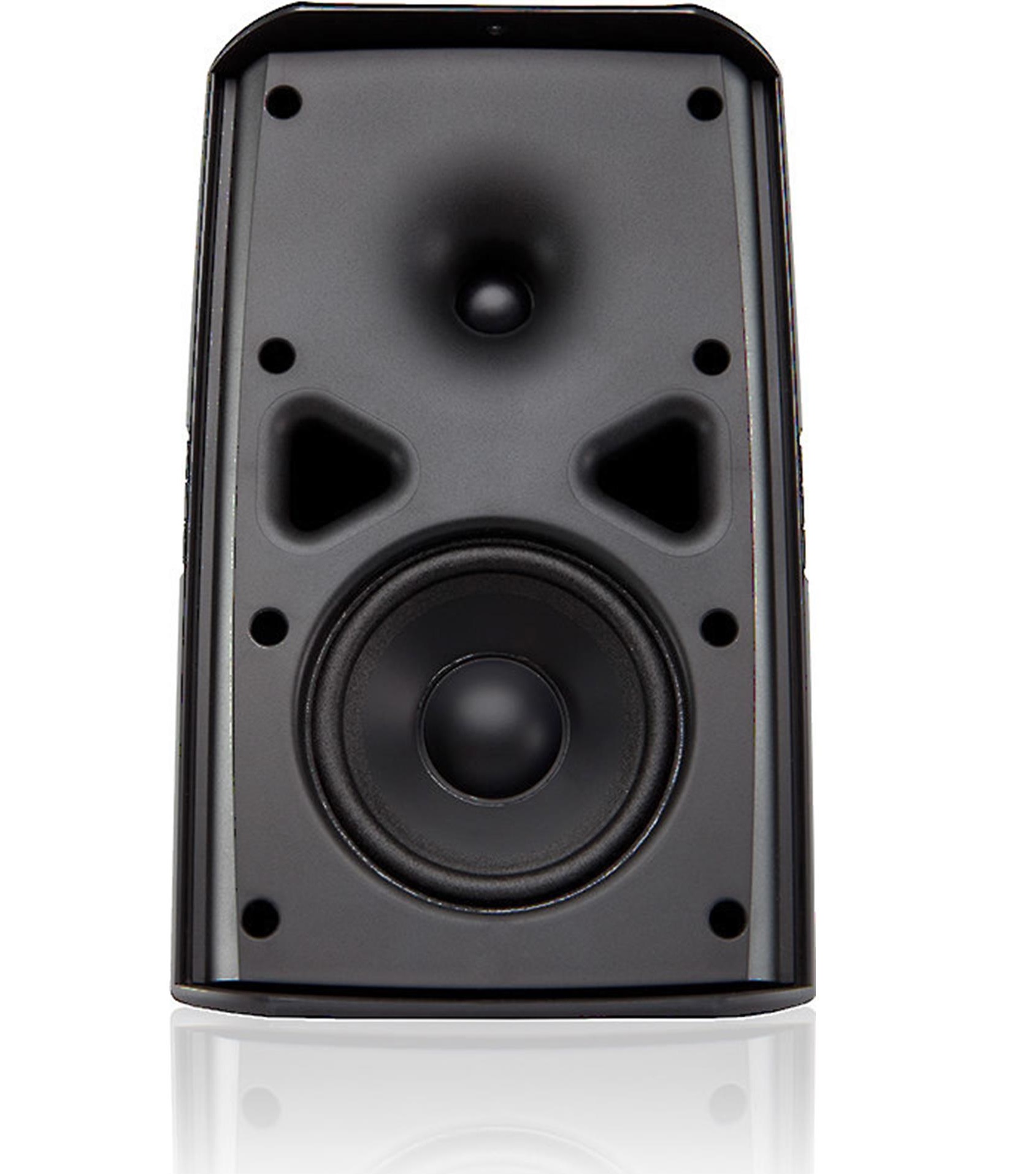

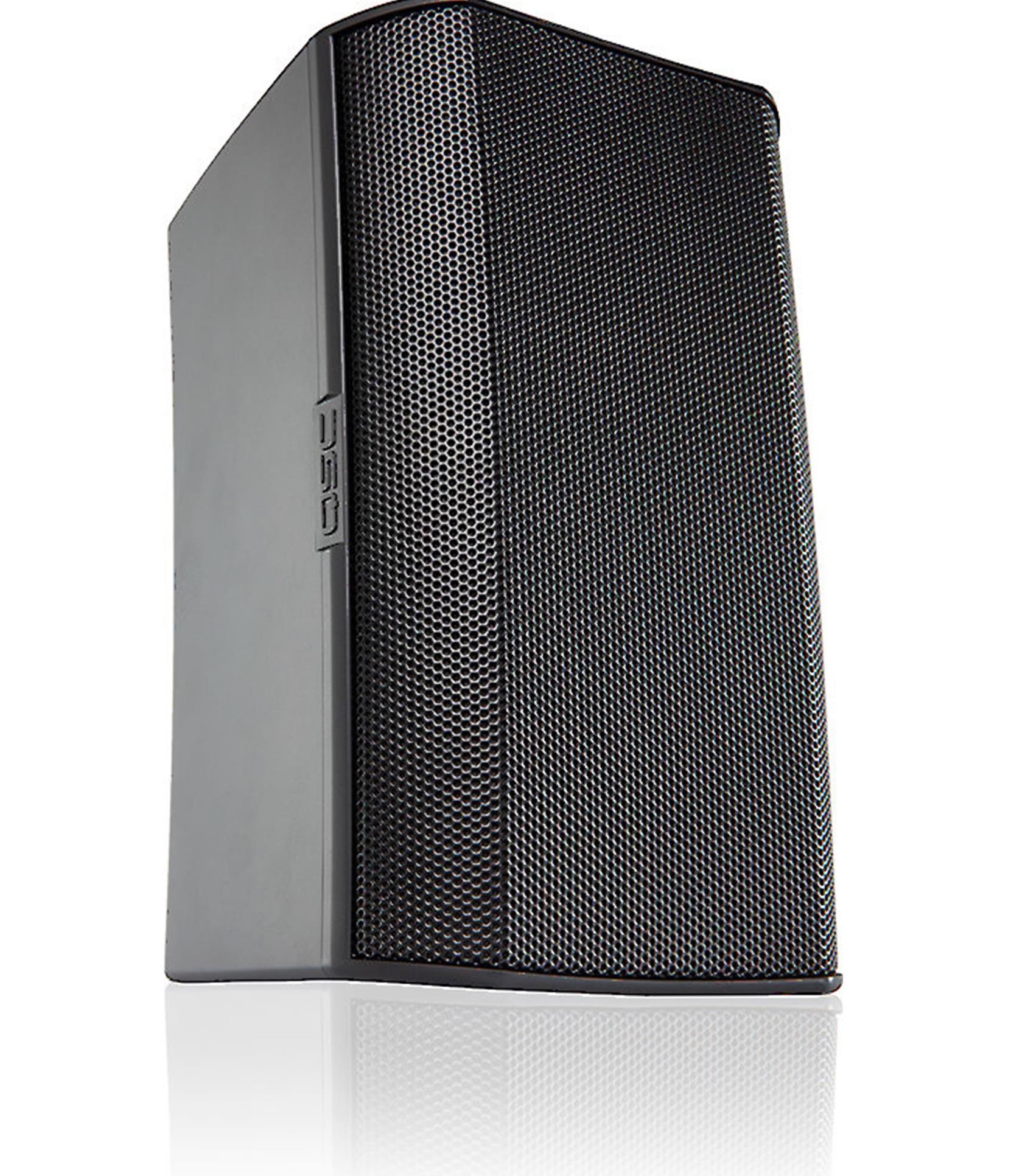

The black QSC AcousticDesign AD-S4T Loudspeaker is a surface mounted 70/100V, 4" two-way loudspeaker system, ideally suited for a wide variety of foreground and background sound reinforcement applications. The AD-S4T features a high-quality 4" weather-treated paper cone woofer on a 1" voice coil. It...more

  • 36  Instalments
  • 2 years warranty
    2 Years Warranty
265 €

VAT included and Κανονικά Μεταφορικά

Available in warehouse (Delivery 1-3 days)
Add to cart
apa support icon

NEED HELP?

Our expert engineers can assist you!

The black QSC AcousticDesign AD-S4T Loudspeaker is a surface mounted 70/100V, 4" two-way loudspeaker system, ideally suited for a wide variety of foreground and background sound reinforcement applications. The AD-S4T features a high-quality 4" weather-treated paper cone woofer on a 1" voice coil. It also has a 0.75" silk dome tweeter with a 0.75" voice coil.


Features
  • 4.5” weather treated woofer; 0.75” silk dome tweeter
  • 120° conical DMT coverage
  • 30 watt low-saturation and low-loss 70/100V transformer with 8Ω bypass
  • Maximum peak SPL 110 dB (8 ohm bypass)
  • DMT™ (Directivity Matched Transition) ensures smooth, uniform frequency response over the coverage area
  • X-Mount™ system enables the loudspeaker to be easily installed and deployed at a variety of angles with no slippage over time
  • Advanced voicing filter sets using QSC Intrinsic Correction™, available through either Q-SYS processing or CXD amplifier platforms
  • Lightweight ABS enclosures offer long-term durability and lasting good looks
  • Sealed input panel cover and powder coated aluminum grilles for added weather resistance
  • Meets IEC60529 IP-54 for dust and splash resistance
  • Available in black (RAL 9011) or white (RAL 9010)
  • Complete EASE, CF2, CAD, and BIM information available online


Specifications:

  • Effective frequency range1: 68 Hz - 20 kHz
  • Rated noise power / voltage2: 50 watts / 20 volts (rms)
  • Broadband sensitivity3: 87 dB SPL
  • Coverage angle (-6 dB): 120° conical DMT
  • Directivity factor (Q): 6
  • Directivity Index: 8 dB
  • Maximum continuous SPL4: 104 dB
  • Maximum peak SPL4: 110 dB
  • Rated impedance: 8 ohms
  • Recommended amplifier power: 100 watts
  • Transformer taps: 70 V: 30, 15, 7.5, 3.75 W and 8Ω bypass,
  • Input connector type: Euroblock connector with parallel output terminals
  • Enclosure material: Painted ABS polymer
  • Grille material: Powder coated aluminum

The price is for 1 speaker.
Mounting Bracket Included. Priced as each, Sold in Pairs.
