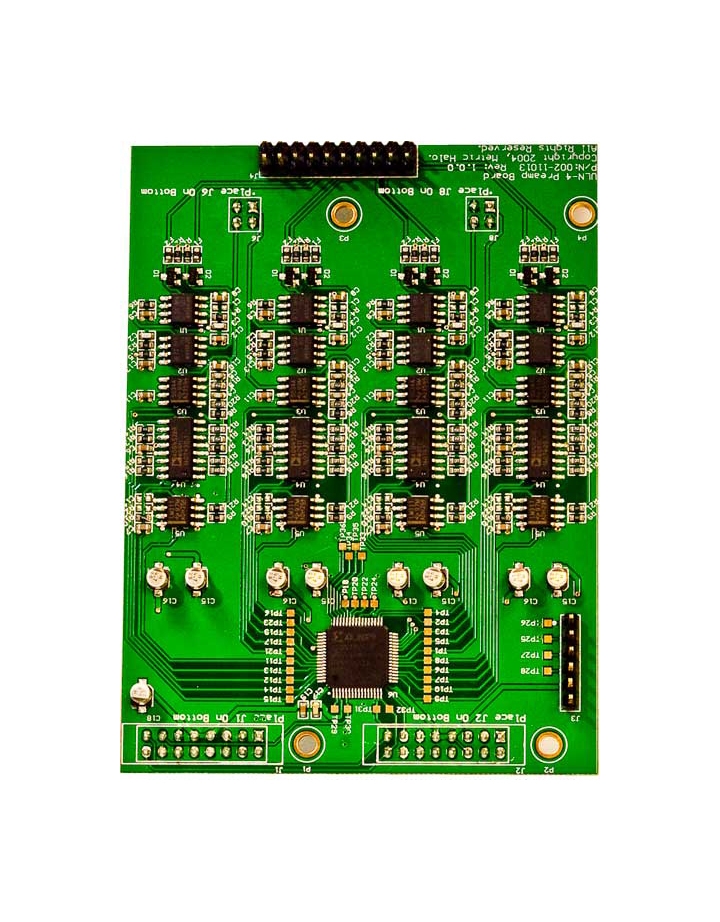

Metric Halo 5 - 8 ch ULN-R Preamp Upgrade for LIO-8

Add a review

Product Code: APA-2018-65785

Metric Halo 5 - 8 ch ULN-R Preamp Upgrade for LIO-8

Product Code: APA-2018-65785

This Kit adds channels 5-8 of ULN-R preamps to a LIO-8 that has an 8 channel DB-25 Input connector board already installedThese are the same preamps as used in the ULN-8. Specifications: Mic Pre Input + ADCInput Impedance   3.3 kΩDynamic Range (-60 dB, flat 0-22.05 kHz, typ) .. ...Read More
€399,00 Price including VAT & Free Shipping

Cataloge Price: €505.00

Save: €106.00 (21%)

Available in a short time (2-5 days)
399.00 € Final price with VAT and shipping
List Price: €505.00
You win: €106.00

Installments:

33.25€ / month
Available in a short time (2-5 days)
Notify me when the product is available

Shopping Guide

Sound Cards

Read the shopping guide for Sound Cards

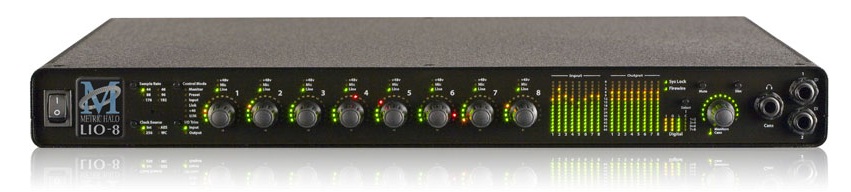

This Kit adds channels 5-8 of ULN-R preamps to a LIO-8 that has an 8 channel DB-25 Input connector board already installed

These are the same preamps as used in the ULN-8.



Specifications:



Mic Pre Input + ADC
Input Impedance   3.3 kΩ
Dynamic Range (-60 dB, flat 0-22.05 kHz, typ)   115 dB
Dynamic Range (-60 dB, A-weighted, typ)   118 dB
Noise Floor (flat 0-22.05 kHz, typ)   115 dB
Noise Floor (A-weighted, typ)   117.9 dB
Gain Range   -22 dB to +91.5 dB
Gain Precision   ±0.05 dB
Gain Step   0.5 dB
THD D/A/A/D loop @ -12 dBFS   0.0007 %
THD D/A/A/D loop @ -12 dBFS +12 dB Gain   0.0015 %
THD D/A/A/D loop @ -0 dBFS   0.0023 %
Crosstalk @ 1kHz   -110dB
IMD 1k component (19 kHz/20kHz @ +8dBu)   -104 dBu
EIN @ 60 dB Gain (150Ω Source Impedance)   -130.50 dBu
EIN @ 60 dB Gain (0Ω Source Impedance)   -133.25 dBu
Analog Send Calibration (ADC = 0 dBFS)   +21.5 dBu
Phantom Power (Switchable Per Channel)   +48 Volts
Mic Pre + ADC Frequency Response
+0/-0.1dB @ fs = 44100 Hz   8.9 Hz - 20.5 kHz
+0/-1.0dB @ fs = 44100 Hz   2.9 Hz - 21.0 kHz
+0/-0.1dB @ fs = 96000 Hz   8.9 Hz - 43.9 kHz
+0/-1.0dB @ fs = 96000 Hz   2.9 Hz - 45.4 kHz
+0/-0.1dB @ fs = 192000 Hz   8.9 Hz - 42.1 kHz
+0/-1.0dB @ fs = 192000 Hz   2.9 Hz - 64.7 kHz
5° low-end in-channel phase deviation point   20.0 Hz
Interchannel phase 0 Hz - 20 kHz   < ±0.05°
Crosstalk from SMPTE Input   < -142 dB
