Martin Audio Blackline Q8

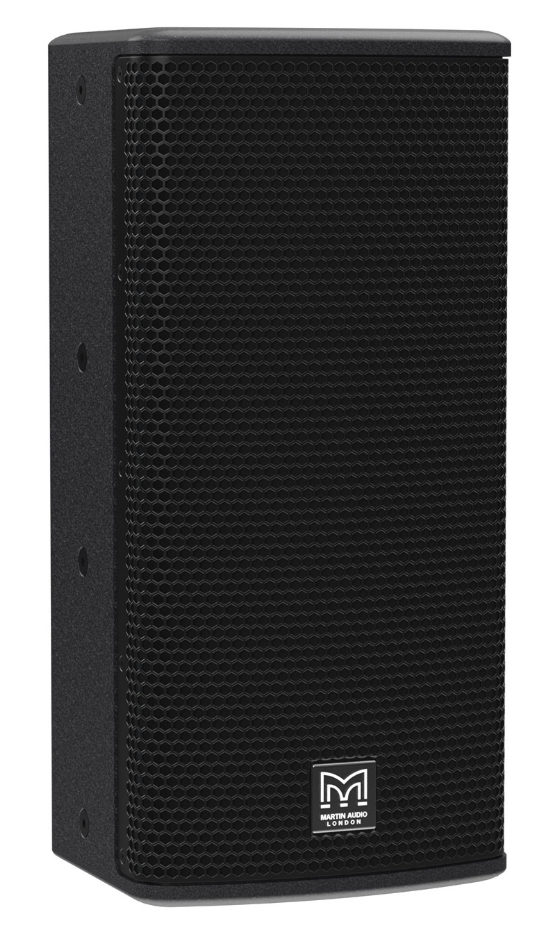

Blackline Q8 is an ultra-compact, passive two-way loudspeaker featuring an 8” (200mm) LF driver with a 2” (50mm) voice coil and a 1” (25mm) exit HF compression driver with a 1” (25mm) dome. It has a Differential Dispersion horn for wider and more consistent coverage, which can be easily rotated for horizontal or vertical orientation depending on deployment needs. Despite its small size, Q8 delivers impressive performance, achieving a peak SPL of 121dB (127dB with crest factor 4).

Features

• Ultra-Compact passive two-way system
• Symmetrical multi-angle plywood enclosure
• Peak SPL of 121dB (127dB with crest factor 4)
• User-rotatable Differential Dispersion horn
• Dispersion: 90°–110° horizontal × 50° vertical
• Vertical and horizontal orientation
• Screw-tight, cloth-backed perforated steel grille
• Integrated ergonomic handle made from recycled ABS
• Pole-mount cover maintains clean lines
• 8Ω nominal impedance
• Two NL4 connectors

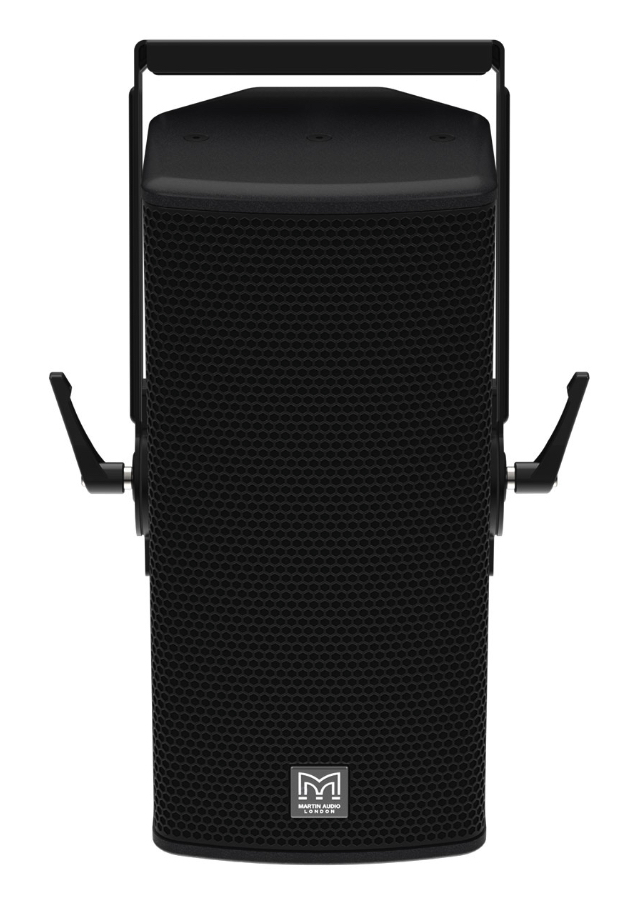

• Flexible mounting options via M8 inserts
