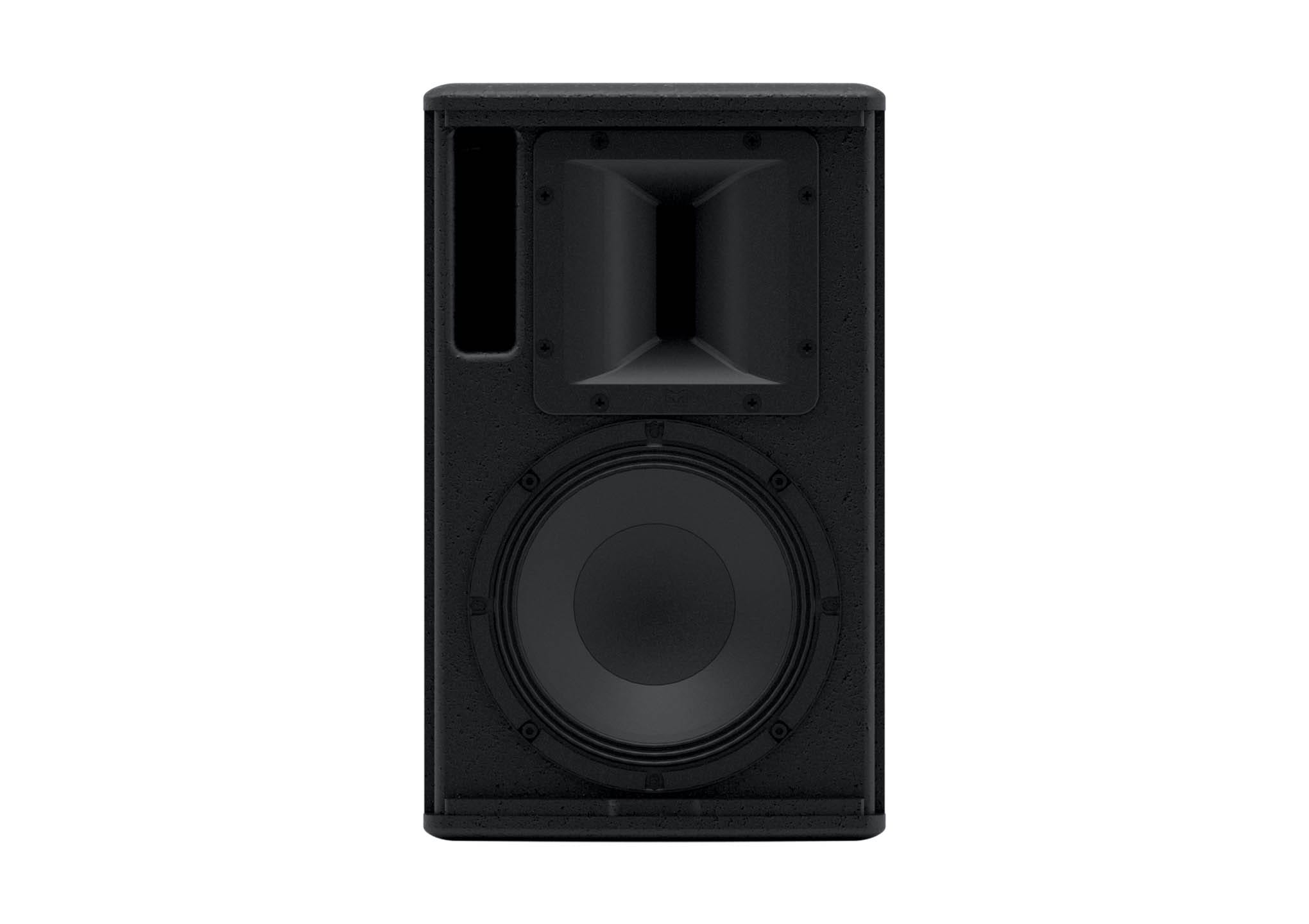

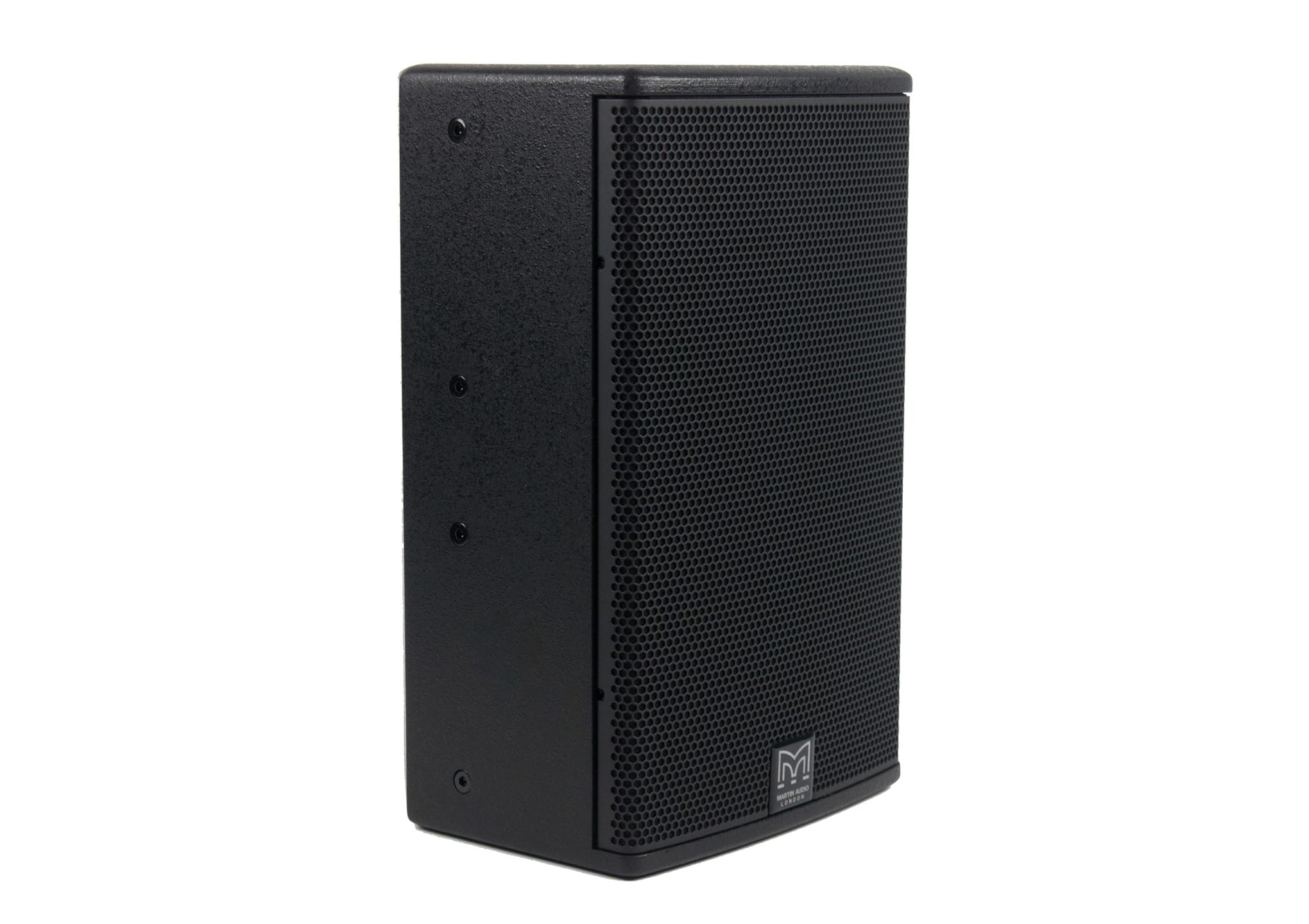

Martin Audio Blackline X8 Black
SKU: APA2022-11174
-
36 Instalments
-
2 Years Warranty
The Blackline X8 is an ultra-compact passive two-way system with an 8” (200mm)/2” (50mm) voice coil LF driver and a 1” (25mm) HF driver mounted on a 90° x 50° horn which can be easily rotated for horizontal or vertical orientation, depending on venue requirements. Its very small size gives no indica...more
-
36 Instalments
-
2 Years Warranty
540 €
VAT included and Κανονικά Μεταφορικά
Available in warehouse (Delivery 1-3 days)
Add to cart
Add to Wishlist
The Blackline X8 is an ultra-compact passive two-way system with an 8” (200mm)/2” (50mm) voice coil LF driver and a 1” (25mm) HF driver mounted on a 90° x 50° horn which can be easily rotated for horizontal or vertical orientation, depending on venue requirements. Its very small size gives no indication of its high output capability.
Features
- Ultra-Compact passive two-way system
- Symmetrical multi-angle plywood enclosure
- User-rotatable 90° x 50° horn
- Vertical and horizontal orientation
- Screw-free, cloth-backed perforated steel grille
- Integral ergonomic handle
- Pole-mount bung maintains clean lines
- 8Ω nominal impedance
- Twin NL4 connectors
- Flexible mounting options via M8 inserts
Specifications
- TYPE Ultra-Compact, passive two-way system
- FREQUENCY RESPONSE (5) 70Hz-20kHz ± 3dB, -10dB @ 60Hz
- DRIVER LF: 8” (200mm)/2” (50mm) voice coil, ferrite motor system
- HF: 1” (25mm) exit/1” (25mm) voice coil, polyimide dome compression driver
- RATED POWER (2) 200W AES, 800W peak
- SENSITIVITY (8) 92dB
- MAXIMUM SPL (9) 115dB continuous, 121dB peak
- NOMINAL IMPEDANCE 8Ω
- DISPERSION (-6DB) 90° H x 50° V (user-rotatable)
- CROSSOVER 2.9kHz passive
- ENCLOSURE Multi-angle birch/poplar ply
- FINISH Black textured paint
- PROTECTIVE GRILLE Black perforated steel with scrim cloth backing
- CONNECTORS 2 x NL4 type
- PIN CONNECTIONS (INPUT) 1+/1-
- PIN CONNECTIONS (LINK) 1+/- to 1+/-
- FITTINGS 13 x M8, 6 x M6 inserts, pole-mount socket, 1 x pocket handle
- DIMENSIONS (W) 257mm x (H) 422mm x (D) 243mm
- (W) 10.1ins x (H) 16.6ins x (D) 9.6ins
- WEIGHT 8kg (17.6lbs)
- ACCESSORIES Wall bracket, eyebolts
