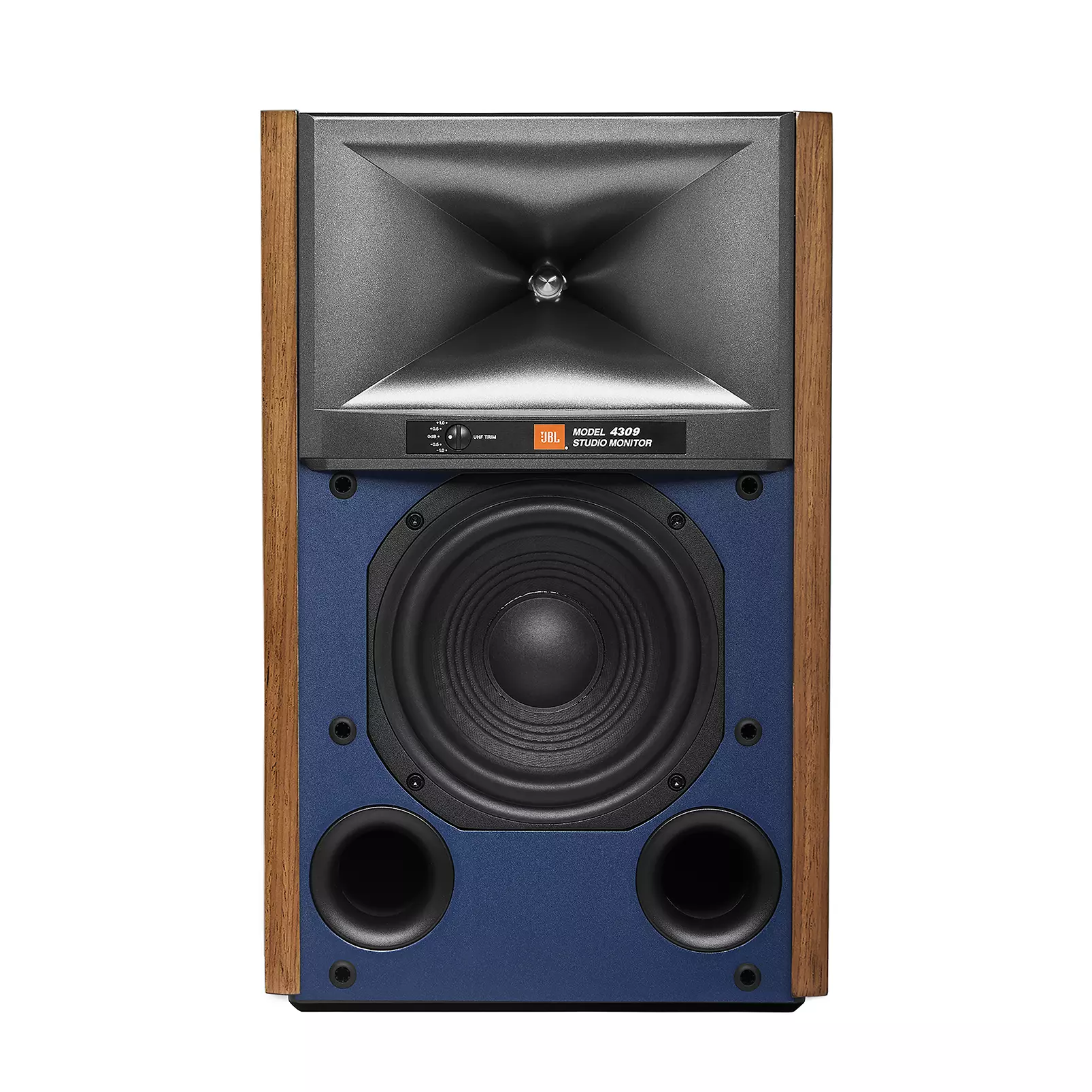

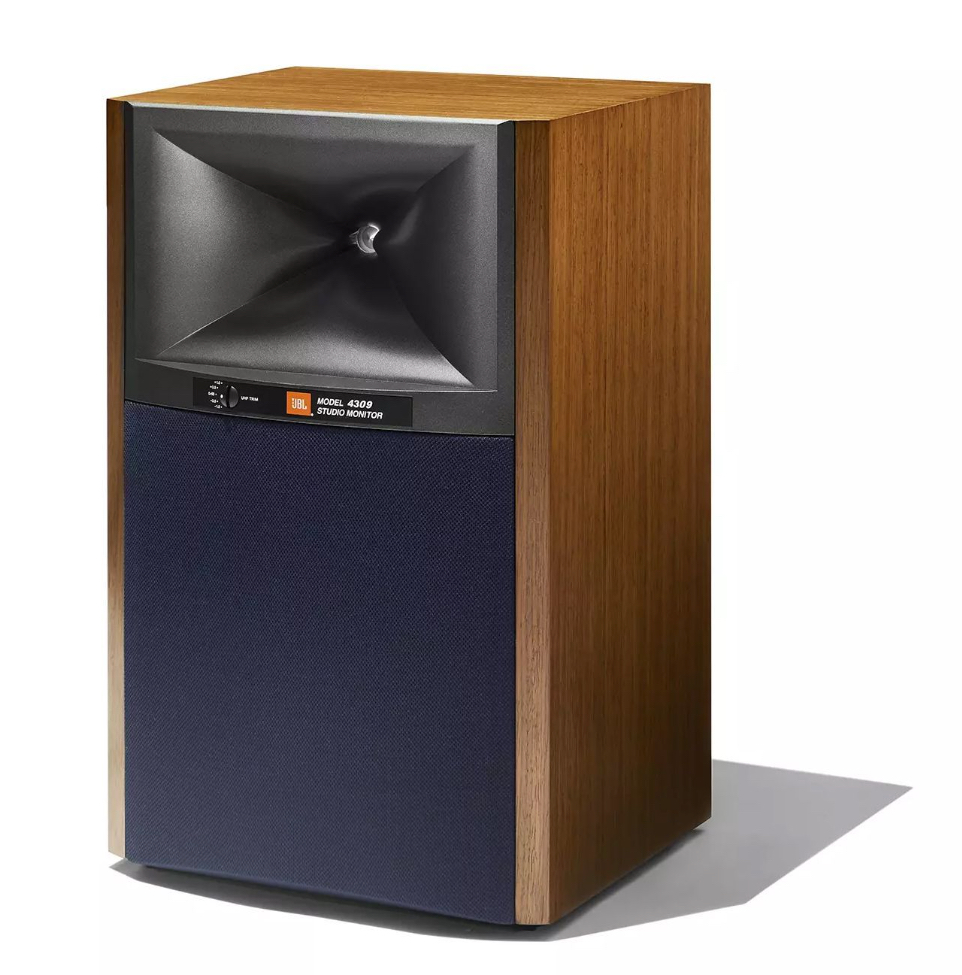

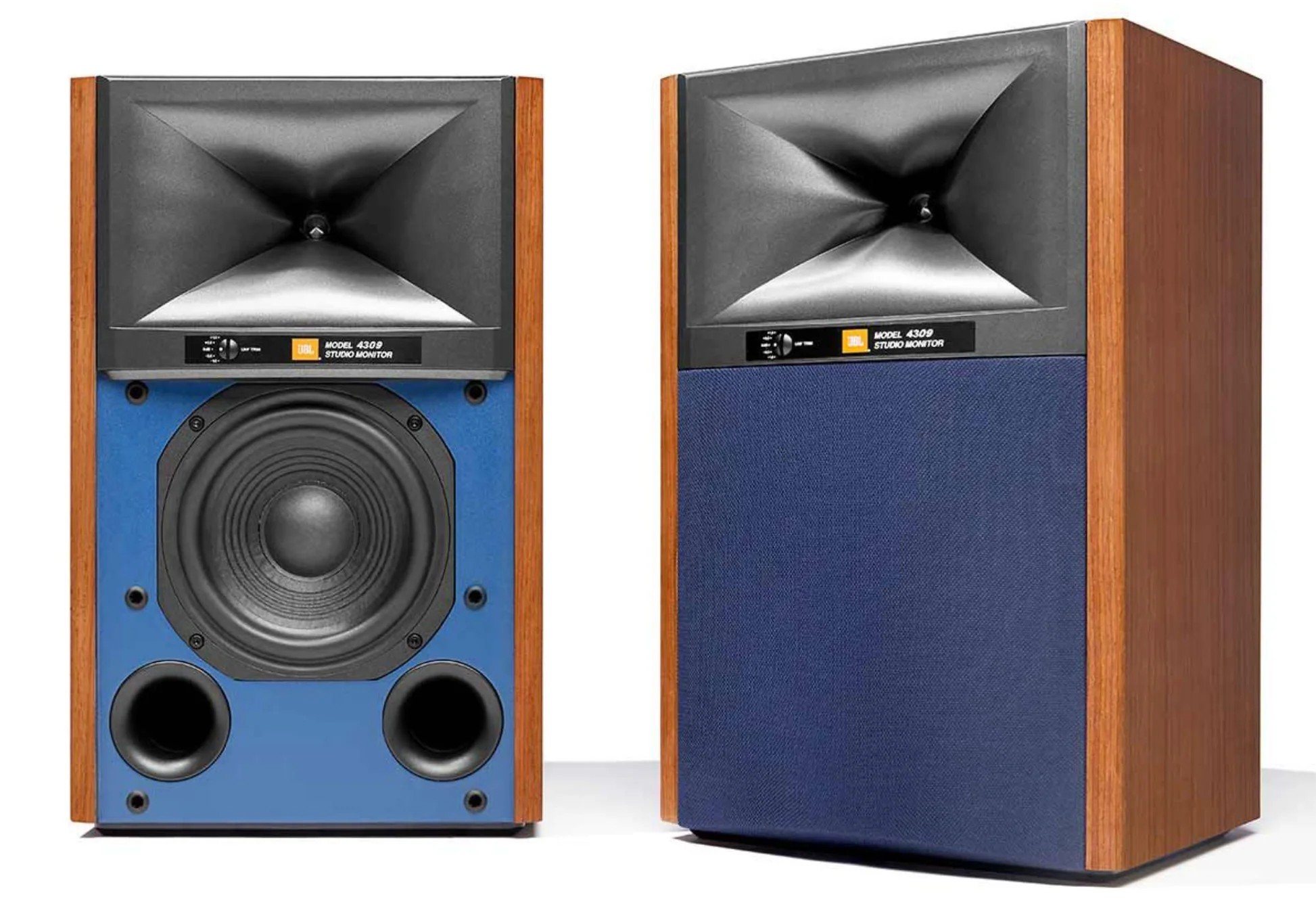

JBL 4309

6.5-inch (165mm) 2-way Bookshelf Loudspeaker

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the 4309 Studio Monitor is a showcase of patented JBL acoustics technologies. This bookshelf loudspeaker features a 2-way design with patented High-Definition Imaging (HDI™) horn technology, the patented 2410H-2 1-inch (25mm) compression driver, and a 6.5-inch (165mm) cast-frame, Pure-pulp cone woofer for powerful dynamics and incredibly accurate sound reproduction.

  • Patented 2410H-2 1" (25mm) compression driver with High Definition Imaging ™ geometry horn.
  • 6.5-inch (165mm) pure-pulp cone woofer in bass-reflex design with dual front-firing tuned ports.
  • Choice of Satin Walnut or Black Walnut furniture-grade satin wood veneers.
Specifications
  • • Low Frequency Driver: 6.5” (165mm)
  • • Pure Pulp cone woofer
  • • High Frequency Driver: 2410H-2 1-inch (25mm) annular ring, Teonex®diaphragm
  • compression driver with advanced HDI™ geometry horn
  • • Recommended Amplifier Power: 25 – 150 WRMS
  • • Impedance: 4 Ohm
  • • Loudspeaker Sensitivity: 87dB/2.83V/1m
  • • Frequency Response: 42Hz – 30kHz (-6dB)
  • • Coverage Angle, -6dB: 100 Degrees Hor. x 80 Degrees Ver., from 2kHz to 17kHz
  • • Crossover Frequency: 1.6kHz
  • • Enclosure Type: V-braced front-ported bookshelf
  • • Grille Feature: Monitor style to match horn mating features, supplied in dark blue (with
  • walnut cabinet) and black (with black cabinet)
  • • Dimensions with grille: 16.5” H x 10.25” W x 9” D (419mm H x 260mm W x 227mm D)
  • • Controls: UHF tone control
  • • Input Type: Dual sets of gold-plated binding posts with shorting straps
  • • Product Weight (Each): 24.2 lbs (10.98kg)
  • • Shipping Weight: 56.2 lbs (25.5kg)
  • • Shipping Units of Measure: Pair
  • • Warranty: 5 Years
  • • Recommended stand height: 24” (609mm)JBL 43096.5-inch (165mm) 2-way Studio
  • • Monitor Loudspeaker
