Audac CENA506 White

SKU: APA2021-00630
  • 36  Instalments
  • 2 years warranty
    2 Years Warranty

The CENA series are full-range ceiling speakers, designed to offer an unmatched solution for large scale public address projects....more

  • 36  Instalments
  • 2 years warranty
    2 Years Warranty
27 €

VAT included and Κανονικά Μεταφορικά

Upon Order
Add to cart
apa support icon

NEED HELP?

Our expert engineers can assist you!

guide image

ONLINE GUIDE

Read our buyer's guide for Ηχεία

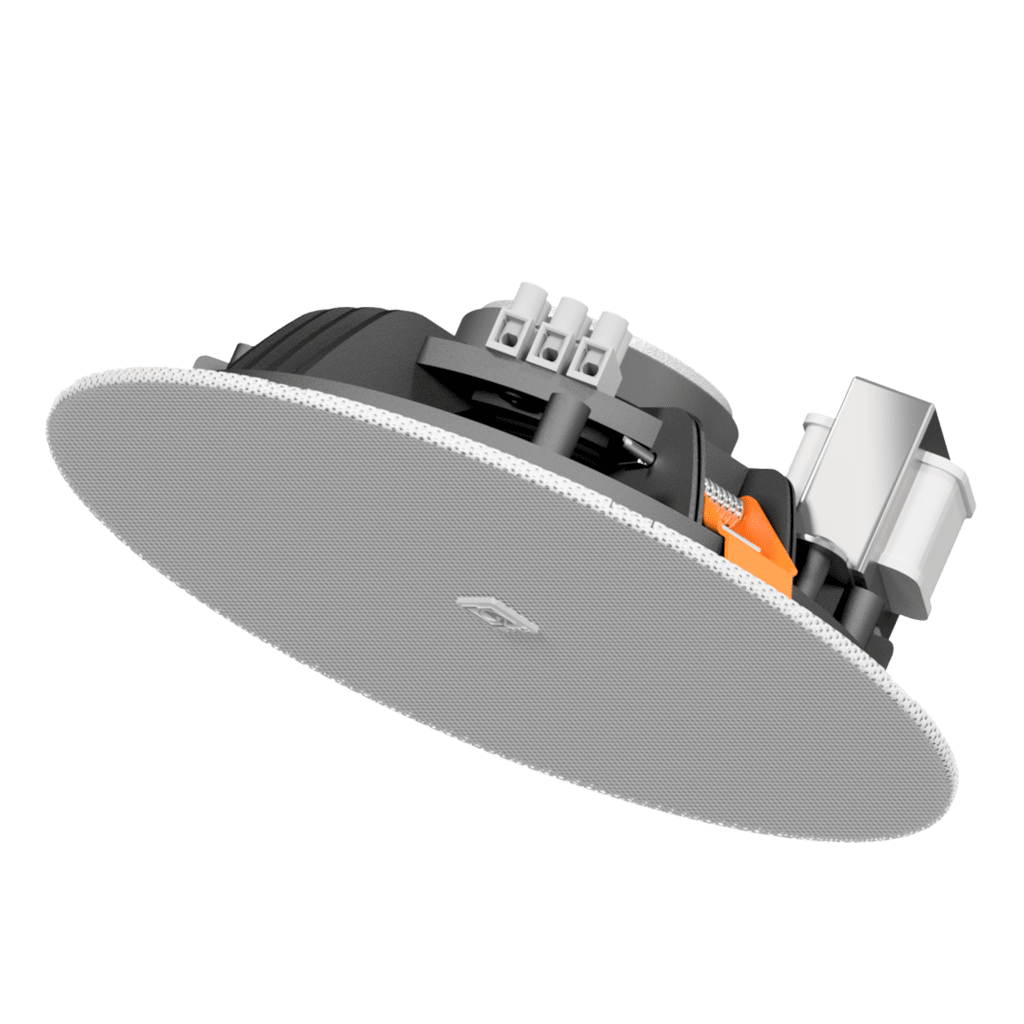

The unbeatable one. The CENA series are full-range ceiling speakers, designed to offer an unmatched solution for large scale public address projects. The SpringFit™ fixation offers the fastest possible installation time of any speaker available on the market, while the borderless grill design is absolutely unseen for any ceiling speaker in this segment.

With the selection of high-quality cone materials, exceptional intelligibility and background music performance are guaranteed. The CENA Series are equipped with SnapConnect™, a faster, more reliable and safer choice for fixed installations, accepting solid and stranded wires with sections up to 4.0 mm².

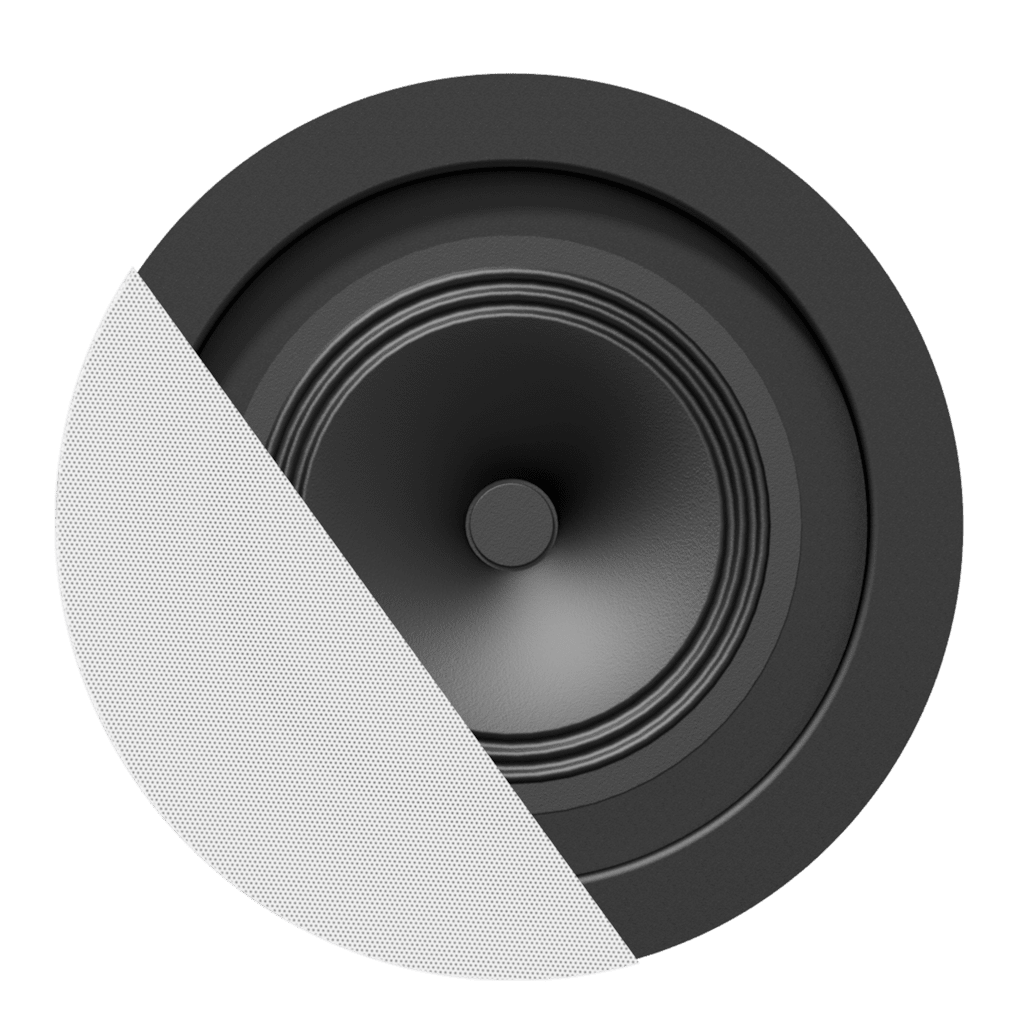

The CENA506 features a 5” broadband driver with a continuous power handling of 10 Watt (RMS) and maximum power handling of 20 Watt. They are fitted by multi-tapping 100V line transformers with tappings for 6W and 3W.

Specifications

  • Max. Power: 20 W
  • RMS Power: 10 W
  • Sensitivity (1W/1m): 93 dB
  • Speaker type: Broadband
  • Connection: SnapConnect™
  • Impedance: 8 Ω (CENA506), 16 Ω (CENA510D)
  • Connection: Screw terminal
  • Drivers: 5” Full Range
  • Sound Pressure (Max. W/1m) : @ 100 V 103 dB
  • Frequency Response (± 3 dB): 100 Hz - 15 kHz, Range (-10 dB) 80 Hz - 18 kHz
  • Line Transformer Tappings: 1 6 W / 1667 Ω, 2 3 W / 3333 Ω
  • Dispersion: Conical: 155°
  • Cut-out measurement: 150 mm (Ø)
  • Dimensions: 180 x 60 mm (Ø x D)
  • Construction: ABS

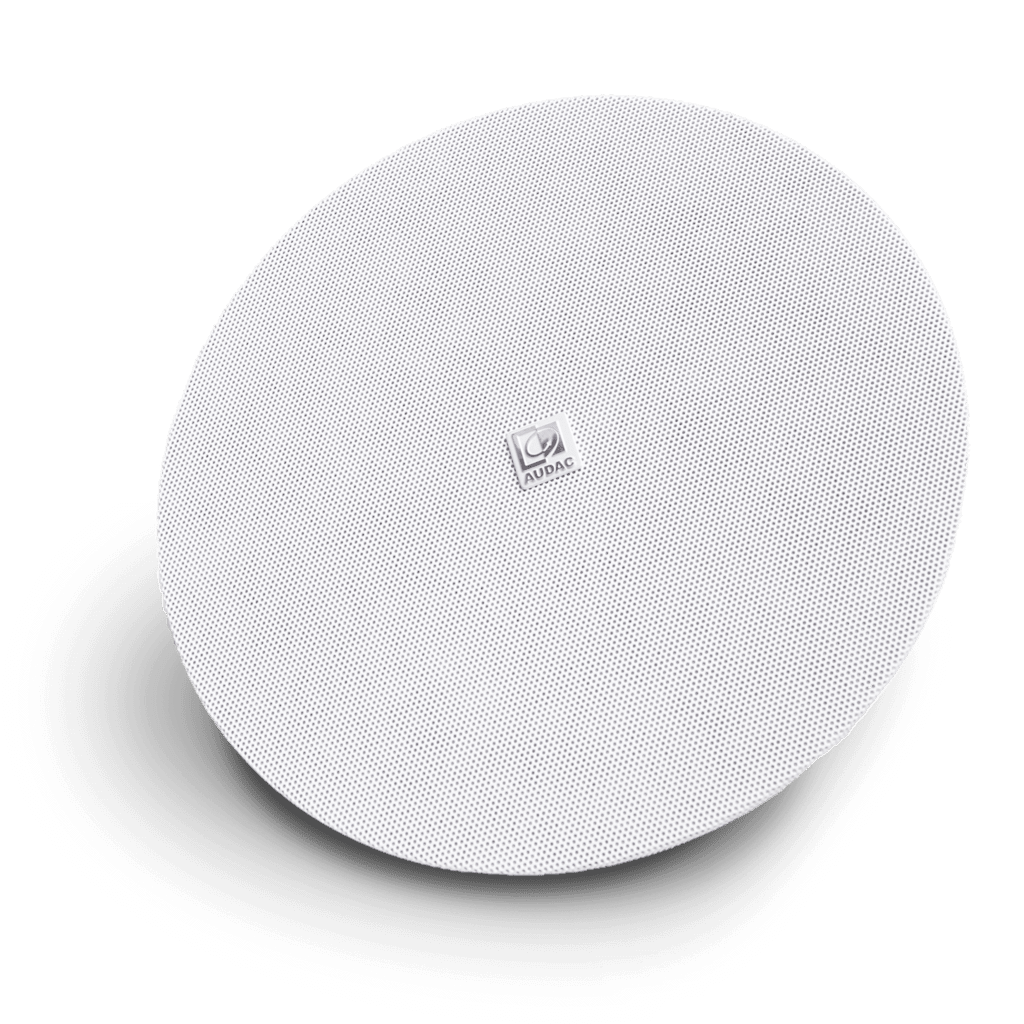

  • Front finish: borderless finely perforated steel grill
  • Built-in depth: 57 mm

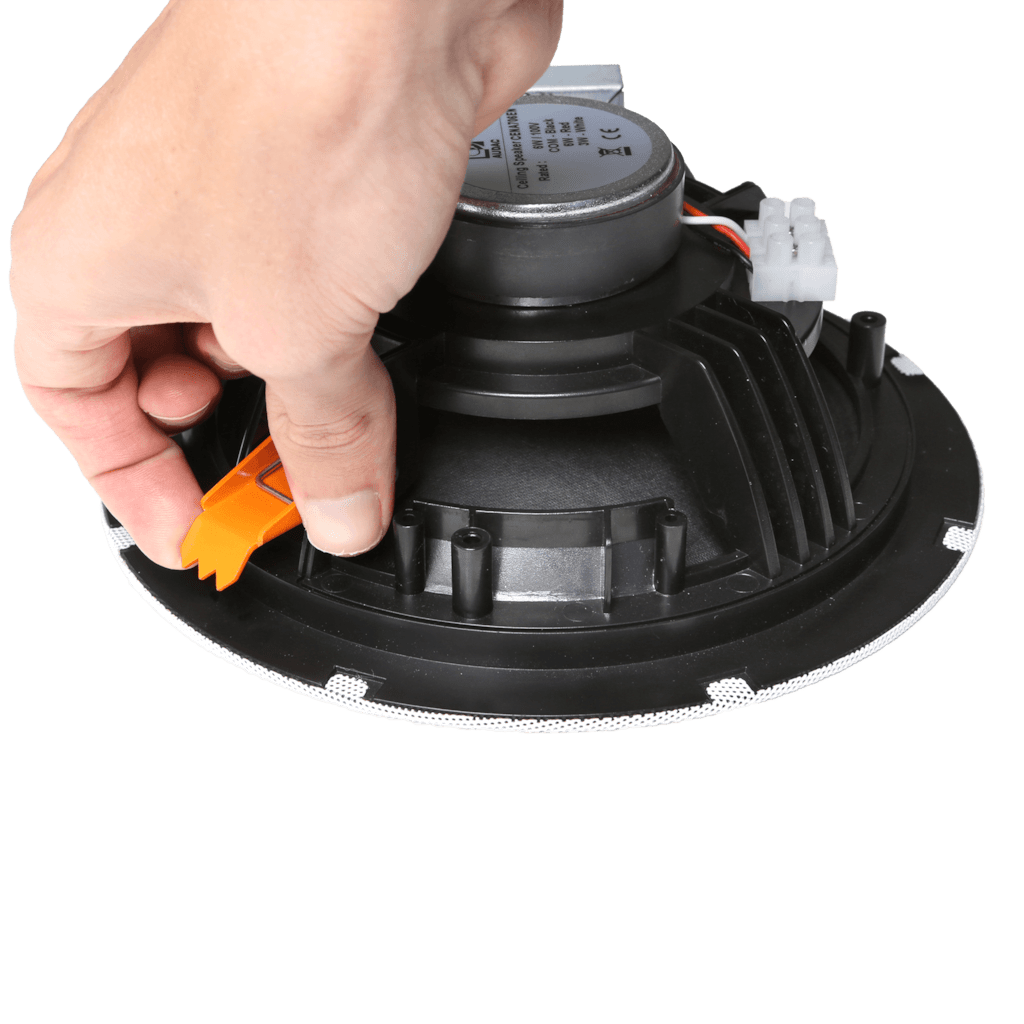

  • Mounting: SpringFit™ mounting system
  • Operating temperature: -15 °C ~ 55 °C
  • Weight:0.66 kg
