Audac ARES5A (Pair)

SKU: APA2021-00576
  • 36  Instalments
  • 2 years warranty
    2 Years Warranty

The ARES5A is a 2-way active speaker system consisting of an active and passive unit to be linked with each other. It offers an easy and flexible solution for a wide variety of applications.The 2-way loudspeaker is carefully constructed out of high quality components resulting in a 5 ¼” woofer and a...more

  • 36  Instalments
  • 2 years warranty
    2 Years Warranty
275 €

VAT included and Κανονικά Μεταφορικά

Upon Order
Add to cart
apa support icon

NEED HELP?

Our expert engineers can assist you!

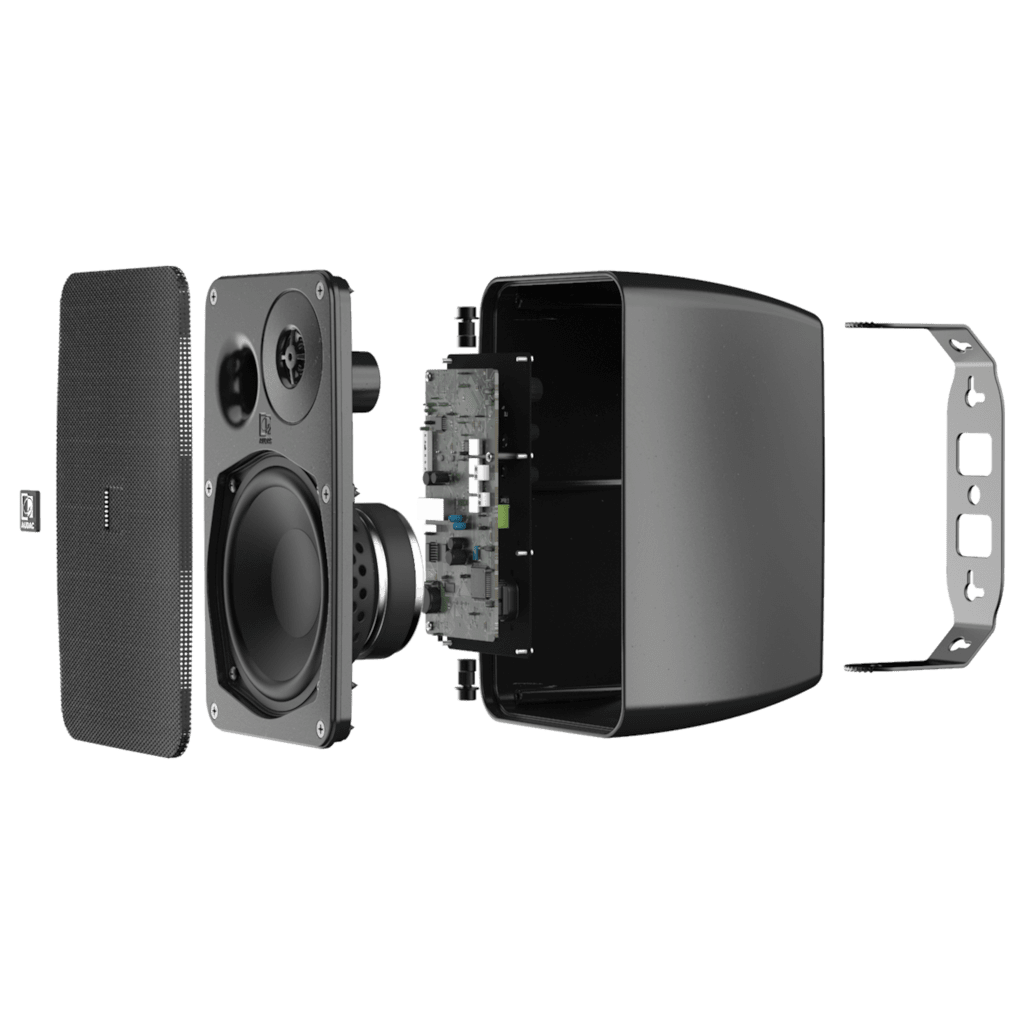

The ARES5A is a 2-way active speaker system consisting of an active and passive unit to be linked with each other. It offers an easy and flexible solution for a wide variety of applications.The 2-way loudspeaker is carefully constructed out of high quality components resulting in a 5 ¼” woofer and a ½” high frequency tweeter. This craftmanship in combination with an integrated DSP is creating an extremely clear and powerful sound experience for a wide range of applications.

The integrated amplifier can deliver a power of 2 x 40 Watt and includes a stereo line input which is implemented balanced and unbalanced, allowing convenient connection to any kind of audio source. Unbalanced audio sources are connected through a 3.5 mm jack connector, while balanced sources can be connected to the terminal block input connection allowing long signal runs without interference. A volume potentiometer allows the user to adjust the level of loudness while the two-band tone control allows equalization of treble and bass. The auto-standby mode reduces power consumption when no input signal is detected. The active speaker includes a stereo amplifier module, also delivering the input signal to the passive unit.

SYSTEM SPECIFICATIONS
RMS Power 2 x 20 W
Dynamic power 2 x 40 W
Sensitivity (1W/1m) 89 dB
Sound Pressure (Max. W/1m) 105 dB
Frequency Response (± 3 dB) 80 Hz - 20 kHz
Auto Standby mode (ENERGY STAR® compliant) Standby time 20 minutes
Power Supply 100 ~ 240 V AC / 50 ~ 60 Hz
Connector IEC C7/C8 power inlet
Connectors Remote control RJ45
Outputs Passive loudspeaker 2-pin Euro Terminal Block (Pitch - 5.08 mm)
Drivers HF 13 mm (PEI tweeter)
LF 5 1/4" (Polypropylene)
Dispersion Horizontal 210° (Average -6 dB / 100 Hz – 10 kHz)
Vertical 205° (Average -6 dB / 100 Hz – 10 kHz)
Power Consumption Nominal (1/8 MUP) 11.3 W
Standby < 0.35 W

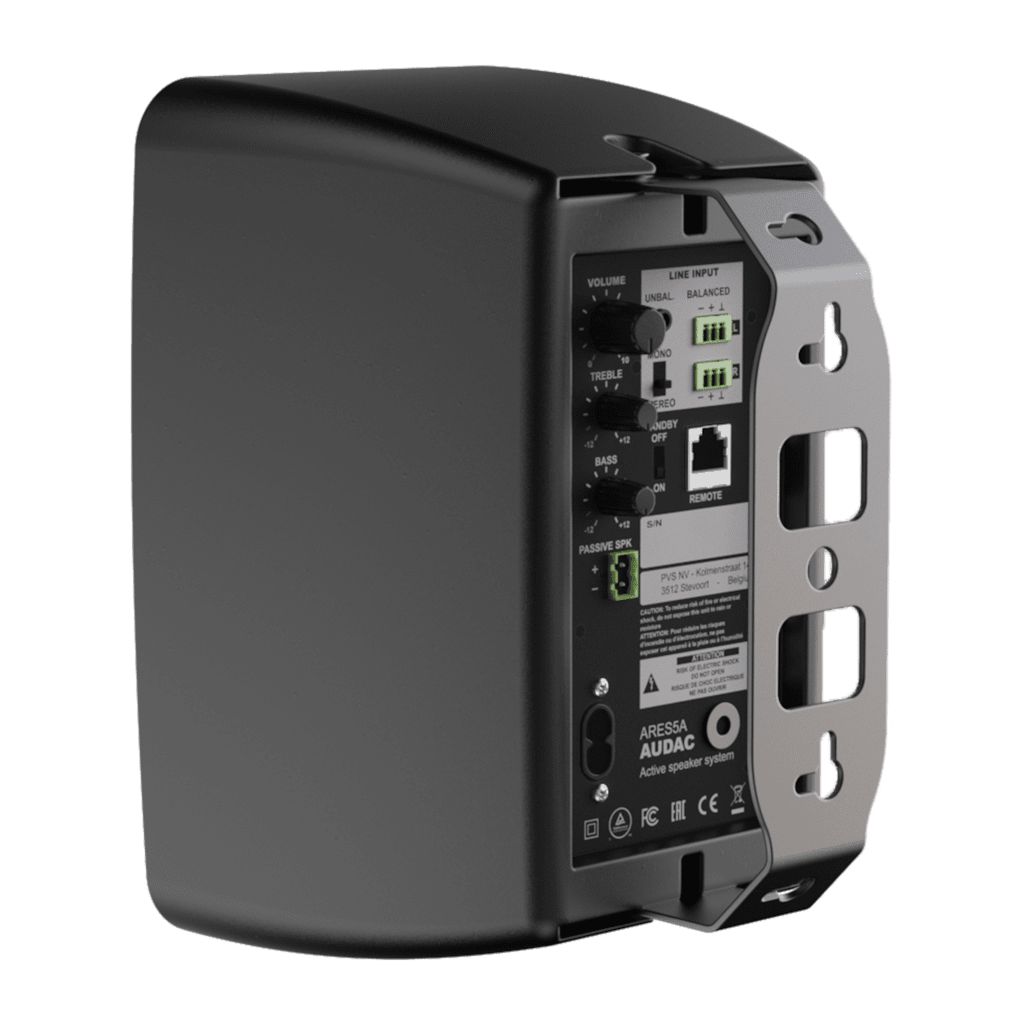

Inputs Balanced Stereo Connector 2 x 3-pin Euro Terminal Block (Pitch - 3.81 mm)
Unbalanced Stereo Connector 3.5 mm Jack (2x)
Remote Connector RJ45
PRODUCT FEATURES
Dimensions 150 x 240 x 146 mm (W x H x D) (excl bracket) & 150 x 240 x 194 mm (incl bracket)
Weight 3.5 kg (pair)
Colours Black (RAL9003)
White (RAL9005)
Construction ABS
Front finish Powder coated steel grill with lining
Bracket Powder Coated steel
Construction Impact & UV resistant ABS
Colours White (RAL9003) (ARES5A/W)
Black (RAL9005) (ARES5A/B)
Accessories Included Mounting bracket
Power cable
3.5 m connection cable speaker
Wall screws and plugs
