Audac WX302MK2 Black

SKU: APA2022-00638
  • 36  Instalments
  • 2 years warranty
    2 Years Warranty

The WX302 is a powerful 2-way performance speaker suitable for a wide variety of applications, ensuring true-to-nature, high fidelity reproduction of music and speech....more

  • 36  Instalments
  • 2 years warranty
    2 Years Warranty
88 ,7 €

VAT included and Κανονικά Μεταφορικά

Upon Order
Add to cart
apa support icon

NEED HELP?

Our expert engineers can assist you!

guide image

ONLINE GUIDE

Read our buyer's guide for Ηχεία

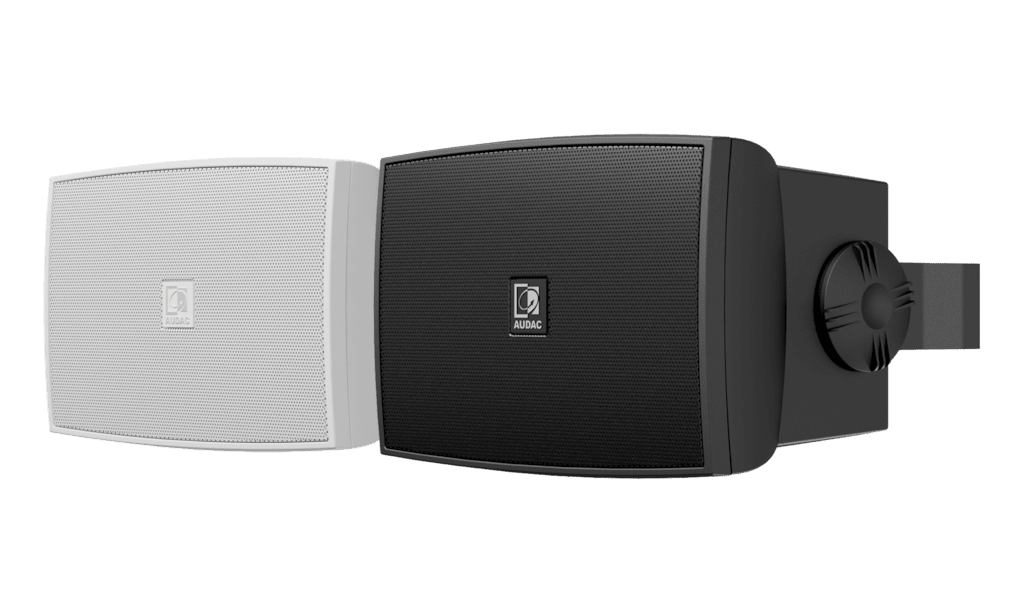

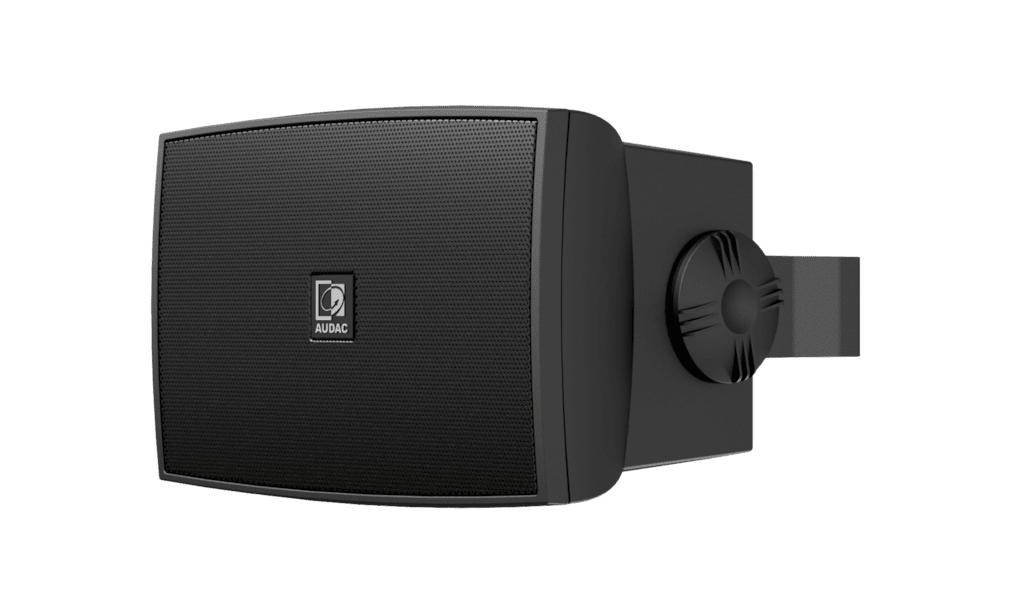

The WX302 is a powerful 2-way performance speaker suitable for a wide variety of applications, ensuring true-to-nature, high fidelity reproduction of music and speech. It is fitted with a 1” dome tweeter and a 3” low-frequency loudspeaker, capable of delivering a power of 30 Watt. It can be used in standard 8 Ohm systems but also in 70/100V PA systems with power taps for 20 Watt, 10 Watt and 5 Watt. The elegant shaped synthetic enclosure is available in two different colours (black and white), making it blend into any environment going from standard indoor home to special indoor design interiors. The included steel mounting bracket allows horizontal and vertical mounting as well as focusing of the speaker and an integrated advanced protection network protects the tweeter against overload.

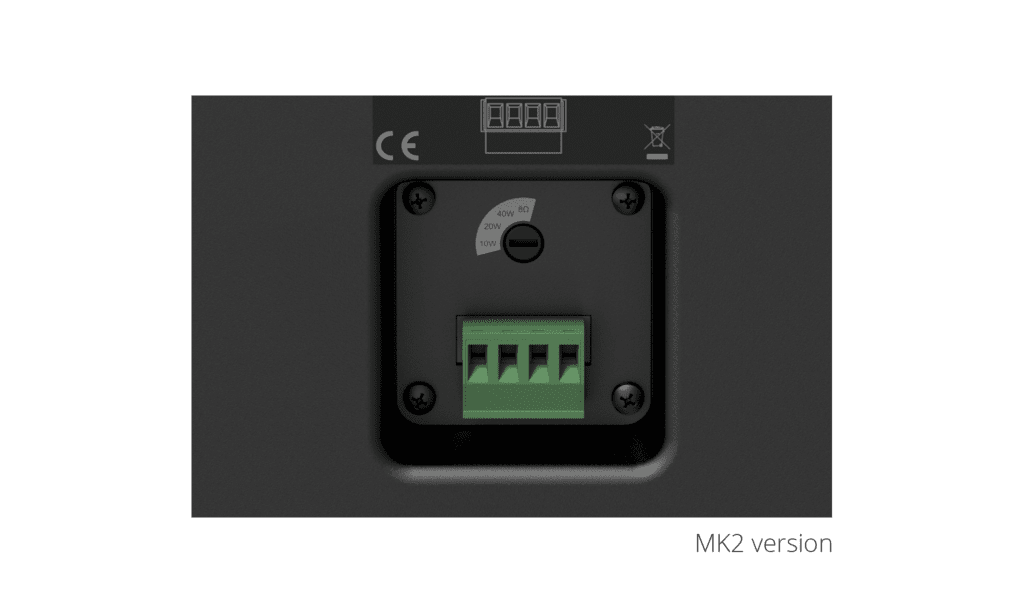

This new series retains all its strengths but has also been upgraded in a few specific areas with installer convenience and durability in mind. The connection of the indoor loudspeakers is changed to a terminal block, which makes it easier to install and connect the WX MK2 series wall speaker, while daisy-chaining is made more convenient through additional connection terminals (4-pin).. Both indoor and outdoor versions are now equipped with an elegant rotatable AUDAC logo.

Specifications

  • Crossover: Frequency: 2.5 kHz, Type: Passive built-in
  • Drivers:HF: 1”, LF: 3”
  • Frequency Range (-10 dB): 60 Hz - 20 kHz, Response (± 3 dB): 90 Hz - 18 kHz
  • Impedance: 8 Ω
  • Ingress Protection rating: IP40
  • Sensitivity (1W/1m): 85 dB
  • Sound Pressure (Max. W/1m) @: 100 V: 95 dB, @ 8 Ω 100 dB
  • Speaker type: 2-way
  • RMS/AES power handling: 30 W
  • Peak power handling: 120 W
  • Program power handling: 60 W
  • Dispersion Horizontal: 100°, Vertical: 100°
  • Line Transformer Tappings: 1:250 Ω - 100 V / Not used - 70 V / 20 W, 2 500 Ω - 100 V / 20 W - 70 V / 10 W, 3: 1000 Ω - 100 V / 10 W - 70 V / 5 W< 4:2000 Ω - 100 V / 5 W - 70 V / 2.5 W
  • Dimensions: 188.4 x 129 x 164.8 mm (W x H x D) (Incl. bracket)
  • Weight: 1.66 kg
  • Operating temperature: -25 °C ~ 70 °C
  • Construction: ABS
  • Mounting & handling: Mounting bracket
  • Front finish: Steel grill
  • Colours: Black (RAL9005) (WX302MK2/B), White (RAL9003) (WX302MK2/W)
  • Accessories: Included: Mounting bracket
