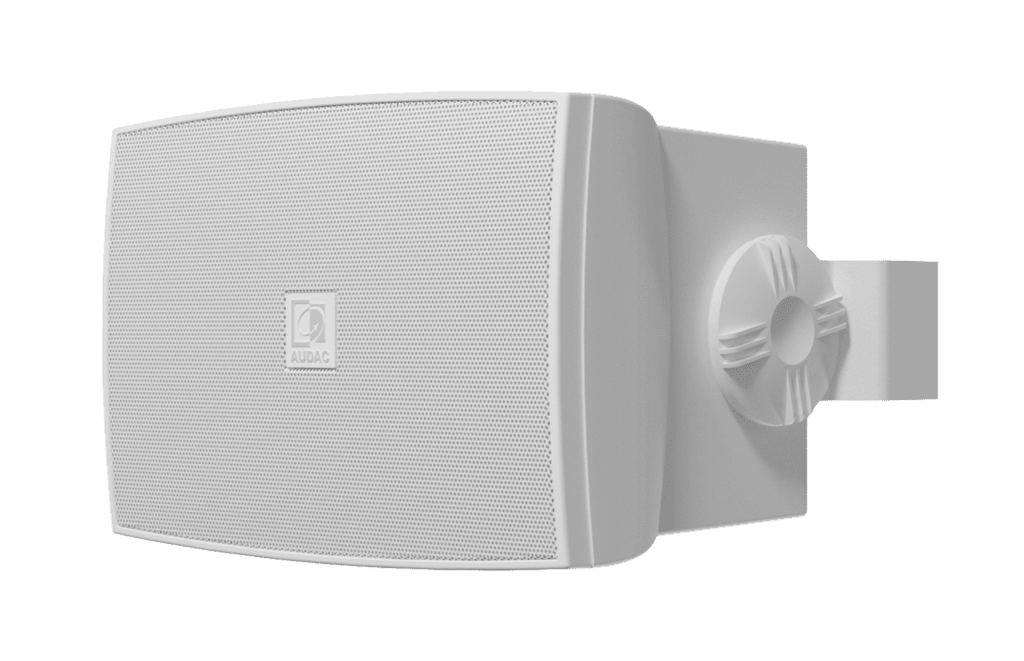

Audac WX502MK2 White

SKU: APA2022-00635
  • free shipping icon
    Free Shipping
  • 36  Instalments
  • 2 years warranty
    2 Years Warranty

The WX502 is a powerful 2-way performance speaker suitable for a wide variety of applications, ensuring true-to-nature, high fidelity reproduction of music and speech....more

  • free shipping icon
    Free Shipping
  • 36  Instalments
  • 2 years warranty
    2 Years Warranty
128 €

VAT included and Free Shipping

Available in warehouse (Delivery 1-3 days)
Add to cart
apa support icon

NEED HELP?

Our expert engineers can assist you!

guide image

ONLINE GUIDE

Read our buyer's guide for Ηχεία

The WX502 is a powerful 2-way performance speaker suitable for a wide variety of applications, ensuring true-to-nature, high fidelity reproduction of music and speech. It is fitted with a 1” dome tweeter and a 5 1/4”low-frequency loudspeaker, capable of delivering a power of 50 Watt. It can be used in standard 8 Ohm systems but also in 70/100V PA systems with power taps for 40 Watt, 20 Watt and 10 Watt.

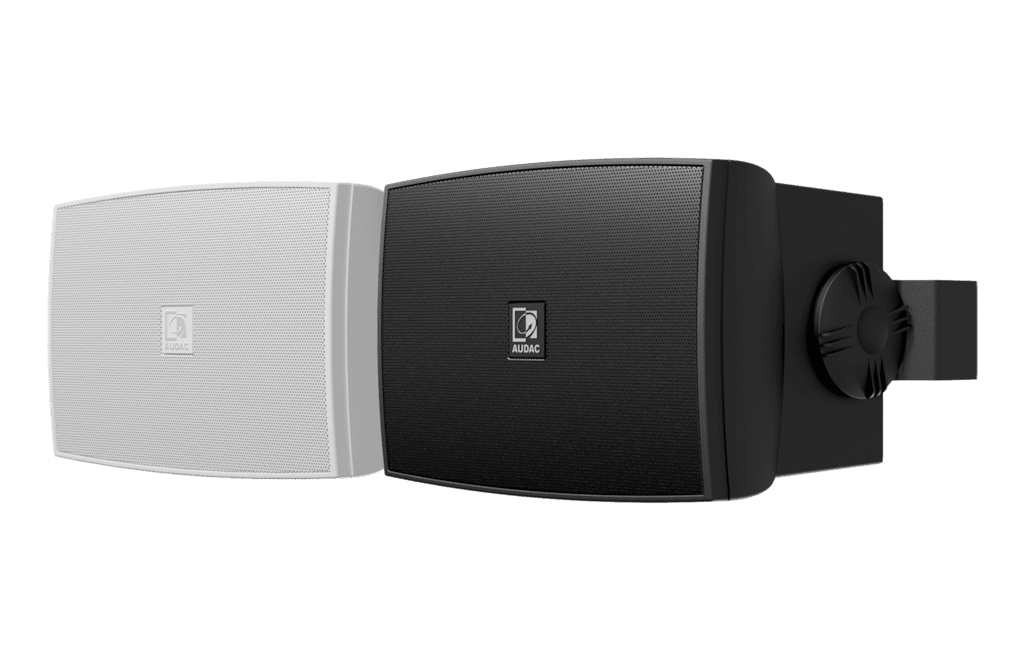

The elegant shaped synthetic enclosure is available in two different colours (black & white), making it blend into any environment, going from standard indoor home to special indoor design interiors. The included steel mounting bracket allows horizontal and vertical mounting as well as focusing of the speaker and an integrated advanced protection network protects the tweeter against overload. This new series retains all its strengths but has also been upgraded in a few specific areas with installer convenience and durability in mind.

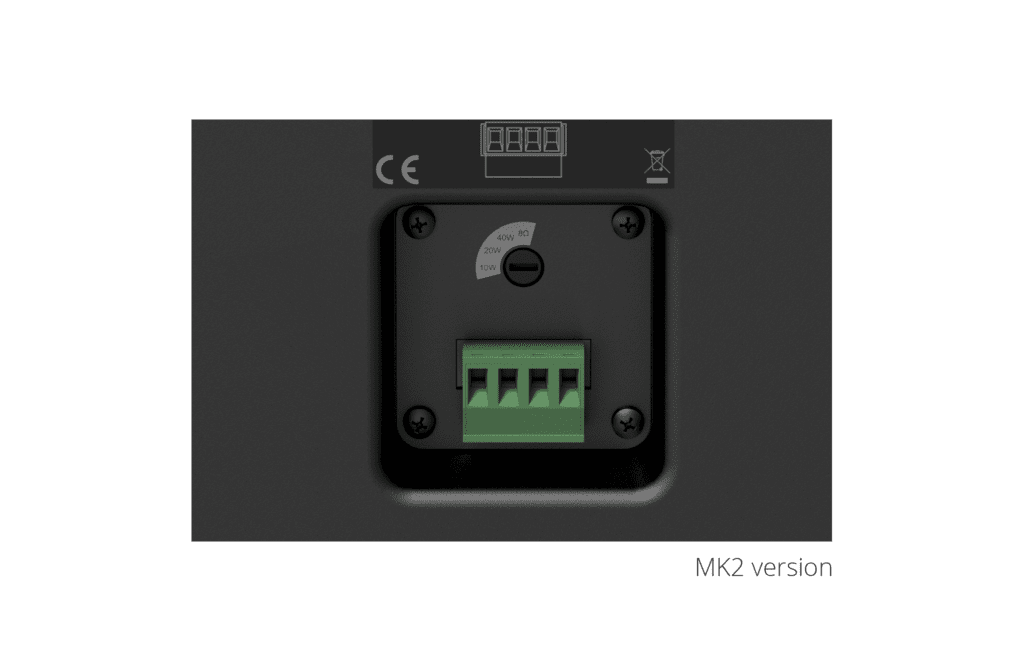

The connection of the indoor loudspeakers is changed to a terminal block, which makes it easier to install and connect the WX MK2 series wall speaker, while daisy-chaining is made more convenient through additional connection terminals (4-pin).. Both indoor and outdoor versions are now equipped with an elegant rotatable AUDAC logo.

Specifications

  • 1" Dome tweeter
  • 5 1/4" low frequency loudspeaker
  • Vertical and horizontal mounting
  • 100V and low impedance connection possibility
  • Multi-tapping 100V line transformer
  • Aluminum mounting bracket
  • Crossover: Frequency: 2.5 kHz, Type: Passive built-in
  • Drivers: HF: 1”, LF: 5”
  • Frequency: Range (-10 dB): 55 Hz - 20 kHz, Response (± 3 dB): 70 Hz - 18 kHz
  • Impedance: 8 Ω
  • Ingress Protection rating: IP40
  • Program power handling: 100 W
  • Sensitivity (1W/1m): 87 dB
  • Sound Pressure (Max. W/1m): @ 100 V 102 dB, @ 8 Ω 104 dB
  • Speaker type: 2-way
  • RMS/AES power handling: 50 W
  • Dispersion Horizontal: 110°
  • Vertical: 110°
  • Line Transformer Tappings 1 125 Ω - 100 V / Not used - 70 V / 40 W, 2 250 Ω - 100 V / 40 W - 70 V / 20 W, 3 500 Ω - 100 V / 20 W - 70 V / 10 W, 4 1000 Ω - 100 V / 10 W - 70 V / 5 W
  • Dimensions: 219 x 146 x 184.4 mm (W x H x D) (Incl. bracket)
  • Weight: 2.75 kg
  • Operating temperature: -25 °C ~ 70 °C
  • Construction ABS
  • Mounting & handling Mounting bracket
  • Front finish Steel grill
  • Colours Black: (RAL9005) (WX502MK2/B)
  • White (RAL9003) (WX502MK2/W)
  • Accessories Included Mounting bracket
