Warm Audio WA-DI-A2
SKU: APA2026-01206
-
Free Shipping -
12
Interest FreeInstalments
-
2 Years Warranty
-
Free Shipping
-
12
Interest FreeInstalments
-
2 Years Warranty
409 €
Upon Order
Notify me when the product is available
Add to cart
34,08 € / month
The denoted price refers to ordering with instalment and paying via credit card (Visa, Mastercard). VAT is factored in in instalment prices.
List
Related products
Warm Audio Active Direct Box
Whether you play guitar, bass, keyboards or another stringed instrument, you'll need a direct box that won't diminish your instrument's tone, like the Direct Box Active and Direct Box Passive from Warm Audio. Built around world-famous CineMag USA Transformer topology and engineering, like no other DI Boxes in the world. Constructed with top-tier discrete components housed in rugged aluminum chassis' that include switches, knobs and connectors that are all designed to withstand heavy abuse on the road or in the studio.
Made With USA Custom CineMag Transformers
Every aspect of our direct boxes are designed for maximum sonic integrity, from the custom-wound CineMag USA transformer to the rugged metal knob and switches. You can expect warm, rich tone even after long cable runs, and the extruded aluminum enclosure ensures a long life span. When you need to convert an instrument-level signal to mic-level, with sonic quality as your top priority, you'll be well-served with the Direct Box Active and Direct Box Passive from Warm Audio.
New DI Box Experience
Warm Audio DI boxes offer the rare versatility of having an onboard variable pad knob which attenuates your input signal all the way from -3dB to -30dB, which will easily tame any instrument input source.
Both of our Direct Boxes offer a Thru-put jack that is jumpered to the input jack. It is a convenience jack allowing you to send your instrument's signal to a second place in addition to the live mixer or recording device. Our Direct Boxes can also take a recorded signal at line level and send it to another line input while simultaneously sending signal out of the XLR mic level output of the Direct Box.
Typical Applications For A DI Box
Connecting electronic instruments such as guitar, bass, keyboard, or drum machines directly to a PA or recording system. Simply put, a DI box converts the high impedance, unbalanced output signals to low impedance, balanced output signals. By doing so, the instrument signals are now converted to the proper voltage level for the PA or recording system - which greatly reduces and/or eliminates connections which could cause tonal shifts and distortion.
Passive Or Active?
Direct Box Active is best for instruments with passive pickups, especially acoustic instruments. The Direct Box Active can also operate in "passive" mode. Direct Box Passive is best for balancing the signal of instruments with active electronics, but still performs extremely well on passive pickups by producing a frequency range that exceeds the bandwidth of most passive DI boxes on the market.
Active Specifications
POWER (ACTIVE ONLY): 48V PHANTOM OR TWO 9V BATTERIES. CAN ALSO BE USED PASSIVELY
CUSTOM-WOUND CINEMAG USA OUTPUT TRANSFORMER
CONVERTS INSTRUMENTS TO MIC-LEVEL SIGNALS WITHOUT SIGNAL DEGRADATION
IDEAL SOLUTION FOR PLUGGING YOUR INSTRUMENT DIRECT INTO ANY MIC PRE
TOP-QUALITY CLASS A COMPONENTS WITH GOLD-PLATED TRACES ON CIRCUIT BOARD
RUGGED ALUMINUM CONSTRUCTION
PAD: VARIABLE FROM -3 TO -30DB
BALANCED OUTPUT: 600 OHMS, MIC LEVEL
INPUT IMPEDANCE: 1 MEG OHMS
OUTPUT CONTROL
THD: .01% FROM 20HZ TO 100HZ. LESS THAN .004% FROM 100HZ TO 20KHZ
FREQUENCY RESPONSE: 20HZ TO 70KHZ +/- 0.5DB
173 €
Radial J48
The Radial J48 has been designed from the ground up to deliver the most natural tone. As a direct box manufacturer, we do not believe it is our task to alter the sound of your prized '1962 Fender Jazz Bass', but retain and transfer the true character of the instrument to the mixing console without adding distortion or introducing artifact. This design philosophy has gained a tremendous following from many of the world's most demanding musicians.Using only 48V phantom power, the Radial J48 is an active direct box that produces an exceptionally linear response that extends from 20Hz up to well above 40kHz. Low distortion of all types is achieved via a unique digital switching power supply that raises the internal operating rail voltage for added headroom and improved signal handling. The results are truly amazing. The J48 delivers an ideal even-order harmonic cascade and a sonic performance that outperforms DIs costing several hundreds more.And like all Radial products, the J48 is both feature-rich for studio and made tough to handle the road. This includes a -15dB input pad to tame extra loud signals, 180º polarity reverse for feedback control on stage and a ground lift to help reduce hum & buzz caused by ground loops. Special features include a merge function that elegantly mixes left-right signals to mono without phase cancellation. To minimize resonant feedback with acoustic instruments, the J48 is also equipped with an 80Hz high-pass filter (low-cut). When engaged, this also increases headroom by eliminating unneeded bass frequencies.Radial's innovative book-end design protects switches and connectors from abuse while the internal I-beam construction eliminates stress on the PC board. This serves to reduce solder joints from going 'cold' and delivers trouble-free performance for years. A full-bottom no-slip pad provides mechanical and electrical isolation while providing plenty of 'stay-put' for rockin' stages!The Radial J48 is used by artists as diverse as acoustic guitarist Tommy Emmanuel; super-star engineer Joe Chiccarelli; and one of the most successful bands of all time Fleetwood Mac. The Radial J48… the world's finest 48V phantom powered active direct box.Features:Ultra low distortion of all typesExceptional headroom & dynamic rangeRetains instrument's natural soundPowered by 48V phantom
295
,9 €
Radial J33
The Radial J33 is a combination phono preamplifier and purpose built stereo direct box made to handle the rigors of the professional recording studio and the abusive environment of live touring. But don't let the tough exterior fool you… the J33's sonic performance will easily surpass many audiophile preamps costing much more. The Radial J33, a high performance turntable preamp that is ideally suited for music playback, archiving, DJing and sampling.Designed specifically for dynamic cartridges, the J33 begins with a low noise front end. Inputs are standard RCA with the required turntable ground lug. A precise RIAA low pass filter is tailored to produce a smooth, warm response. The signal is then buffered to provide the audio system with a standard -10dB signal with choice of RCA connectors for compatibility with home HiFi entertainment systems, 3.5mm (1/8") output to feed a laptop or iPod, or a stereo TRS ¼" jack for an audio recorder. A second set of direct box XLR outputs deliver a mic level signal to feed a concert snake, mic splitter and mixing desk preamp inputs. A rumble filter is also available for high sound pressure environments to reduce bothersome resonant feedback.As with all Radial DIs, the J33 features a 14 gauge steel enclosure with a unique book-end design that creates a protective zone around the switches and connectors. The internal I-Beam construction ensures maximum rigidity while ensuring minimal stress on the sensitive solder joints. These combine to provide exceptional shielding against noise while ensuring greater dependability in the most demanding environments.Features:Combination RIAA Phono preamp and DI boxStereo RCA, ¼" TRS, 3.5mm and XLR outputsBuilt -in low frequency rumble filterChoice of 48V phantom or DC supply
306
,9 €
ARX Pro DI Duo
A flexible, compact Active Direct box, with normal High Impedance input as well as a separate speaker level input for connection to an aux speaker output on the back of instrument amplifiers. Heavy duty all-steel chassis finished in attractive matt textured polyurethane, with hardwearing epoxy screen printing and slip resistant rubber pad. Features include –20 dB Pad and Audio Ground Lift switches, plus Phantom or 12V DC power options. Security features include Kensington®-type computer lock slot and optional bracket kit for under-table mounting.
Specifications:
Max Input Level +12 dB Phantom powered, +8 dB using 12 VDC Power Supply.
Input Impedance 1 Meg Ohm
Max Output Level (nominal) +12 dB 10K Ohm load using Phantom power +11 dB 600 Ohm load using 12 VDC Power Supply
Output Impedance 680 Ohms Balanced
Output Signal to Noise -100 dB unweighted, -104 dB A weighted
Dynamic Range 112 dB 10K Ohm load using 12 VDC Power Supply
Distortion @100 Hz 0.0025%, @1KHz 0.0026%, @10KHz 0.0033%
Frequency Response 20Hz to 20KHz, ± 0.2 dB
Gain through Unit 6dB (Normal input, Pad switch out)
Power Requirements 48V Phantom power on XLR pins 2 and 3; 12-15V DC from external supply
Pad Switch -20 dB attenuation
Speaker Input -40 dB attenuation, equivalent to 100:1 decrease in input level., -60 dB attenuation available when Pad switch also enabled
Input Connectors Insulated jacks
Output Connector 3 pin XLR. Wired Pin 1 Ground, Pin 2 + Hot, Pin 3 - Cold. Audio Ground (Pin 1) lift switch fitted
Construction All-steel powdercoated chassis, fibreglass PCB
245 €
Radial PZ-DI
The Radial PZ-DI is a unique direct box that is specifically designed for acoustic and orchestral instruments. Unlike most direct boxes that are limited to a 'one size fits all' design, the PZ-DI lets you properly match the input impedance to the source to optimize the frequency response, dynamics and feel so that no matter what type of pickup you employ, you will enjoy smoother, more musically pleasing results.The design begins with a 3-position load adjustment switch: The 1 meg-ohm position delivers the classic impedance found on most active DI boxes. The 220k-ohm setting warms up the tone of a magnetic pickup to give you the feel and tone as if connected to a tube amplifier. The ultra-high 10 meg-ohm impedance is used to compensate for the harsh, squawky tone that usually plagues piezo-equipped instruments. This is followed by a fully variable high-pass filter that lets you 'size the instrument' by gently rolling off bass frequencies to eliminate unwanted resonance. You could for instance, retain the low frequencies on a cello or increase the cut-off point to better suit a violin. For active instruments such as acoustic guitars that incorporate a battery powered preamp, you can engage a low-pass filter to gently soften the hard edge for a smoother more natural tone.To maximize signal handling and reduce distortion, the PZ-DI incorporates an innovative DC to DC switching supply that converts the phantom power to deliver extra headroom. This provides ample dynamic range for acoustic instruments. Should an extra loud source such as an active bass or digital keyboard be encountered, simply activate the -15dB pad to satisfy the situation. Other problem solvers include a 180° polarity reverse switch to tame hot spots on stage that can cause feedback and a ground lift switch to help eliminate hum and buzz caused by ground loops.The Radial PZ-DI is a ground breaking direct box that can instantly adapt to all types of pickups so that you can enjoy the full frequency response and dynamics of an orchestral string instrument, smooth-out the peaks of bluegrass fiddle, banjo or mandolin, split off a bass guitar without excessive loading, or naturally amplify an acoustic guitar without the usual tone-altering effects.Features:Optimized for orchestral instruments on a live stageAdjustable load for piezo and magnetic pickupsVariable low-cut filter to control bass resonance48V phantom powered, does not require batteries
339
,9 €
Mackie MDB-1A
From acoustic guitars to laptops, always sound your best with MDB Series Direct Boxes. Available in four different models, the MDB Series will give you the peace of mind that your sound will faithfully get to your audience the way that you hear it on stage. Direct boxes are an essential tool for any stage or studio.They make it easy to get clean, low-noise audio to a mixer no matter what instrument you are using. Available in four versatile models, our ultra-affordable DI's offer the Mackie sound quality that you expect with Built-Like-A-Tank™ construction for maximum reliability. From acoustic guitars to laptops, be ready for anything with MDB Series direct boxes.Specifications:Connect an instrument such as a guitar, bass, or keyboard to a microphone preampConverts a high-impedance, unbalanced 1/4" input to a low-impedance, balanced XLR mic-level output1/4" thru jack for routing to an amplifier-20 dB pad prevents overloading when accepting signal from a loud sourceGround-lift switch minimizes humActive design operates on phantom power
82 €
Rupert Neve Designs RNDI-S
An expanded two-channel version of our best-selling RNDI, providing massive tone & headroom for all of your instruments & stereo sources.
The RNDI-S’ signature sound is the product of custom Rupert Neve Designs transformers and class-A biased, discrete FET amplifiers. The carefully orchestrated union of these two elements is key to the unique response of the RNDI-S, delivering a powerful and vibrant direct sound capable of reproducing the full harmonic depth of basses, guitars, keyboards, acoustic instruments, professional line-level sources and consumer devices with a 3.5mm jack. With portable, powerful, larger-than-life tone, the RNDI-S is ready to make your stereo or mono direct sources shine.
Technical Specifications:
Custom Rupert Neve Designs transformers for rich, powerful tone
Exceptional performance with any instrument
Unrivaled clarity from discrete FET amplifiers
Drives long lines with minimal loss
Rugged steel frame built for life on the road
Powered by dual 48V phantom power
Excellent phase coherence at all frequencies
709
,5 €
Two-channel active DI box with CineMag transformers

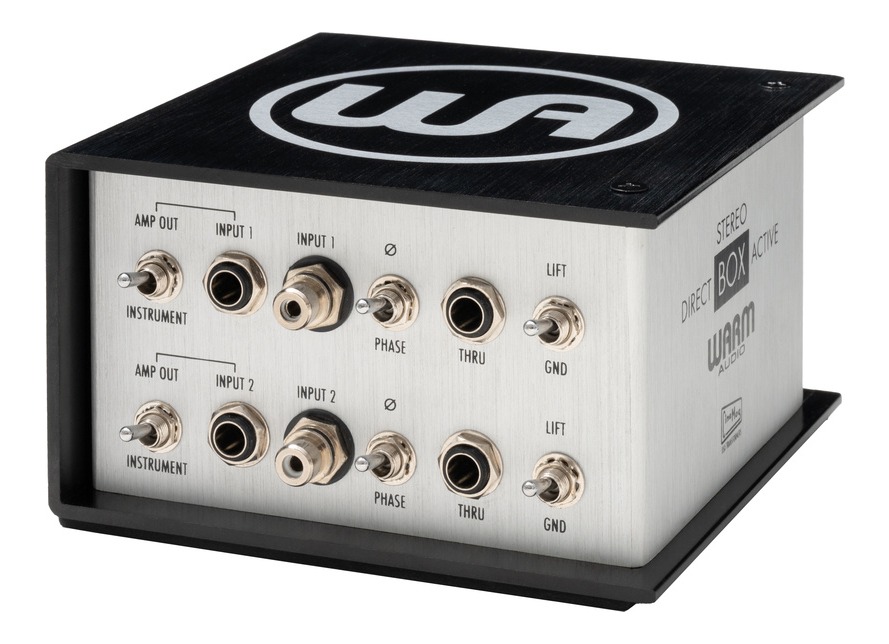

The Warm Audio WA-DI-A2 is a two-channel (stereo) transformer-balanced active DI box that converts high-impedance instrument signals into balanced mic-level signals. It is ideal for stereo keys and synths, two guitars or basses at once, in the studio and on stage.
Preserve your tone
Inside is 100% Class-A circuitry with premium components, but the stars of the show are the custom CineMag USA output transformers, one per channel. They preserve the analog character of your instrument and signal chain before it reaches the mixer or interface, and allow long cable runs without losing level, tone or high-frequency detail.
Full control on every channel

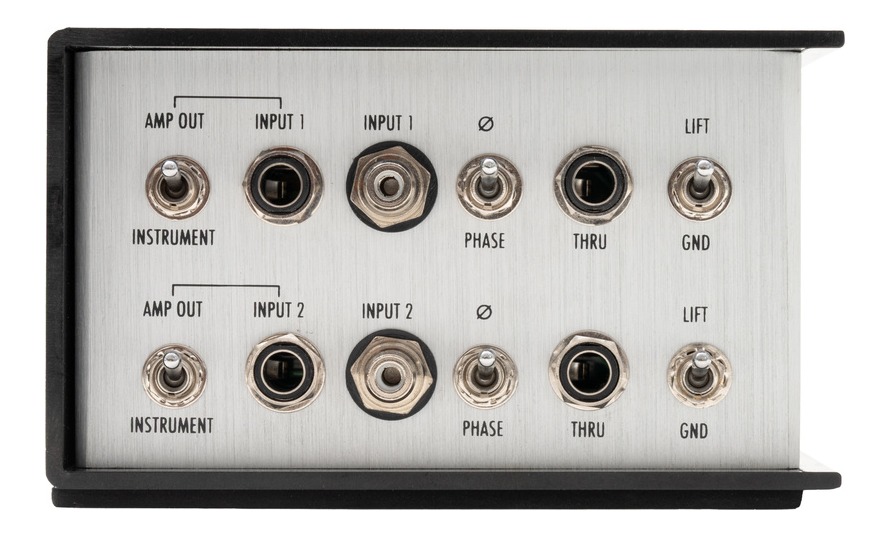

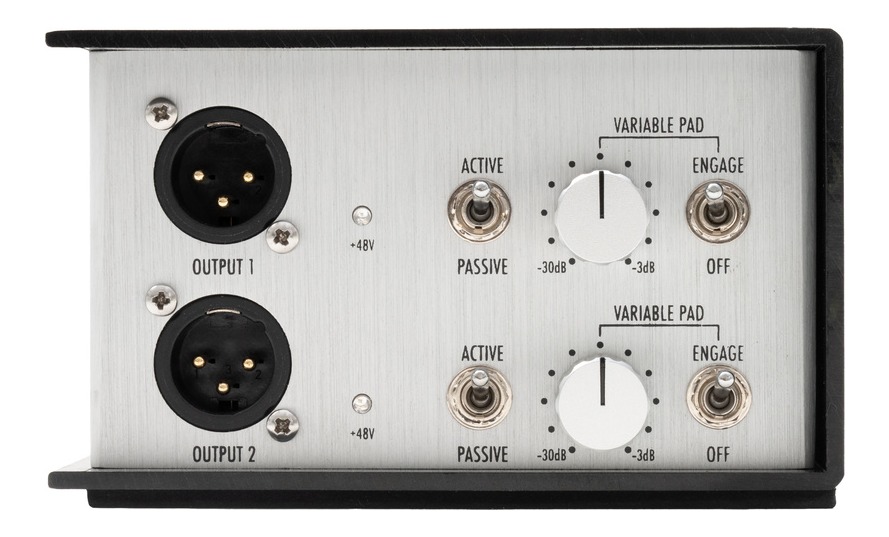

Each channel has a variable -3 to -30 dB pad to set the right level, a ground lift switch to eliminate ground-loop hum, a phase switch and an Instrument / Amp Out selector for connecting straight from an amp's speaker output (always with a cabinet connected to the Thru jack). The Active/Passive switch lets you also use each channel as a passive DI, and LEDs show whether 48 V phantom power is present.
Built for the road and the studio
The WA-DI-A2 is powered by 48 V phantom power from the mixer or interface. Its rugged two-piece aluminium chassis is built for years of touring, and every unit is hand-tested in Austin, Texas.
Specifications
- Two-channel (stereo) transformer-balanced active direct box
- Custom CineMag USA output transformer on each channel
- Class-A circuitry with gold-plated PCB traces
- Variable pad: -3 to -30 dB
- Ground lift, phase and Instrument / Amp Out switches
- Active/Passive switch per channel, phantom indicator LEDs
- Power: 48 V phantom (can also be used passively)
- Output: balanced, 600 Ω, mic level
- Input impedance: 1 MΩ
- THD (active): 0.01% from 20 to 50 Hz, < 0.003% from 50 Hz to 20 kHz
- Frequency response: 10 Hz - 100 kHz ± 0.5 dB
- Aluminium chassis
- Dimensions: 127 x 140 x 71 mm
- Weight: 0.80 kg
