Van den Hul 5C Hybrid (Halogen Free) interconnect
SKU: APA2019-00757
-
36 Instalments
-
2 Years Warranty
Low priced and exhibiting an excellent price-to-performance ratio The BAY C5 HYBRID has been specially designed for general purpose and car hi-fi interlink applications.The BAY C5 HYBRID however is also perfectly suited for internal (pre)amplifier and mixing console wiring applications and as an unb...more
-
36 Instalments
-
2 Years Warranty
9 €
VAT included and Κανονικά Μεταφορικά
Upon Order
Notify me when the product is available
Add to cart
Add to Wishlist
Low priced and exhibiting an excellent price-to-performance ratio The BAY C5 HYBRID has been specially designed for general purpose and car hi-fi interlink applications.The BAY C5 HYBRID however is also perfectly suited for internal (pre)amplifier and mixing console wiring applications and as an unbalanced patchbay interconnect.

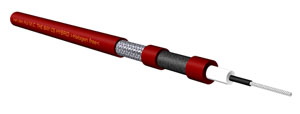

The design combination of a superior transmission quality, a low conductor-conductor capacitance, a very high screening factor together with a high mechanical flexibility and a long durability, though not being easy to manage, successfully has been achieved.The high quality conductor material used in this cable is large crystal OFC with a dense silver coating.
*Price per meter,not terminated.Call/email us for termination cost.
TECHNICAL SPECIFICATIONS:
| Conductor Material: | HYBRID: Large Crystal OFC with a dense Silver coating + Linear Structured Carbon ® saturated layer(s) |
| Design Purpose/ Application Area(s): | General purpose and car hi-fi interlink / Internal (pre)amplifier and mixing console wiring / Unbalanced patchbay interconnect |
| Eff. Conductor Ø/Eq. AWG No./Strands: | Core: 0.452 mm² / Core: AWG 20.6 / Core: 40; Screen: 96 |
| External Diameter / -Dimensions: | 5.2 mm. |
| Resistance 20 °C / 68 °F: | Core: 3.8 Ohm/100 m.; Screen: 1.6 Ohm/100 m. |
| Capacitance: | 110 pF/m. |
| Insulation / Dielectric Strength / Test Voltage: | Core: PE foam; Jacket: HULLIFLEX ® / 300 Vrms min. |
| Connector Types Suitable: | Our RCA type C - 5.5; Neutrik 4.4 mm., 3-pole Bantam (TT) patchbay plug; Custom mountable on ordered lengths. |
