Audio Technica AT-XP7

SKU: APA2022-11219
  • free shipping icon
    Free Shipping
  • 36  Instalments
  • 2 years warranty
    2 Years Warranty

DescriptionThe AT-XP7 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 6.0 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the reco...more

  • free shipping icon
    Free Shipping
  • 36  Instalments
  • 2 years warranty
    2 Years Warranty
199 €

VAT included and Free Shipping

Upon Order
Add to cart
apa support icon

NEED HELP?

Our expert engineers can assist you!

Description

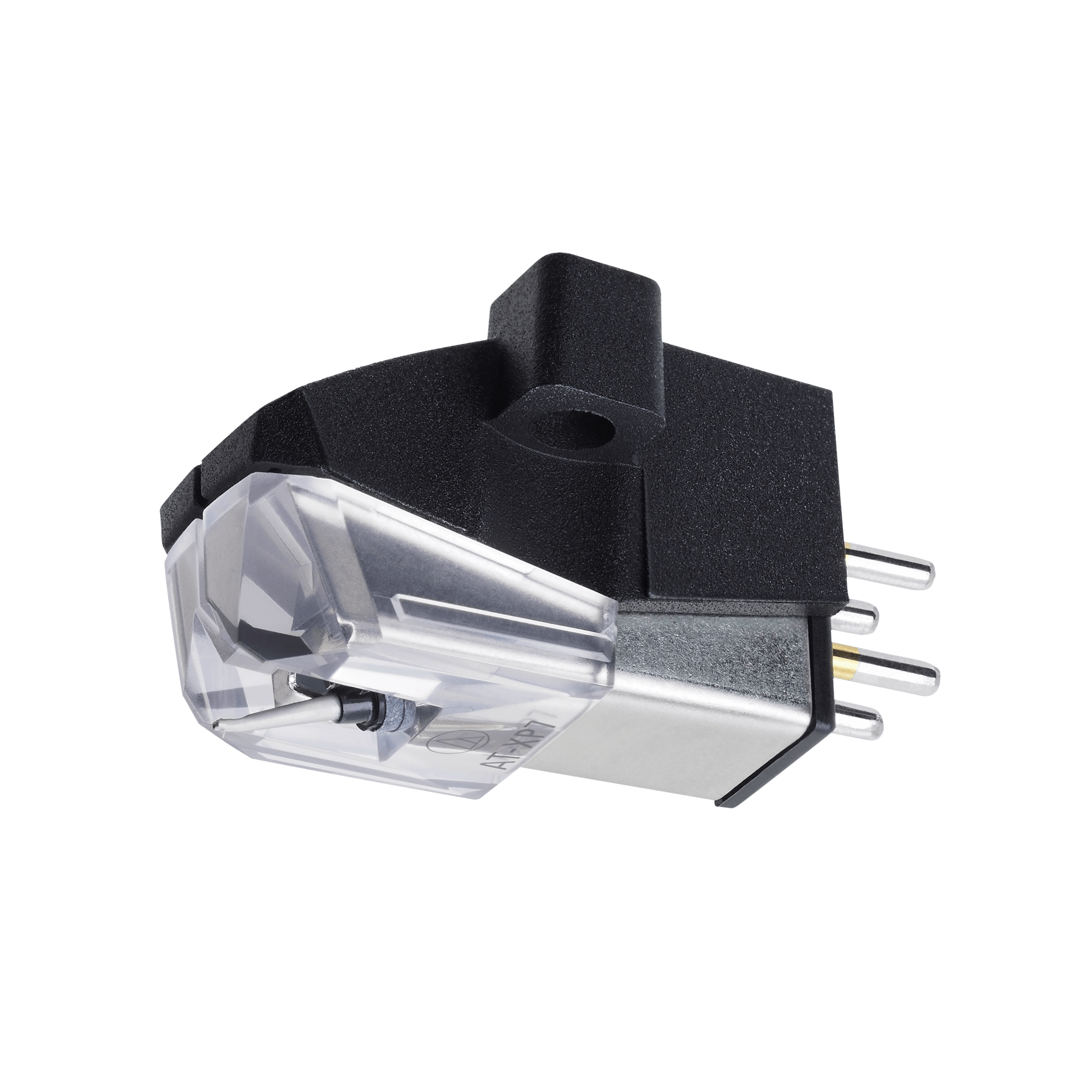

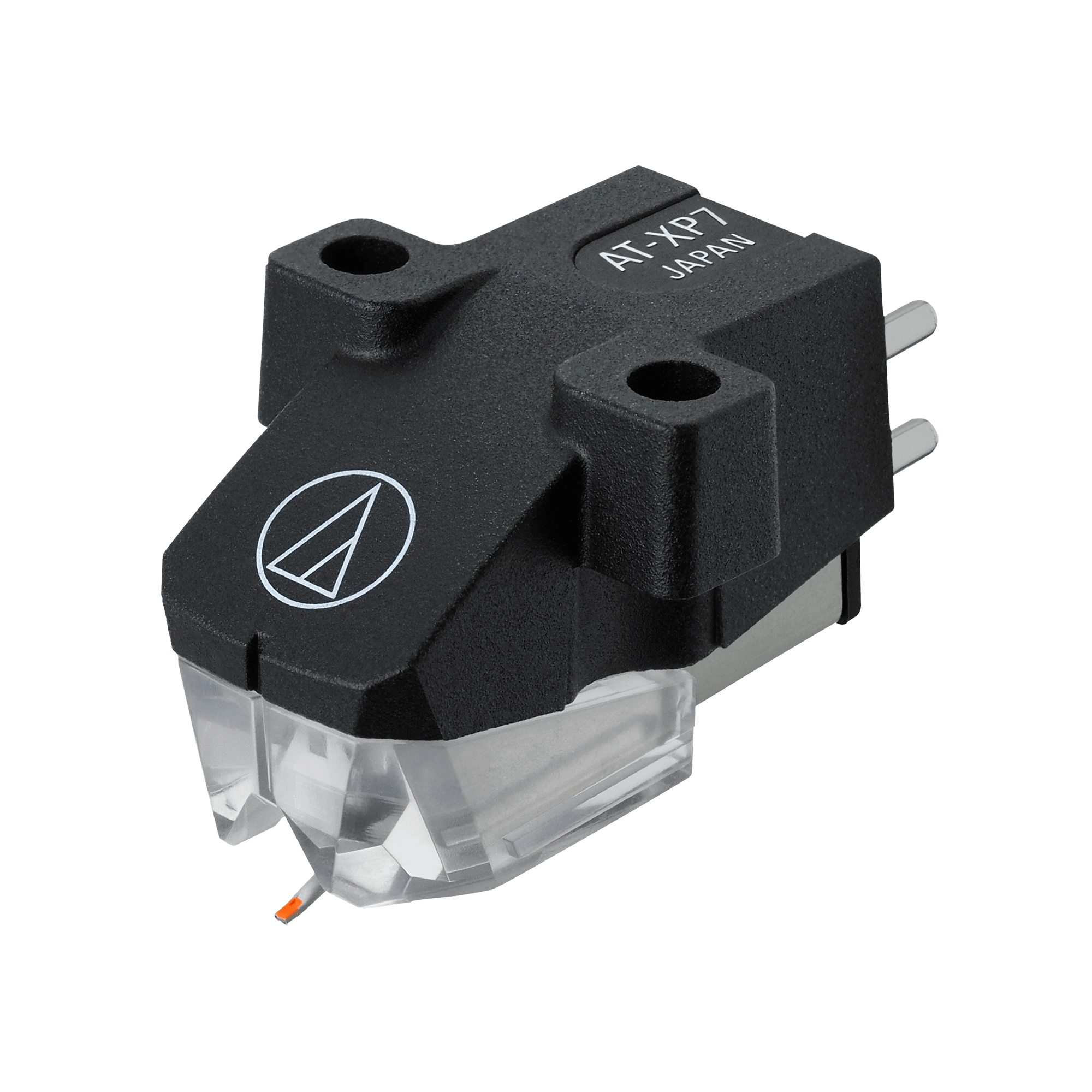

The AT-XP7 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 6.0 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.


Specifications

  • Frequency Response: 20 - 20,000 Hz
  • Channel Separation: 22 dB at 1kHz
  • Vertical Tracking Angle: 20°
  • Vertical Tracking Force: 2.0 to 4.0 g (standard 3g)
  • Stylus Construction: Bonded Round Shank
  • Recommended Load Impedance: 47,000 ohms
  • Coil Inductance: 1.0 H (1 kHz)
  • Output Voltage: 6.0 mV (mV at 1 kHz, 5 cm/sec)
  • Output Channel Balance: Output Channel Balance
  • Stylus Shape: Elliptical
  • Cantilever: Aluminium tapered Pipe
  • Static Compliance: 20 x 10-6 cm/dyne
  • Dynamic Compliance: 8.0x10-6cm/dyne (100Hz)
  • Mounting: Half-inch
  • Dimensions (H x W x D): 17.2 × 17.8 × 28.3mm
  • Accessories Included: Cartridge installation slotted screws 11.0 mm (0.43”) x 2 and 8.0 mm (0.31”) x 2,
  • Washer x 2, Round nut x 2, Non-magnetic screwdriver x 1
  • Recommended Load Capacitance: 100-200 pF
  • Replacement Stylus: ATN-XP7Stylus Size0.3 x 0.7 mil
  • Type: VM Dual Magnet
  • Weight: 6.2g
