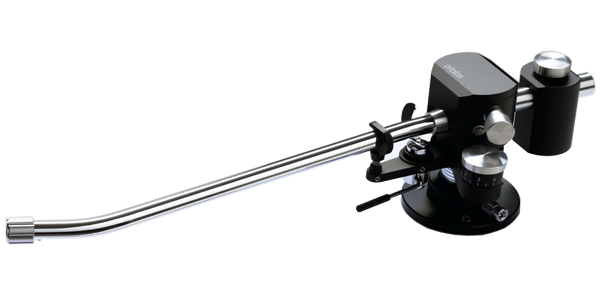

Ortofon RS-309D 12" dynamic-balance

SKU: APA2018-03468
  • 36  Instalments
  • 2 years warranty
    2 Years Warranty

Βραχίονας Dynamic 12''Προδιαγραφές: Effective length (distance between the stylus and pivot point): 329mmMounting distance between the pivot point and turntable center: 314mmOffset angle: 19 degreesOverhang: 15mmTracking force adjusting range (direct reading): 0 - 5 g Height adjustment range...more

  • 36  Instalments
  • 2 years warranty
    2 Years Warranty
2.699 €

VAT included and Κανονικά Μεταφορικά

Upon Order
Add to cart
apa support icon

NEED HELP?

Our expert engineers can assist you!

Βραχίονας Dynamic 12''

Προδιαγραφές:

  • Effective length (distance between the stylus and pivot point): 329mm
  • Mounting distance between the pivot point and turntable center: 314mm
  • Offset angle: 19 degrees
  • Overhang: 15mm
  • Tracking force adjusting range (direct reading): 0 - 5 g
  • Height adjustment range: 42 mm - 57 mm
  • Diameter of  the armbase mounting hole: 34 mm - 36 mm
  • Diameter of the center shaft: 16 mm
  • Fixing holes PCD: dia. 50 mm
  • Size/Thread: dia. 3.2 mm (dia. 3mm x 20mm and dia. 3 mm wood screw)
  • Digital scale DS 1 included
  • Headshell SH-1 included
