Thorens TAS 1600
SKU: APA2021-00675
-
Free Shipping -
36 Instalments
-
2 Years Warranty
The THORENS TAS 1600 is an MC pickup manufactured for THORENS in Japan....more
-
Free Shipping
-
36 Instalments
-
2 Years Warranty
1.325 €
VAT included and Free Shipping
Upon Order
Notify me when the product is available
Add to cart
Add to Wishlist

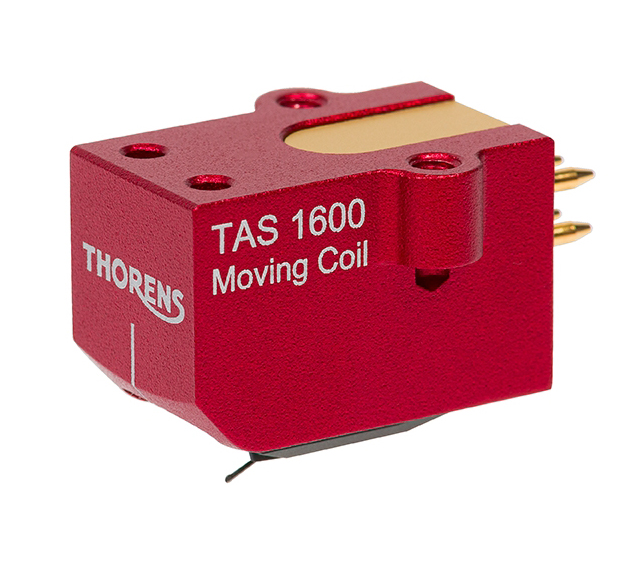

The THORENS TAS 1600 is an MC pickup manufactured for THORENS in Japan. The aim of the development was the optimal combination of the pick-up in combination with the TD 1600/1601 turntable and the TP 92 precision tonearm. With an output voltage of 0.6mV (5.5cm/sec) and 12 ohms internal resistance, the pick-up harmonises with all common phono preamplifiers. A naked diamond with line contact cut in combination with a solid boron cantilver guarantee best pickup capability and sound quality.
Specifications
- Mounting 1/2” centers / Threaded inserts
- Frequency Response: 20 - 50,000 Hz
- Body Aluminium
- Channel Separation: 28 dB (1 kHz)
- Output Channel Balance: 0.5 dB (1 kHz)
- Output Voltage: 0.4 mV (1 kHz, 5 cm/sec)
- Vertical Tracking Angle 20 degrees
- Tracking force, recommended: 1.8 to 2.2 g (standard 2.0 g)
- Stylus Shape Special Line Contact
- Stylus Size: 1.5 x 0.28 mil
- Stylus Construction Nude rectangular shank
- Cantilever 0.28 mm Ø nude boron
- Coil Impedance: 12 Ohms (1 kHz)
- Coil Inductance: 25 μH (1 kHz)
- DC Resistance: 12 Ohms
- Static Compliance: 22 x 10 – 6 cm / dyne
- Dynamic Compliance: 18 x 10 – 6 cm / dyne (100 Hz)
- Terminal Pins Brass
- Wire Used for Coil PCOCC (Copper by Ohno Continuous Casting process)
- Recommended Load Impedance min 100 Ohms
- Cartridge Weight: 8.2 g
