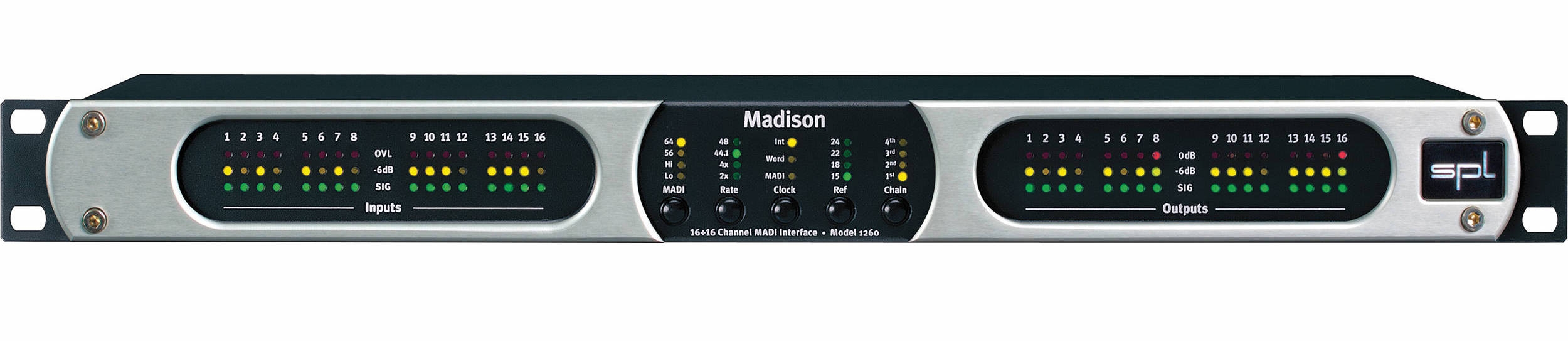

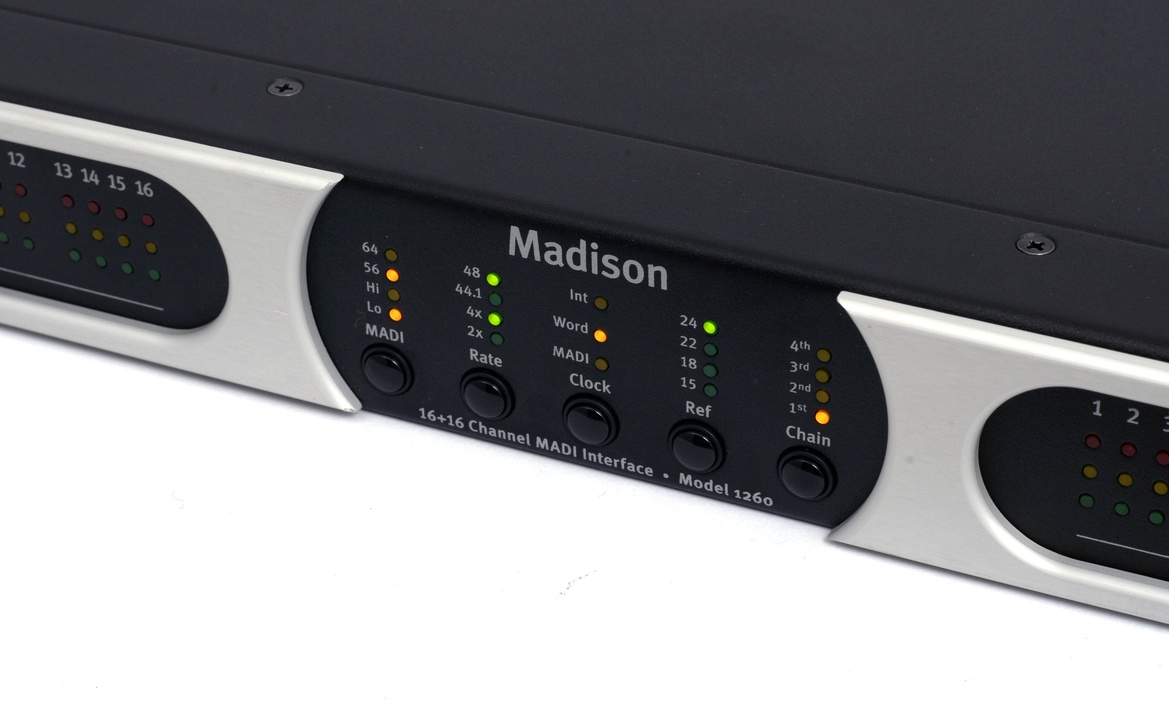

16+16 channel AD/DA converter and MADI interface

Madison offers what hardly any other manufacturer in this price segment has to offer: 16 AD/DA converters. With SmartMADI and the Madicon this becomes an expandable multi-channel studio interface of the first order.

  • MADI transmission distance up to 2 km
  • MADI I/O latency: 1 sample
  • Optical MADI socket, type SC
  • 56 & 64 channel Hi/Lo modes
  • accepts Varispeed up to +/-12,5%
  • Sync to MADI, Wordclock or Internal
  • Device ID for daisy chaining
  • 16 AD and 16 DA converters
  • 24 bit / up to 192 kHz
  • Level lights per channel in easily readable blocks of four
  • OdBfs: 15, 18, 22 or 24 dBu
  • Fanless and therefore particularly suitable for noise-sensitive environments
  • Optional redundant power supply unit

Madison together with the Madicon support SmartMADI

  • MADI becomes more user-friendly, simple and modern
  • SPL’s Madicon and Madisons can now be connected in series (daisy chaining) like Audio-Over-IP devices, and are easier to configure and more reliable.
  • An additional MADI router for more than two MADI devices is not required
  • The sample rate is now transmitted via the MADI stream and Madisons follow automatically – very handy

Specifications:

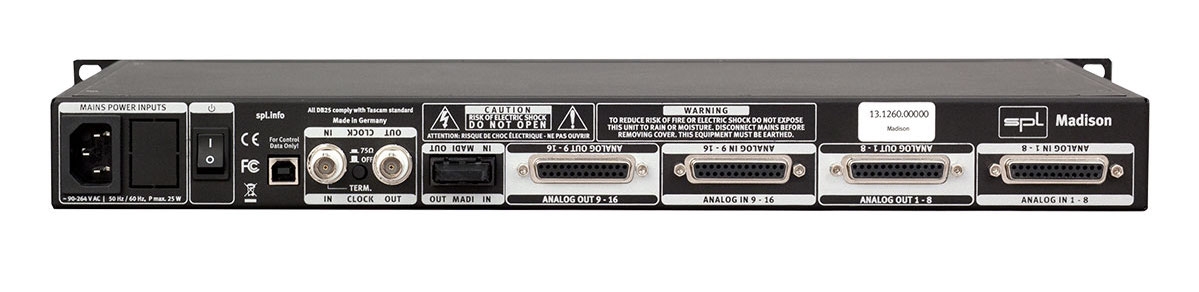

Analoge Input & Outputs; DB25 (balanced)

  • Maximum input & output gain: 24 dBu
  • Input impedance: 20 kΩ
  • Output impedance: 75 Ω
  • Common mode rejection (1 kHz): 82 dB
  • Crosstalk (1 kHz, 48 kHz SR): -110 dB
  • Dynamic Range (A-weighted, 48 kHz SR): 115 dB

Digital I/O; MADI-Port

  • MADI optical, Type SC: 44.1/48/88.2/96/176.4/192 kHz
  • Varispeed: ±12.5% in 56 CH mode, -12.5% in 64 CH mode
  • Reference Levels: 15dBu, 18dBu, 22dBu, 24 dBu
  • Wordclock input, BNC, terminated impedance: 75 Ω
  • Wordclock Level (Input TTL/CMOS5/CMOS3): 3.3 V
  • S/N (A-bewertet, 48kHz SR): -115 dBFS
  • S/(N+D) (-1 dBfs, 48kHz SR): -102 dBFS
  • Passband response (-0.02dB, 48kHz SR): 22 kHz
  • Passband Ripple (Decimation-LPF, 48kHz SR): +/- 0.005 dB
  • Stopband Attenuation (Decimation-LPF, 48kHz SR): 100 dB
  • Crosstalk (1 kHz, 48kHz SR): -110 dBu

Internal Linear Power Supply with Shielded Toroidal Transformer

  • Operating voltage for analog audio: +/- 17 V
  • Operating voltage for digital audio: +12 V, +5 V
  • BTU (British Thermal Units, typical): 65 BTU/h
  • BTU (British Thermal Units, max): 110 BTU/h

Mains Power Supply

  • Mains voltage: 90 – 264 V AC, 50/60 Hz Hz
  • Power consumption: max. 35 W

Dimensions & Weight

  • W x H x D (width x height x depth): 482 x 44 x 260 mm
  • Unit weight: 3.05 kg
  • Shipping weight (incl. packaging): 5 kg
