Rotel RMB-1587 mkII Black
SKU: APA2026-00711
-
Free Shipping -
36 Instalments
-
2 Years Warranty
-
Free Shipping
-
36 Instalments
-
2 Years Warranty
4.539 €
Upon Order
Notify me when the product is available
Add to cart
List

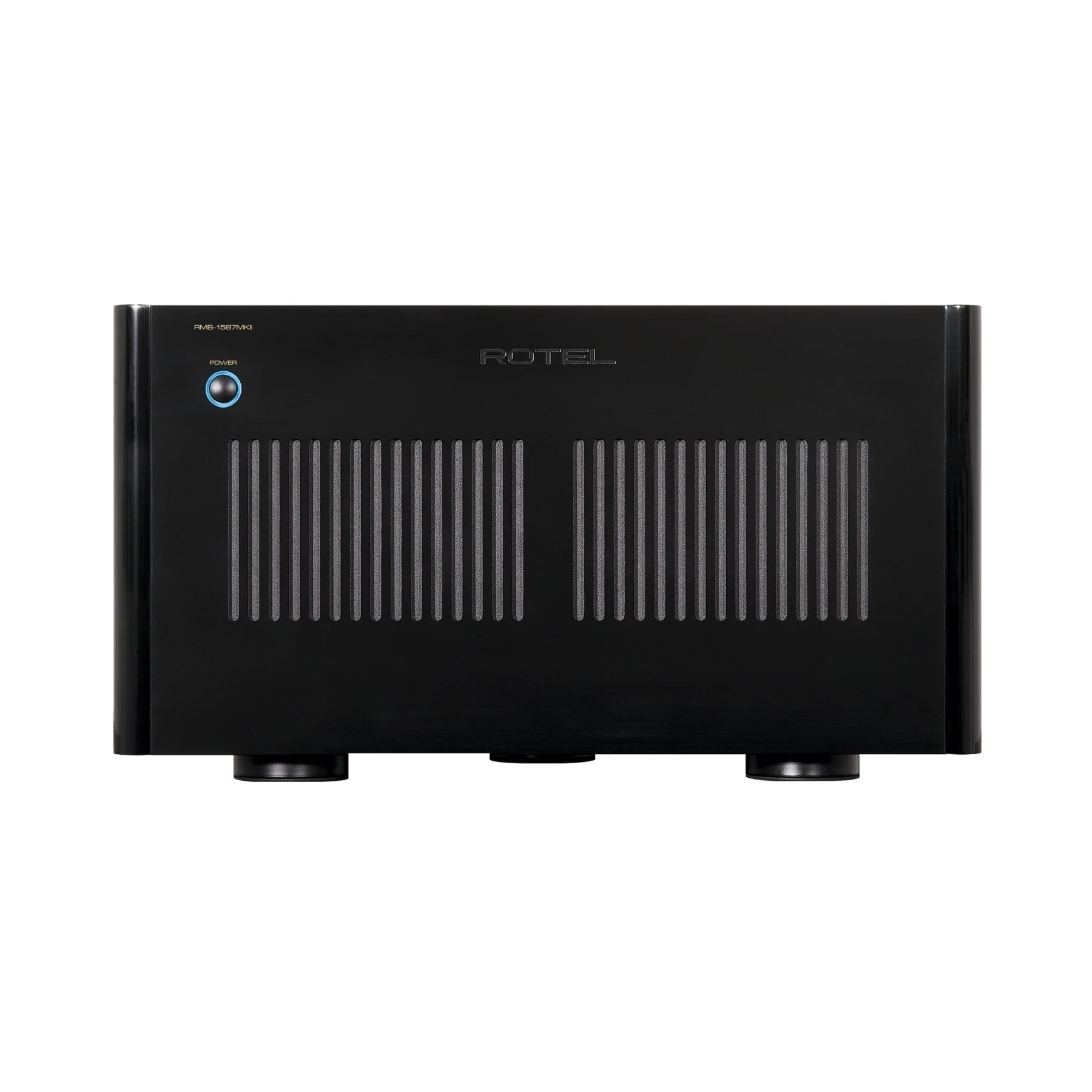

The Rotel RMB-1587 MKII is a high-end 7-channel multichannel power amplifier, designed to serve as the ultimate heart of the most demanding Home Cinema and immersive surround sound systems. Operating in Class AB, it delivers an impressive 7 x 155W into 8Ω and more than 7 x 250W into 4Ω with all channels driven, providing more than 1.7 kW of total clean power. With Rotel’s new, upgraded MKII architecture, dual custom toroidal transformers, high-end Slit-Foil capacitors and fully balanced XLR inputs, it drives every premium speaker on the market with surgical precision and limitless dynamics.
Specifications
- Device Type: High-End 7-Channel Multichannel Power Amplifier
- Operating Class: Class AB
- Architecture / Design: Upgraded MKII generation with improved circuitry, superior isolation and low distortion
- Power Supply System: Two (2) oversized, custom high-current toroidal transformers (Rotel)
- Filtering Capacity: 8 premium high-performance Slit-Foil storage capacitors of British design
- Output Power (RMS, 7 Channels Driven): 7 x 155 W per channel into 8 Ω; 7 x 250 W per channel into 4 Ω
- Output Power (RMS, 2 Channels Driven): 2 x 335 W per channel into 4 Ω
- Total Harmonic Distortion (THD): < 0.03 % (20 Hz – 20,000 Hz, 8 Ω)
- Intermodulation Distortion (IMD): < 0.03 % (60 Hz : 7 kHz, 4:1)
- Damping Factor: 330 (20 Hz – 20,000 Hz, 8 Ω)
- Frequency Response: 10 Hz – 100 kHz (+0, -0.3 dB)
- Signal-to-Noise Ratio (S/N Ratio): 111 dB (IHF “A” weighted)
- Gain: 26.6 dB
- Channel Separation (Crosstalk): > 55 dB

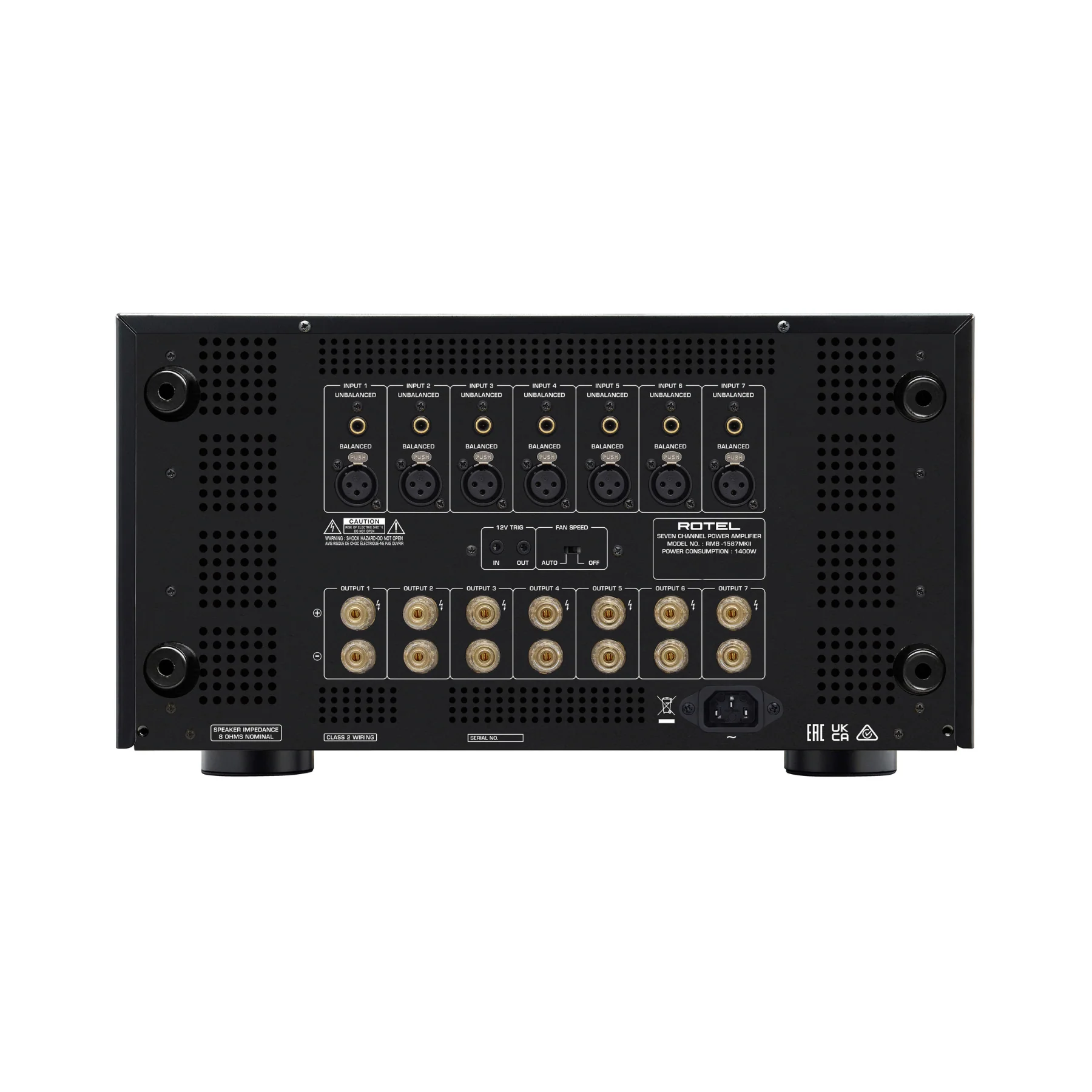

- Analog Inputs: 7 x Balanced XLR (3-pin); 7 x Unbalanced RCA (Gold-plated)
- Input Connection Note: Only one type of input (XLR or RCA) may be used per channel, never simultaneously
- Automation Control (Trigger): 1 x 12V Trigger Input, 1 x 12V Trigger Output
- Minimum Speaker Impedance: 4 Ω minimum
- Input Impedance / Sensitivity: Unbalanced (RCA): 12 kΩ / 1.9 V | Balanced (XLR): 100 kΩ / 3.8 V
- Cooling System: 4 x ultra-quiet variable-speed fans, thermostat-controlled (Auto / Off)
- Dimensions (W × H × D): 431 x 237 x 456 mm
- Front Panel Height: 5U / 221 mm (Compatible with standard 19″ rack)
- Rack Mount Capability: Yes, removable rack ears included in the package
- Net Weight: 37.6 kg
- Power Supply & Consumption: 230 V, 50 Hz (or 120 V, 60 Hz depending on region) | Maximum Consumption: 1400 W
- Heat Dissipation: 1177 W (at 4 Ω, 1/8 power)
