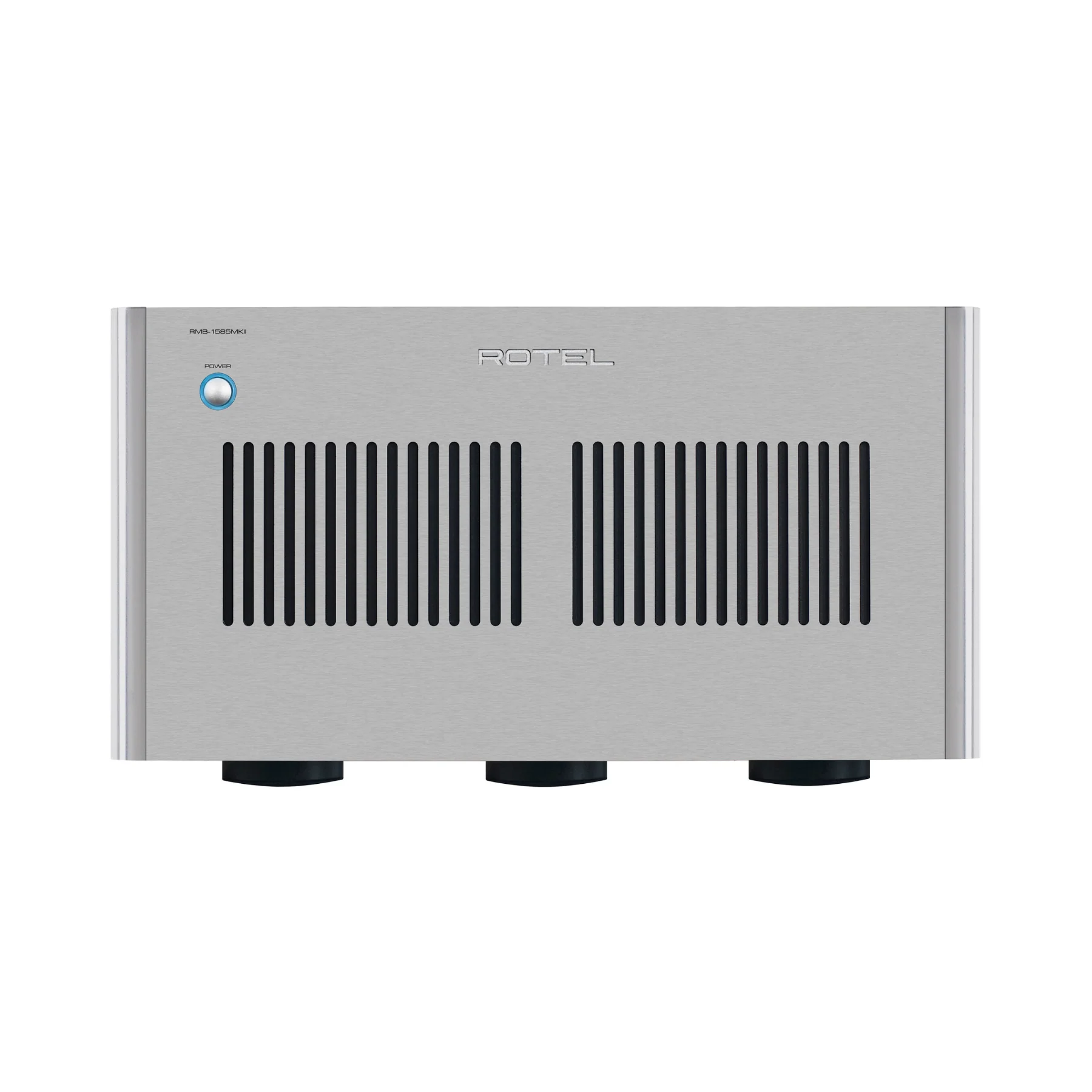

Rotel RMB-1585 mkII SIlver
SKU: APA2022-00465
-
Free Shipping -
36 Instalments
-
2 Years Warranty
-
Free Shipping
-
36 Instalments
-
2 Years Warranty
4.329 €
Upon Order
Notify me when the product is available
Add to cart
List
The Rotel RMB-1585MKII is the flagship of the company’s multichannel power amplifiers, designed to deliver breathtaking performance in the most demanding Home Cinema and multichannel audio systems. Operating in Class AB, it delivers an impressive 5 x 210W into 8Ω and up to 5 x 340W into 4Ω with all channels driven (exceeding 1 kW in total). With the new MKII architecture, dual custom toroidal transformers, 8 Slit-Foil capacitors and dedicated Bi-Amping functionality, it provides abundant energy, exceptional control and cinematic dynamics with zero compression.
Specifications
- Device Type: High-End 5-Channel Multichannel Power Amplifier (Flagship)
- Operating Class: Class AB
- Architecture / Design: Upgraded MKII design with signal isolation and exceptionally low distortion
- Power Supply System: Two (2) massive, custom high-current toroidal transformers (Rotel)
- Filtering Capacity: 8 premium high-performance Slit-Foil storage capacitors
- Output Power (RMS, 5 Channels Driven): 5 x 210 W per channel into 8 Ω; 5 x 340 W per channel into 4 Ω
- Output Power (RMS, 2 Channels Driven): 2 x 440 W per channel into 4 Ω
- Total Harmonic Distortion (THD): < 0.03 % (20 Hz – 20,000 Hz, 8 Ω)
- Intermodulation Distortion (IMD): < 0.03 % (60 Hz : 7 kHz, 4:1)
- Damping Factor: 223 (at 1 kHz, 8 Ω)
- Frequency Response: 10 Hz – 100 kHz (+0.1, -0.3 dB)
- Signal-to-Noise Ratio (S/N Ratio): 120 dB (IHF “A” weighted)
- Gain: 26.9 dB
- Channel Separation (Crosstalk): > 55 dB
- Analog Inputs: 5 x Balanced XLR; 5 x Automatically Switching Unbalanced RCA
- Bi-Amp Mode: Yes, manual selector switch (internal bridging of channels 1+2 and 4+5)
- Automation Control (Trigger): 1 x 12V Trigger Input, 1 x 12V Trigger Output
- Minimum Speaker Impedance: 4 Ω minimum
- Input Impedance / Sensitivity: Unbalanced (RCA): 12 kΩ / 1.89 V | Balanced (XLR): 50 kΩ / 4.7 V
- Cooling System: 4 x ultra-quiet variable-speed fans, thermostat-controlled
- Dimensions (W × H × D): 431 x 237 x 456 mm
- Front Panel Height: 5U / 221 mm (Compatible with standard 19″ rack)
- Rack Mount Capability: Yes, removable rack ears included in the package
- Net Weight: 37.4 kg
- Power Supply & Consumption: 230 V, 50 Hz | Maximum Consumption: 1200 W
- Heat Dissipation: 972 W/h (at 4 Ω, 1/8 power)
