Lynx Studio Two A
SKU: APA2018-00182
-
36 Instalments
-
2 Years Warranty
LynxTWO 192 kHz Multichannel Audio Reference Interface. The three models offer different analog I/O configurations for versatility and ease of use. The basic LynxTWO-A model, with four analog inputs and outputs, is intended for general usageThe LynxTWO family of PCI cards were Lynx’s first 192 kHz a...more
-
36 Instalments
-
2 Years Warranty
926 €
VAT included and Κανονικά Μεταφορικά
Upon Order
Notify me when the product is available
Add to cart
Add to Wishlist
ONLINE GUIDE
Read our buyer's guide for Κάρτες Ήχου
LynxTWO 192 kHz Multichannel Audio Reference Interface. The three models offer different analog I/O configurations for versatility and ease of use. The basic LynxTWO-A model, with four analog inputs and outputs, is intended for general usage

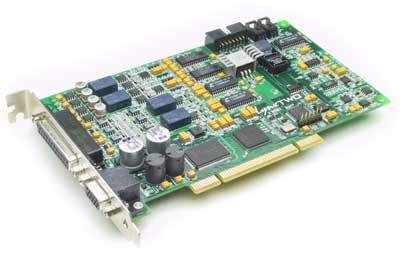

The LynxTWO family of PCI cards were Lynx’s first 192 kHz audio products. Introduced in 2000, these three versatile cards offered 192 kHz analog audio and 96 kHz digital audio with world-class converters and time code synchronization on board.
With performance that exceeds many stand-alone converters, LynxTWO has set the standard for signal purity, versatile synchronization, powerful hardware mixing, and extensibility to support a variety of multichannel formats including ADAT and multiple AES/EBU or SPDIF.
With a design very similar to that of Lynx’s highly acclaimed Aurora converters, LynxTWO delivers near Aurora-quality specs and performance in the compact PCI card format. In fact, using the optional LynxTWO/Aurora Interface Kit, your LynxTWO can act as the computer interface and front end for the Aurora converter.
FEATURES
- 200kHz sample rate / 100kHz analog bandwidth (Supported with all drivers)
- +4dBu or -10dBV line levels selectable per channel pair
- 24-bit AES3 or S/PDIF I/O with full status and subcode support
- Up to 8 LynxTWOs can be installed in one Windows computer; up to three in Macintosh computers
- Sample rate conversion on digital input
- Non-audio digital I/O support for Dolby Digital® and HDCD
- 32-channel / 32-bit digital mixer with 16 sub outputs
- Multiple dither algorithms per channel
- SMPTE time code reader and generator with MTC conversion
- Composite video genlock
- Word, 256 Word, 13.5MHz or 27MHz clock sync
- Extremely low-jitter tunable sample clock generator
- Dedicated clock frequency diagnostic hardware
- Multiple-board audio data routing and sync
- Two LStream™ ports support up to 16 additional I/O channels
- Compatible with LStream modules for ADAT and AES/EBU standards
- Zero-wait state, 16-channel, scatter-gather DMA engine
- Windows 2000/XP/XPx64/Vista/Vista x64: MME, ASIO 2.0, WDM, DirectSound, Direct Kernel Streaming and GSIF
- Macintosh OSX: CoreAudio (10.4)
- Linux, FreeBSD: OSS
- RoHS compliant
- Optional LStream Expansion Modules: LS-ADAT and LS-AES
- Interfaces with Aurora converters via LynxTWO/Aurora Interface Kit
- Ships with audio and sync breakout cables, SPDIF adapter cables, CD ROM with manual, all drivers and sample software
