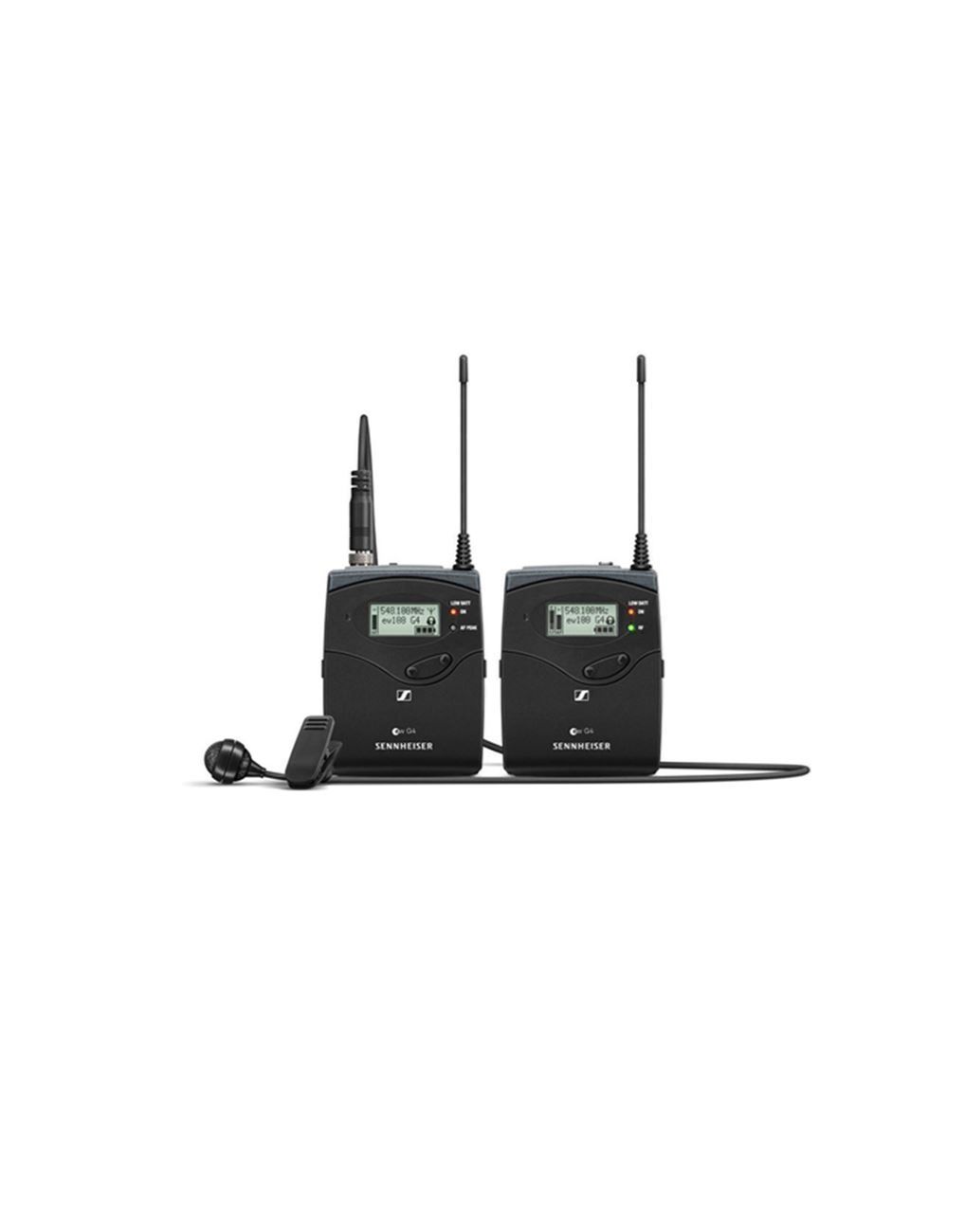

Sennheiser EW-122P-G4-B

SKU: APA2022-10225
  • free shipping icon
    Free Shipping
  • 36  Instalments
  • 2 years warranty
    2 Years Warranty

A broadcast quality sound solution. Providing the highest flexibility for your outdoor shoots and field recording applications....more

  • free shipping icon
    Free Shipping
  • 36  Instalments
  • 2 years warranty
    2 Years Warranty
645 €

VAT included and Free Shipping

Available in warehouse (Delivery 1-3 days)
Add to cart
apa support icon

NEED HELP?

Our expert engineers can assist you!

A broadcast quality sound solution. Providing the highest flexibility for your outdoor shoots and field recording applications. A robust wireless microphone system that offers excellent sound quality, simple mounting and ease of use.

Specifications

EK 100 G4

  • Frequency rangen : B: 626 - 668 MHz
  • Dimensions : Approx. 82 x 64 x 24 mm
  • Compander : Sennheiser HDX
  • THD, total harmonic distortion : < 0.9 %
  • Weight : (incl. batteries) approx. 160 g
  • Audio output : 3.5 mm jack socket: +12 dBu (mono, unbalanced)
  • Signal-to-noise ratio : > 110 dBA
  • Switching bandwidth : up to 42 MHz
  • Peak deviation : ±48 kHz
  • Nominal deviation : ±24 kHz
  • Operating time : Typically 8 h
  • Modulation : Wideband FM
  • Power supply : 2 AA batteries, 1.5 V or BA 2015 accupack
  • Current consumption : at nominal voltage: typ. 180 mA with receiver switched off: ? 25 µA
  • Adjacent channel rejection : > 65 dB
  • Intermodulation attenuation : > 65 dB
  • Powering : 3 V battery / 2.4 V rechargeable battery
  • Receiving frequency : Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
  • RF sensitivity < 1.6 μV for 52 dBA eff S/N
  • Squelch : low: 5 dBµV middle: 15 dBµV high: 25 dBμV
  • Temperature Range : -10 °C to +55 °C
  • Receiver Principle : Adaptive diversity
  • Blocking > 70 dB


SK 100 G4

  • Dimensions : Approx. 82 x 64 x 24 mm
  • Compander :Sennheiser HDX
  • THD, total harmonic distortion :< 0.9 %
  • Weight :(incl. batteries) approx. 160 g
  • Signal-to-noise ratio > 110 dBA
  • RF output power : Max. 30 mW
  • Switching bandwidth : up to 42 MHz
  • Peak deviation : ±48 kHz
  • Nominal deviation : ±24 kHz
  • Operating time : Typically 8 h
  • Modulation : Wideband FM
  • Power supply : 2 AA batteries, 1.5 V or BA 2015 accupack
  • Current consumption : at nominal voltage: typ. 180 mA with transmitter switched off: ? 25 µA
  • Input impedance : 40 kΩ, unbalanced / 1 MΩ
  • Max. Input voltage : 3 Veff
  • Powering : 3 V battery / 2.4 V rechargeable battery
  • Transmission frequency : Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
  • AF frequency response : Mic: 80 – 18,000 Hz Line: 25 – 18,000 Hz
  • Temperature Range : -10 °C to +55 °C
  • Frequency stability : < ±15 ppm


ME 4

  • Connector : 3.5 mm jack
  • Frequency response : 50 to 18,000 Hz
  • Max. sound pressure level :120 dB
  • Cable length : approx. 1.60 m
  • Transducer principle : pre-polarized condensor microphone
  • Pick-up pattern : cardioid
  • Sensitivity in free field, no load (1kHz) : 40 mV/Pa
  • Equivalent noise level : 31 dB


What's in the Box

  • EK 100 G4 camera receiver
  • SK 100 G4 bodypack transmitter
  • ME 4 clip-on microphone (ew 122 P variants only)
  • 4 AA batteries
  • CA 2 camera adapter
  • CL 1 3.5 mm jack cable
  • CL 100 XLR to 3.5 mm jack adapter cable
  • quick guide
  • safety guide
  • manufacturer declaration sheet
