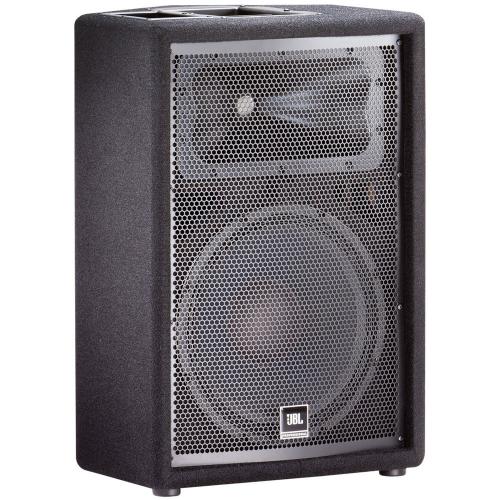

JBL JRX 212

SKU: APA2018-18633
  • 36  Instalments
  • 2 years warranty
    2 Years Warranty

JBL JRX 212. JBL 12 in low frequency driver with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more cross-sectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.  JBL 2414H-C 25 mm (1 in) polymer diaphragm compression drive...more

  • 36  Instalments
  • 2 years warranty
    2 Years Warranty
270 ,95 €

VAT included and Κανονικά Μεταφορικά

Available in warehouse (Delivery 1-3 days)
Add to cart
apa support icon

NEED HELP?

Our expert engineers can assist you!

JBL JRX 212. JBL 12 in low frequency driver with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more cross-sectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.  JBL 2414H-C 25 mm (1 in) polymer diaphragm compression driver improves high frequency performance as well as system reliability.

The advanced network topology crossover design shapes frequency response and delivers "coherent summation" in the crossover region.  High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.  Progressive Transition high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.

The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.  SonicGuard protects the high frequency driver from excess power without interrupting the performance.

Non-resonant, all-steel handles are used. Attractive 18-gauge hexagon perforated, steel grille protects components from damage.  Dual-angle pole-mount socket allows the speaker to tilt 10°for more uniform audience coverage.

Specifications:

Power Rating

250 / 1,000 W

Frequency Range

At -10 dB : 60 Hz to 20 kHz

Frequency Response

At ±3 dB : 70 Hz to 19 kHz

Sensitivity

99 dB SPL (1 W / 1 m) (1m)

Nominal Impedance

8 Ω

Amplifier Power

250 to 500 W into 8 Ω

Maximum SPL

129 dB

Nominal

Dispersion: 90 x 50º

Crossover Frequency

1.8 kHz

High Frequency Driver

JBL 2414H-C 1" (25 mm) polymer diaphragm compression driver mounted on Progressive Transition Waveguide

Low Frequency Driver

JBL M112-8

Input Connectors

1 x Neutrik Speakon NL-4; 0.25" (6.35 mm)
1 x TS phone jack; parallel

Dimensions (H x W x D)

23.0 x 15.7 x 12.8" (584.0 x 399.0 x 325.0 mm)

Weight

43.0 lb (19.5 kg)
