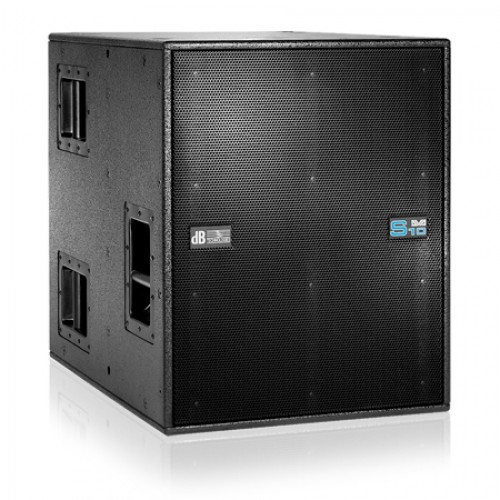

DB Technologies DVA-S09DP

A remarkably compact 15“ subwoofer in a band-pass design, the DVA S09 DP delivers true, tight, and punchy bass response.

With a height of just 44 cm, it can be flown above DVA T4 modules to keep the rig‘s footprint inconspicuous.

The S09 comes with two features that make it the perfect base for a high-quality satellite system, for example, when paired with the DVX D10.

One is an integrated active stereo crossover with two cutoff frequencies to choose from,90Hz and 120Hz.

The other is a phase inversion switch.

One PowerCon socket connects to the mains power supply, while two PowerCon outputs connect satellites.

Specifications:

• Cabin Type Wood

• Function Active, subwoofer

• Monitor Use - Amplifier 1000 Watt

• LF/MF, Woofer 15''

• HF, Horn - DSP Processor Yes

• Max SPL 134 dB

• Frequency Response 45 - 120 Hz

• Pole mount 1x M20

• Rigging 2xPick Points on top to fix DRK10/20 rigging frames

• Connector XLR/Speakon

• Dimensions 515 x 440 x 720 (W x H x D)

• Weight 37.5 kg

• Color Black
