JBL Control 28-1

SKU: APA2018-22020
  • 36  Instalments
  • 2 years warranty
    2 Years Warranty

The Control® 28-1 is a two-way 8” speaker with rich sonic character, wide coverage, consistent coverage, versatile mounting, and a contemporary high-design look that fits into a wide range of decors,This makes Control 28-1 an excellent choice for a wide variety of applications, including retail stor...more

  • 36  Instalments
  • 2 years warranty
    2 Years Warranty
391 €

VAT included and Κανονικά Μεταφορικά

Available in warehouse (Delivery 1-3 days)
Add to cart
apa support icon

NEED HELP?

Our expert engineers can assist you!

The Control® 28-1 is a two-way 8” speaker with rich sonic character, wide coverage, consistent coverage, versatile mounting, and a contemporary high-design look that fits into a wide range of decors,

This makes Control 28-1 an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality high-output indoor/outdoor foreground/background music (and/or paging) speaker is required.

Features:

  • Components: 8” woofer with woven fiberglass cone, 1” PEI diaphragm tweeter with fluid cooling
  • Contemporary, high-design appearance
  • Built-in InvisiBall® mounting hardware*, plus available U-bracket
  • Weather resistant enclosure and transducers
  • Wide 100° x 100° coverage
  • 120 Watt power handling (240 Watt program) in direct 8Ω setting, plus built-in 60 Watt 70V/100V multi-tap transformer.
  • High fidelity sound character with broad frequency response of 45 Hz – 20 kHz.

Specifications:

  • Frequency Range (-10 dB): 45 Hz to 20 kHz
  • Frequency Response (+/-3 dB): 62Hz - 16 kHz
  • Power Rating: 240 W Continuous Program (2 hrs)
  • 120 W (480W peak), Continuous Pink Noise (2 hrs) :
  • 90 W (360W peak) Continuous Pink Noise (100 hrs):
  • Maximum Input Voltage: 27.5 V RMS (2 hrs), 55.0 V peak
  • Maximum SPL: 112 dB ave. Continuous Pink Noise (118 dB peak)
  • Sensitivity: 91 dB, 1W/1m (ave. 100 Hz – 10 kHz)
  • Coverage Angle: 100° x 100°
  • Directivity Factor (Q): 7.3 (averaged 1kHz – 16kHz)
  • Directivity Index (DI): 8.3dB (averaged 1kHz – 16kHz)
  • Nominal Impedance: 8 ohms (THRU setting)
  • Crossover Type: 2nd order low-pass, 1st order high-pass, plus conjugate shaping

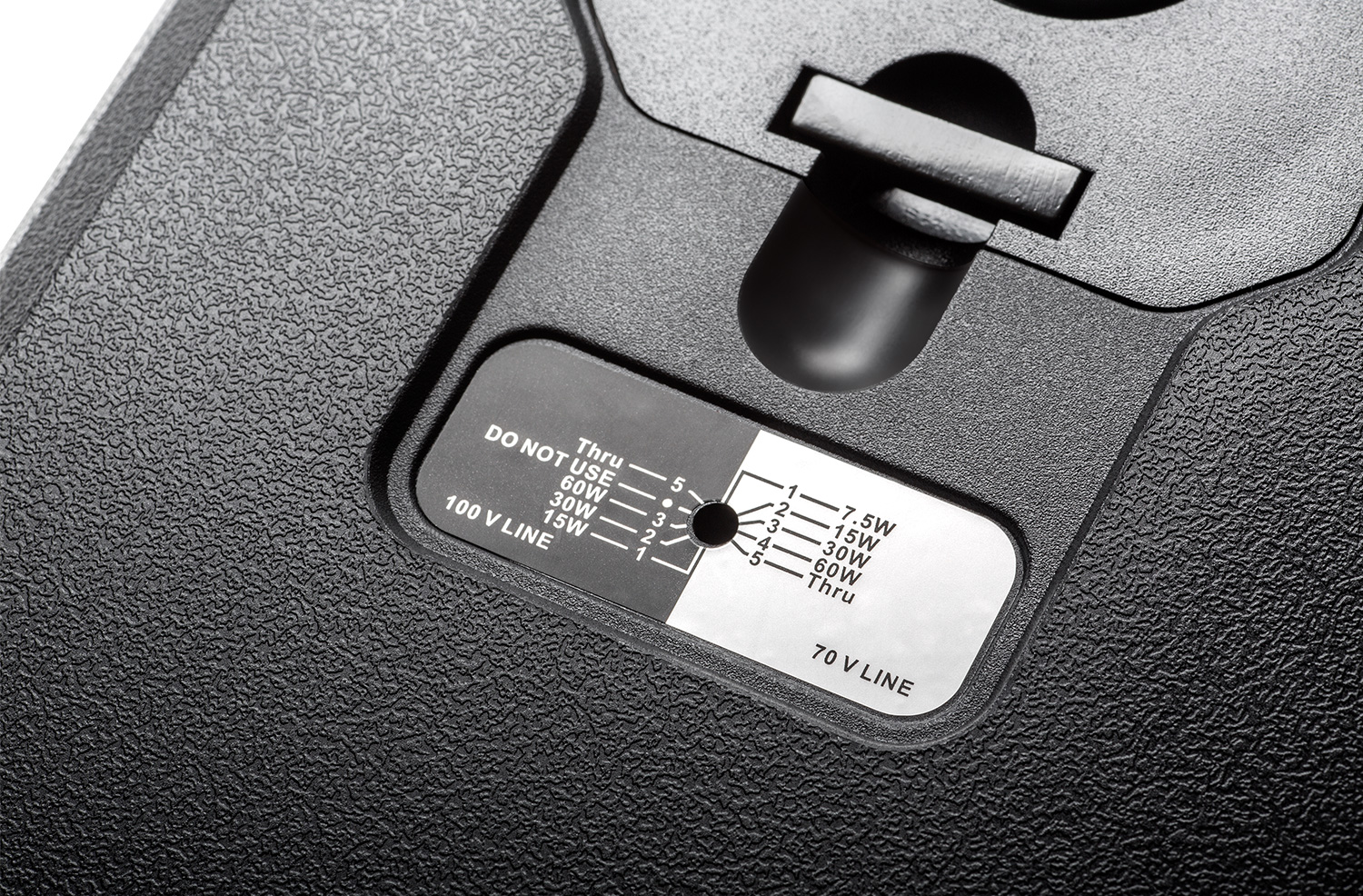

  • Transformer Taps: 70V: 60W, 30W, 15W, 7.5W100V: 60W, 30W, 15W , Insertion Loss: <0.94 dB at any tap setting, Thru Setting: 8Ω nominal
  • High Frequency Driver: 25 mm (1 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton™ voice coil former.
