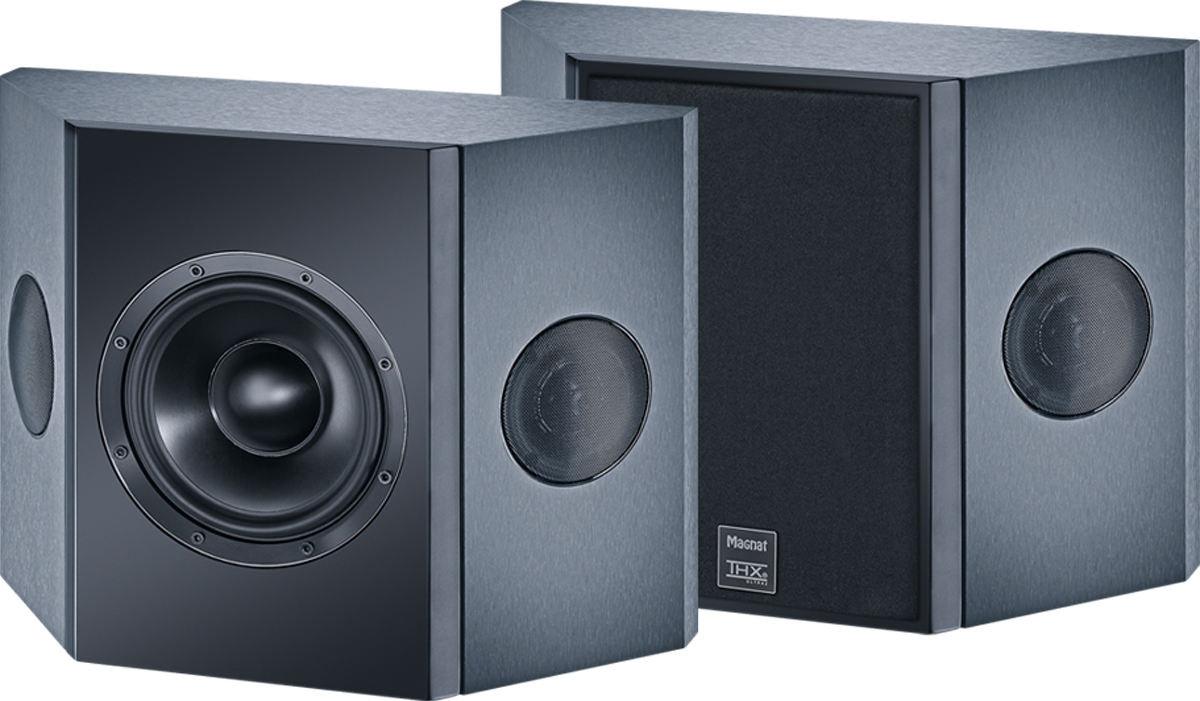

Magnat Cinema Ultra RD THX-200 Black (Pair)

High power performance with great spatial representation

One of the 42 mm tweeter cones is located on each sloping side at the centre of the powerful 17 cm subwoofers: The Cinema Ultra RD 200-THX follows the ideal structure of classic dipole speakers. The two tweeters are – as stipulated by THX® – connected together with reversed polarity to produce a diffuse, very three-dimensional soundscape. Because our cone operates in an extremely wide band, the Cinema Ultra RD 200-THX creates this desired diffuse sound field from as low as 1500 hertz. Despite its small size and moderate overall depth of just 16 centimetres, the effect speaker is capable of impressive sound levels - an important factor for the best cinema sound. And optimum installation is also child´s play thanks to the large number of wall-mounting options, including VESA brackets.

HIGH-PERFORMANCE DIPOLE SURROUND LOUDSPEAKER

THX Ultra2-certified dipole surround Speaker

All of the chassis have been specially developed for the Cimema Ultra set in order to meet the very strict requirements of the THX Ultra2 standard

Enveloping surround soundscape without speaker localisation due to the special chassis layout

Specially tuned crossover for optimally diffuse sound emission according to the strict requirements of the THX Ultra2 standard

Top acoustic performance through individual components developed for high performance in all details

Markedly compact and flat enclosure for easy and unobtrusive integration into every home cinema system

Various wall-mounting options

Can also be used according to the THX Ultra2 guidelines as a rear surround dipole loudspeaker

WOOFER-MIDRANGE

8 screw fixings for firm anchoring in the baffle

Metal-Core-Technology

Rigid ceramic/aluminum sandwich cone and dust cap for optimum precision

Flow-optimised, highly stable die-cast aluminium cage to avoid compression effects and resonances

TWEETER

Extremely large 42 mm high-performance polyfibre-compound cone

Computer-optimised Waveguide front panel with integrated diffusor for optimum dispersion characteristics according to the strict THX Ultra2 standard

Solid die-cast aluminium enclosure with large pole piece hole

Multiple damped coupling volume for particularly low resonance frequency

Extremely powerful neodymium annular magnet system for the highest efficiency and outstanding broadband capability

Highly resilient precision voice coil on a ventilated aluminium support

Fine mesh cover grille for a dscreet look

CROSSOVER

Single-wiring connection terminal with gold-plated, acrylic sealed terminals

Amplitude and phase-optimised crossover to meet the strict THX Ultra2 standard

CABINET

Removable fabric protection grille with optimum sound transmission and invisible magnet attachment

Very stable, braced MDF enclosure with particularly low-resonance, 30 mm thick baffle

Sophisticated mounting system with numerous variations

Cinema Ultra stealth design comprising: o offset baffle in a high-quality deep black silk matt lacquer finish o durable brushed-metal textured film in anthracite on the body o front panel and trim rings in matt black with a black chrome gloss ring o magnetically held cloth cover on a thin MDF frame o low-reflection metal logo in brushed titanium look

Closed housing for reproduction absolutely free of background noise at high levels according to the THX Ultra2 standard

CABINET SURFACE

Front: black silk matt / body: textured film - anthracite
