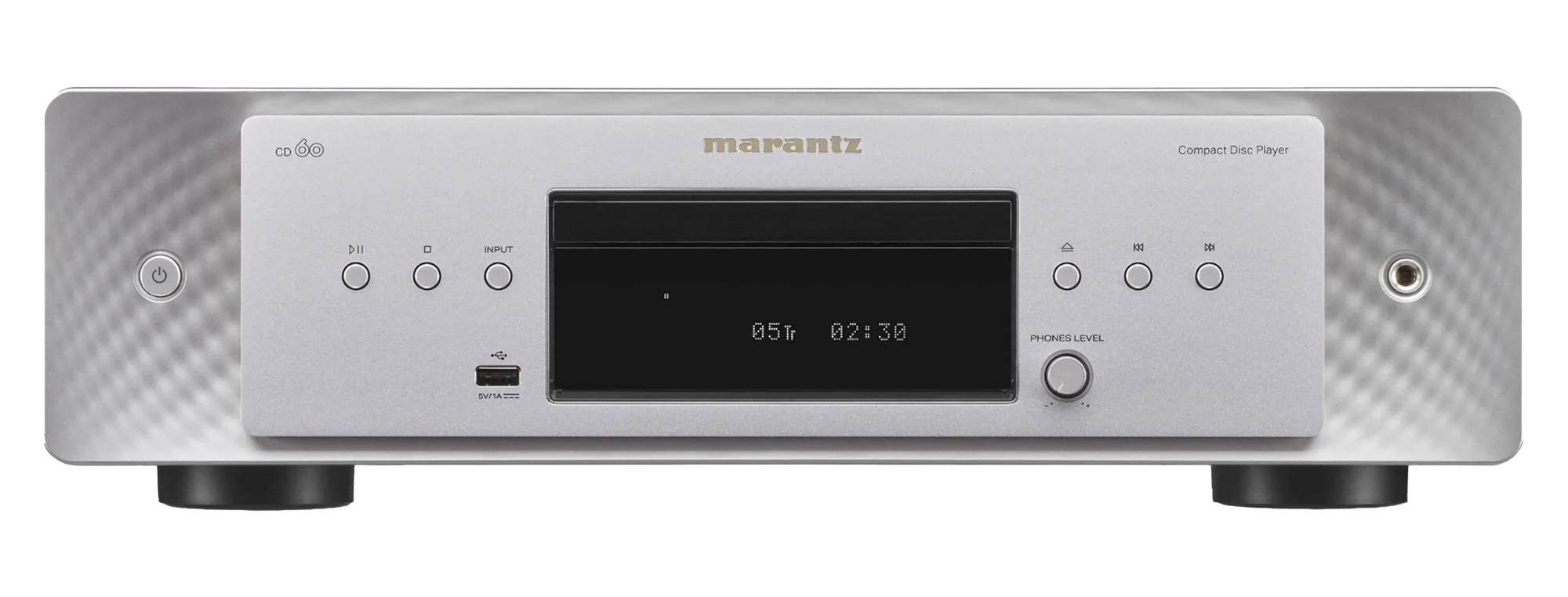

Marantz CD 60 Silver

SKU: APA2022-10190
  • free shipping icon
    Free Shipping
  • 36  Instalments
  • 2 years warranty
    2 Years Warranty

Explorations in SoundWhile supplies last, purchases of CD 60 include our Explorations In Sound CD set. This two-volume collection features a hand-selected arrangement of songs designed to test the performance of your system. Built with high quality materials and Sound Master tuned to inspire listene...more

  • free shipping icon
    Free Shipping
  • 36  Instalments
  • 2 years warranty
    2 Years Warranty
1.187 ,01 €

VAT included and Free Shipping

Upon Order
Add to cart
apa support icon

NEED HELP?

Our expert engineers can assist you!

Explorations in Sound

While supplies last, purchases of CD 60 include our Explorations In Sound CD set. This two-volume collection features a hand-selected arrangement of songs designed to test the performance of your system.

Built with high quality materials and Sound Master tuned to inspire listeners to discover new details in their favorite CDs.

Iconic design for modern CD enthusiasts

Unveil New Sounds In Classic CDs

CD 60 is for those who cherish their CD collections and who seek to discover new details upon every listen.

Luxurious Design Matches The Most Musical Sound

Architectural design, modern materials, and intuitive operation make CD 60 as incredible to behold as to hear.

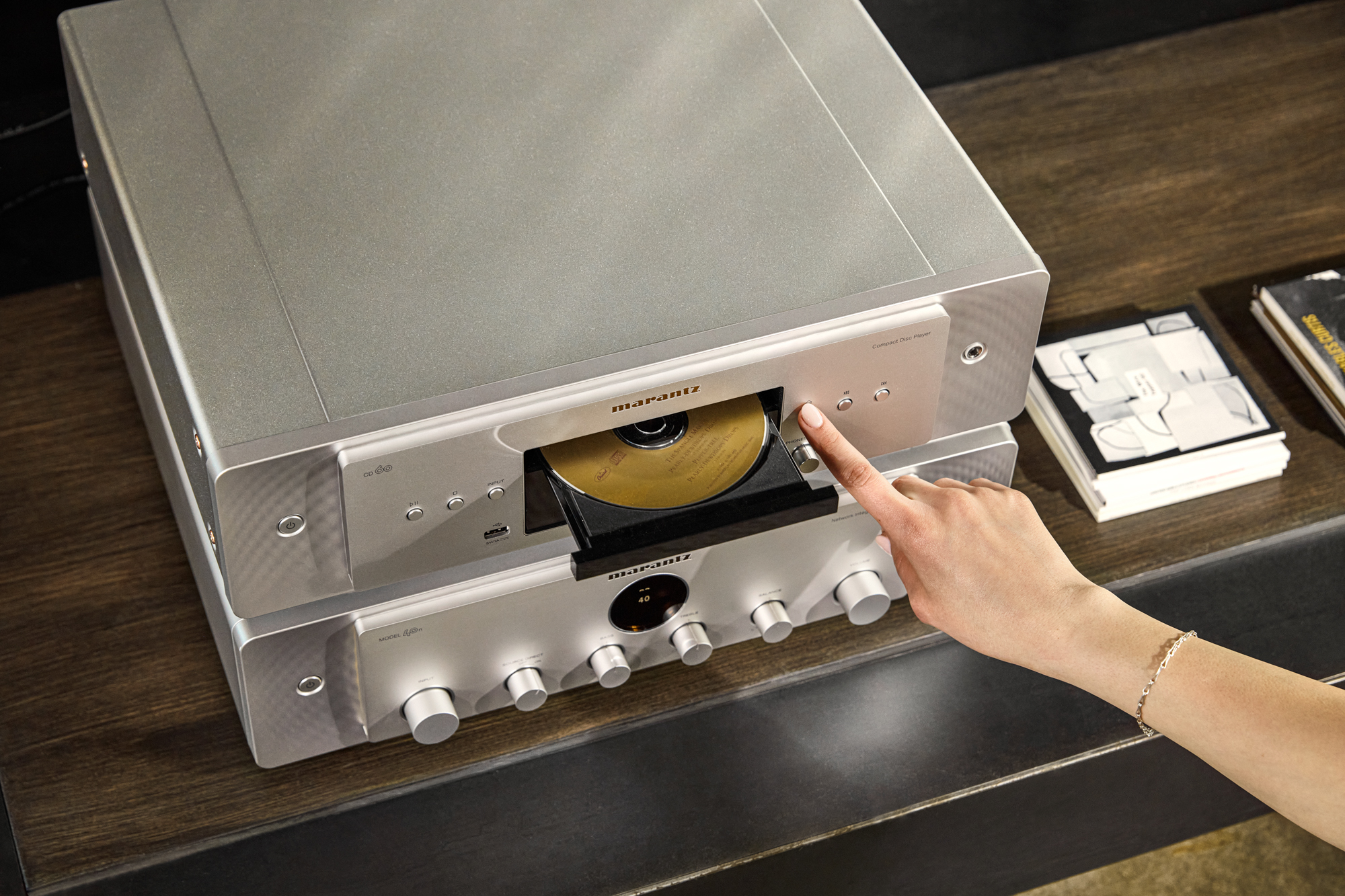

Pairs Beautifully With Marantz Amplifiers

Complementary visual design plus compatible technology make CD 60 a natural companion to MODEL 40n, MODEL 30, or other Marantz amplifiers

Rich, Warm, and Spacious Sound

Expertly tuned by the legendary Marantz Sound Master for The Most Musical Sound. CD 60 is the CD player your cherished collection deserves.

Optimized HDAM Circuit

In the CD 60, the proprietary HDAM circuit has been further optimized from its previous version by placing the parts symmetrically on the audio board and creating a more direct signal path. This update improves the sound stage from the previous models in pursuit of The Most Musical Sound.

High-Current Power Supply

The CD 60 power supply uses highspeed, high-current Schottky barrier diodes, higher value current storage capacitors and improved voltage regulators compared to predecessor models in this class. Oversize capacitors in the power supply improve current stability and reduced noise during highly demanding listening sessions.

Plays Hi-Res Audio USB Sources

The CD 60 can play back MP3, WMA, AAC and WAV, FLAC HD, ALAC, AIFF (up to 192-kHz/24bit), and DSD (up to 5.6- MHz) files from a connected USB storage device.

Specifications

  • Unit (W x H x D mm): 442 x 129 x 396
  • Net weight: 7.5kg
  • Packaging Dimensions (W x H x D mm): 525×249×511
  • Panel Color Available Colors: Silver/Gold and Marantz Black
  • Front (Center) Panel Aluminum
  • Frequency response USB DSD: 2Hz - 50kHz (-3dB)
  • USB PCM: 2Hz - 50kHz (-1.5dB)
  • CD: 2Hz - 20kHz
  • Total Harmonic Distortion USB DSD: 0.0006%
  • USB PCM 24bit: 0.0005%
  • CD: 0.0015%
  • Signal to Noise Ratio USB DSD: 110dB
  • USB PCM 24bit: 118dB
  • CD: 118dB
  • Dynamic Range USB DSD: 110dB
  • USB PCM 24bit: 118dB
  • CD: 101dB
  • Line Output Level: 2.2Vrms
  • Headphone Output Level: 28mW / 32 ohms
  • Power Consumption: 38W
  • at Standby: 0.3W


Audio Feature

  • HDAM New HDAM + HDAM-SA2
  • Power Transformer EI
  • Headphone Amp High slew rate op-amp + HDAM-SA2
  • H/P Amp Gain Setting Yes (Low / Mid / High)
  • Digital Filter Filter 1, 2 Selectable

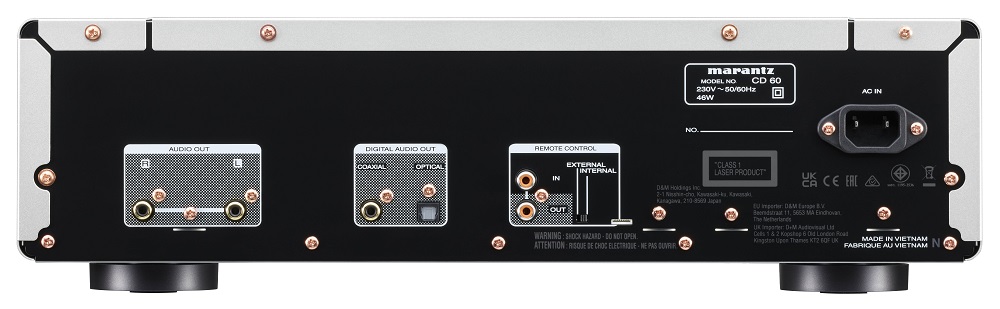

Connectivity / Playback Capability

  • CD Compatibility CD / CD-R/RW / WMA / MP3 / AAC
  • Data Disc Compatibility DSD / WAV / ALAC
  • Fixed Analog Output (RCA) 1 (Gold Plated)
  • Optical input / output (Maximum Support) 0 / 1
  • Coaxial input / output (Maximum Support) 0 / 1
  • Headphone Output 1
  • Remote Control Bus Terminal Yes (RC-5 In / Out)
  • w/ External / Internal Select Switch
  • Flasher Input Yes (U ver)
  • USB A 1 (Front)
  • Mass Storage Class
  • 5V/1A
  • Support format FAT 16/32
  • USB-A: FLAC / WAV / AIFF / ALAC / DSD: Yes / Yes / Yes / Yes
  • DSD Native Playback: Yes
  • USB Firmware Update: Yes


Easy to use

  • Remote Controller System Remote (Amp and CD Player Control)
  • Unit control (Button): POWER, Play/Pause, Stop, Input, Open/Close, Fwd, Rev
  • Unit control (Knob); 1 Phones Level
  • Dimmer for Front Display Bright / Dim / Dark / Off
  • Control with App via Network Player (Use Remote Control Bus) Yes
  • Last Function Memory Yes
  • Timer Play (Need external audio timer) Yes
  • On/Off selectable in Menu
  • Auto Standby Mode Yes
  • Other: Stereo RCA Cable x1
  • Remote connector cable x1
  • Accessory Box: Yes
  • Battery Yes (AAA x2)
  • Power Cord Yes
