Audiolab 8300XP Silver

SKU: APA2023-00822
  • free shipping icon
    Free Shipping
  • 36  Instalments
  • 2 years warranty
    2 Years Warranty

The 8300XP is a classic audiolab stereo power amplifier, sounding as clear and vibrant as its minimalist exterior.Delivering 140W per channel into 8 Ohms, the 8300XP is capable of driving even the most challenging speakers, combining audiolab's premium neutrality with an unyielding ability to draw t...more

  • free shipping icon
    Free Shipping
  • 36  Instalments
  • 2 years warranty
    2 Years Warranty
1.869 €

VAT included and Free Shipping

Upon Order
Add to cart
apa support icon

NEED HELP?

Our expert engineers can assist you!

The 8300XP is a classic audiolab stereo power amplifier, sounding as clear and vibrant as its minimalist exterior.

Delivering 140W per channel into 8 Ohms, the 8300XP is capable of driving even the most challenging speakers, combining audiolab's premium neutrality with an unyielding ability to draw the listener into the music it plays.

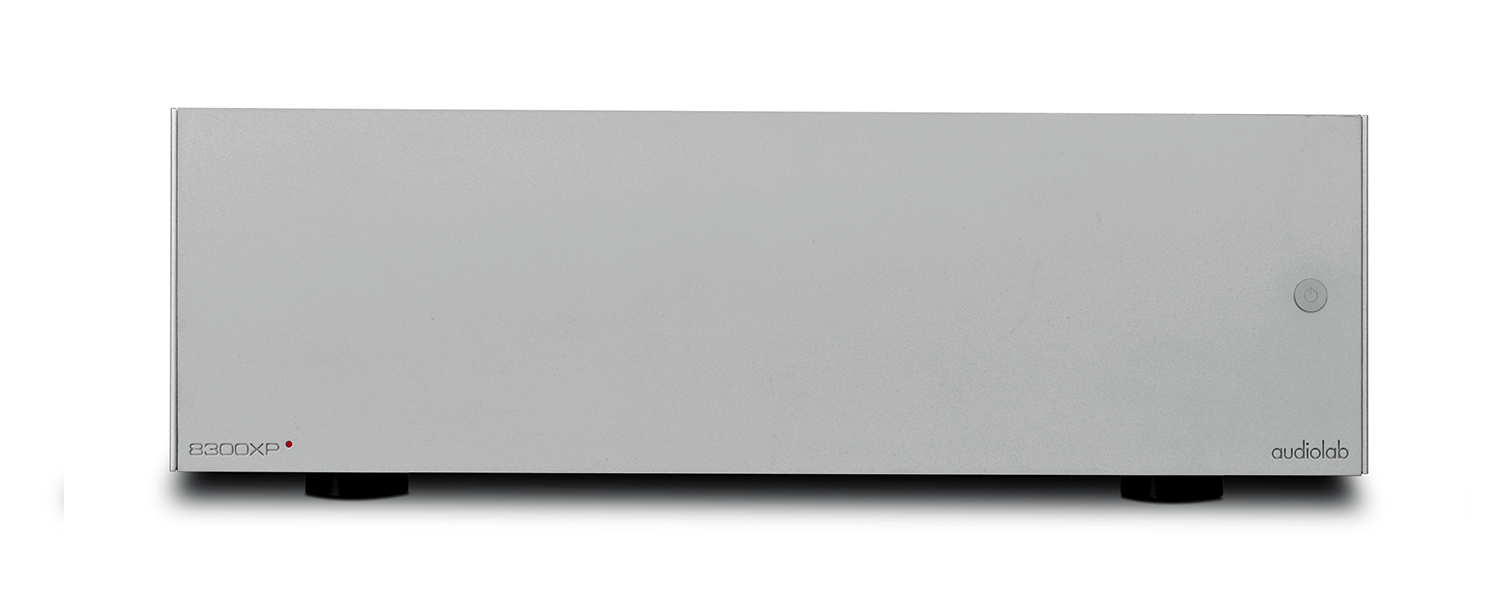

Minimalist exterior

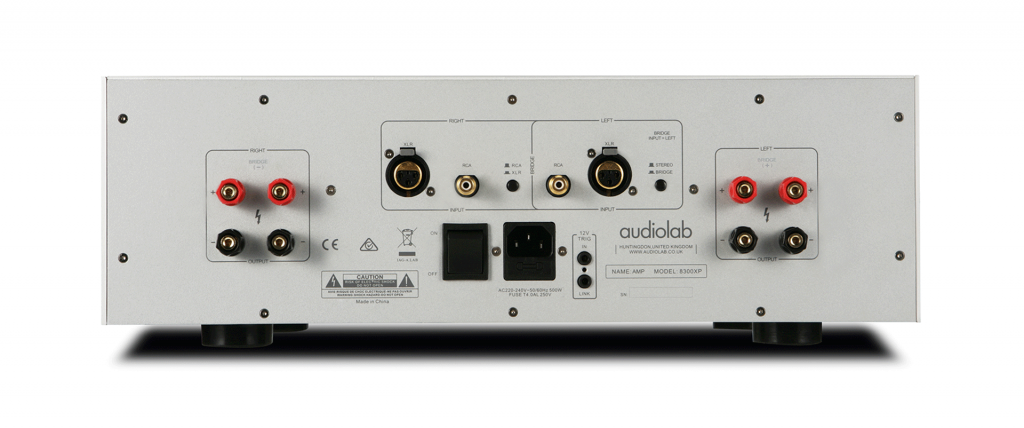

Audiolab's exemplary build quality and reliability ensure the 8300XP is a timeless power amplifier, its connection flexibility enhanced by the presence of Balanced XLR and single-ended RCA inputs, dual-wiring speaker terminals and a pair of 12v trigger inputs. The materials used in its circuitry are of the highest quality, right down to the speaker and power plugs, which are made from ultra-pure OCC (Ohno Continuous Cast) copper - all helping to minimize distortion and maximize sonic clarity.

Flexibility is further enhanced by the ability to add a second 8300XP and operate in bridged mode, increasing output power to 480W per channel into 8 Ohms.

All audiolab amplifiers are designed to ensure perfect cooperation with other audiolab devices.

Exciting to listen to and reliable to build, the 8300XP is a true audiophile sounder and a perfect partner for Audiolab's 8300CDQ, or M-DAC.

Specifications

  • Rate power output
  • 140W RMS (8Ω <1% THD, 1kHZ stereo)
  • 230W RMS (4Ω <1% THD, 1kHZ stereo)
  • 480W RMS (8Ω <1% THD, 1kHZ bridge)
  • Gain
  • 29dB @ 1kHz (stereo)
  • 36dB @ 1kHz (bridge)
  • Input sensitivity
  • 1100mV
  • Input impedance
  • 15k (balanced)
  • 10k (unbalanced)
  • Frequency response -3dB
  • 20Hz - 80kHz+
  • Frequency response -1dB
  • 20Hz - 30kHz
  • Total harmonic distortion (THD)
  • 0.004% (20W, ref. 1kHZ)
  • Intermodulation distortion (IM)
  • 0.004% (20W, ref. 7kHz + 60Hz)
  • Transient inermodulation distortion (TID)
  • 113dB (A Weighted, ref. 140W)
  • Signal-to-noise ratio (S/N)
  • 140W / 113dB
  • Damping factor
  • 160
  • Power Requirement
  • 240V ~ 50-60Hz
  • 230V ~ 50-60Hz
  • 115V ~ 50-60Hz
  • 100V ~ 50-60Hz
  • Dimension (W x H x D)
  • 444 x 149 x 367 mm
  • Carton Size (W x H x D)
  • 550 x 260 x 580 mm
  • Net Weight
  • 16 kg
  • Gross Weight
  • 18.5 kg
