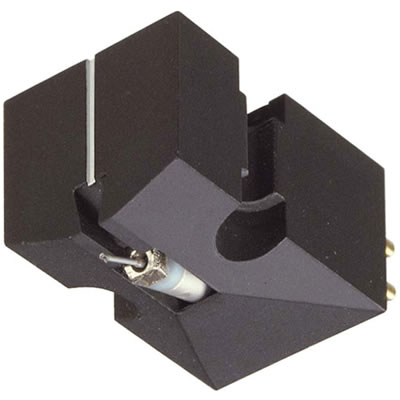

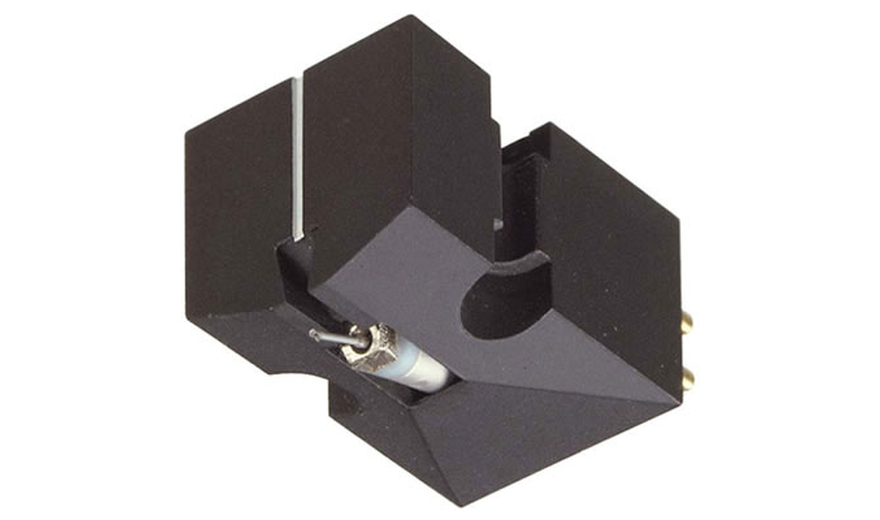

Denon DL-103

The Denon DL-103 is Denon's classic moving coil (MC) cartridge, in production since 1964. It has been a reference standard for decades, with lively, natural and balanced sound.

A legend of analogue sound

Few cartridges have travelled the road of the DL-103. Designed by Denon in 1964 as its first moving coil cartridge, it remains in production today with essentially the same simple, functional design. Its longevity is not down to nostalgia but to a combination of reliability and musicality that has made it a reference for generations of vinyl listeners around the world.

Born for professionals

The DL-103 was originally developed for radio broadcasters, where cartridges had to withstand daily, intensive use and always perform the same way. Those demands shaped a robust, predictable tool that is equally at home in a modern domestic system.

Hand-built

Its coils are wound by hand at Denon's Shirakawa factory in Japan, a process that calls for experience and patience. Every unit also passes the sonic check of the company's sound master before it leaves the factory.

Simple, timeless form

The plain body, weighing 8.5 g, has no decorative elements. Every detail serves secure mounting in the headshell and the correct transfer of vibration from the stylus to the signal-generating mechanism.

A sound with character

The DL-103 delivers warm, musical sound with finesse and detail, while small imperfections on the record stay in the background. Voices and acoustic instruments gain body and naturalness, and listening stays relaxed even after hours.

Moving coil technology

In moving coil cartridges, the coils sit on the stylus assembly and move within a fixed magnetic field. The low moving mass allows the stylus to follow the groove modulations with great sensitivity. The DL-103 applies this principle through a simple, proven design that its measurements confirm.

Diamond and cantilever

The stylus has a conical tip of solid nude diamond with a radius of about 16 µm, mounted on a tapered aluminium cantilever. This combination transfers groove vibration accurately and is forgiving of records that are not in perfect condition, such as well-loved older pressings.

Copper coils

The copper coils convert motion into an electrical signal with an output voltage of 0.3 mV at 1 kHz and an output impedance of 40 Ω. The low voltage is typical of the category and reflects the small, light coil assembly that moves together with the stylus.

Wide response

Frequency response extends from 20 Hz to 45 kHz, well beyond the audible range. Channel separation reaches 25 dB at 1 kHz and channel balance is better than 1 dB, for a stable, accurate stereo image.

Low compliance

With a dynamic compliance of 5 x 10⁻⁶ cm/dyne at 100 Hz, the suspension is relatively stiff, a hallmark of a classic design for professional use. This firm suspension is also why the cartridge pairs ideally with heavier tonearms, as explained below.

Getting the best from your system

To bring out the abilities of the DL-103, it needs to be properly matched with the tonearm and preamplifier. Its characteristics are clear-cut, so choosing partnering components is straightforward, and the result rewards anyone who spends a little time on set-up. Our team can help you find the right combination.

Medium to high mass tonearm

Because of its low compliance and 8.5 g weight, the DL-103 performs best in tonearms with medium to high effective mass. It fits any headshell with a standard two-screw mount, so it works with most turntables on the market.

Tracking force

The recommended tracking force ranges from 2.3 to 2.7 g, with a typical value of 2.5 g. Careful adjustment with a precision gauge ensures correct groove tracing and even stylus wear. Check the alignment with a protractor too, so the tip sits correctly in the groove.

Preamplifier for MC

The low output voltage calls for a phono preamplifier with an MC input or a step-up transformer. A quality mid to high-end phono stage will bring out its musicality, dynamics and detail.

An upgrade that lasts

For many listeners the DL-103 is the first step into the world of moving coil, and a cartridge they keep for years. Its long presence on the market also means there is a wealth of experience among listeners and technicians on how to get the most from it.
