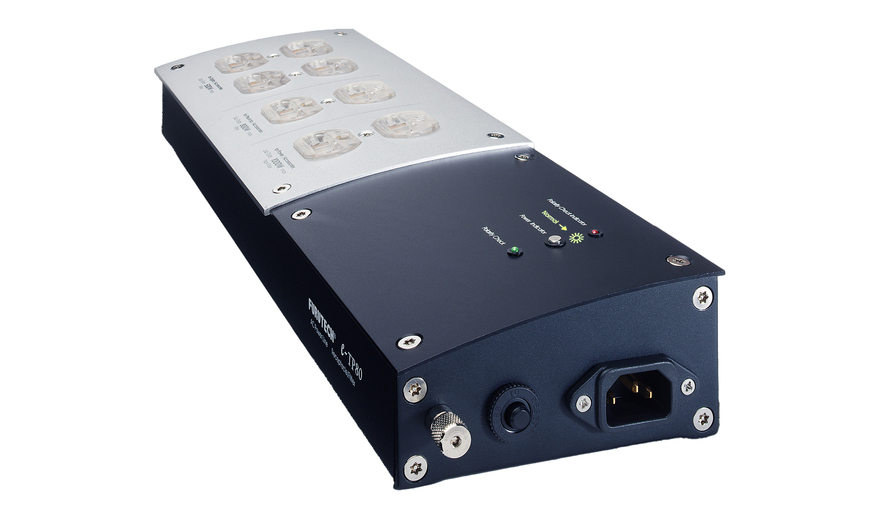

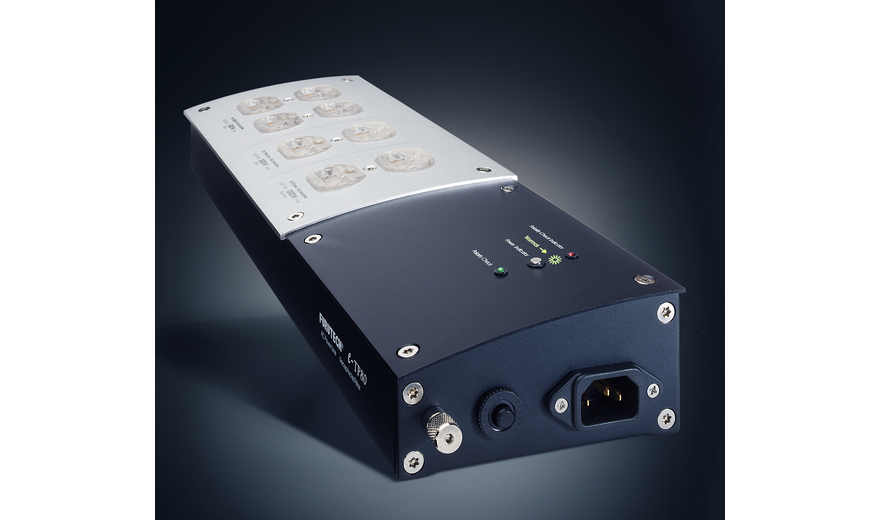

The e-TP80 is a sophisticated, luxuriously made power distributor that eliminates many common problems found with audio and video components caused by massively contaminated electrical power.

The AC waveform becomes severely distorted by ground noise, voltage spikes and sags, high frequency power supply noise from other components in your own system,plus radiated high frequency digital noise from processors and digital interconnects.

There are also distortion products at the top and bottom of the AC waveform created by switch-mode power supplies in electronic devices on the same circuit. Additionally, you’re never alone; your residential AC mains supply is shared with other apartments,

homes, and businesses on the same utility transformer. That’s why many audio and video enthusiasts notice their systems are more enjoyable late at night or on weekends!

The beautifully crafted special grade aluminum chassis effectively shields against another common problem, RFI (Radio Frequency Interference), and a layer of Formula GC-303 blocks EMI (Electro Magnetic Interference).

Internal wiring is FURUTECH μ-14 wire(14 AWG) that guarantees low resistance. Furutech Hyper Quality Audio Grade Receptacles are wired to the IEC AC input of the e-TP80. Receptacles feature 24K gold-plated phosphor bronze, non-magnetic conductors for stable, long lasting, optimized power transfer.

Formula GC-303

GC-303 is a special material Furutech bonds to the interior bottom-plate of the chassis that absorbs EMI

(Electromagnetic Interference) generated by the internal fittings of the unit.

Furutech’s Two-Stage Cryogenic and Demagnetizing Alpha Process

Using cutting-edge technology and materials, Furutech developed a low-temperature two-stage process that significantly improves every facet of audio and video performance. The treatment begins during the manufacturing process with a deep, conditioning cryogenic freeze of all metal parts. Using high-end refrigerants -- liquid N2 or He -- Furutech achieves temperatures of between -196 to -250°C. The treated parts actually change their molecular structure at these extremes of temperature relieving internal stress. The molecules bond together more tightly and the overall structure becomes more stable. This improves electrical conductivity and so power and signal transfer.

Step two in the Alpha Process exposes these same parts to the patented Ring Demagnetization treatment. Ordinary high power magnets used for this purpose often increase magnetic effects; they leave some areas more magnetized than others. This patented process uses controlled attenuation to completely eliminate magnetization for immediately more vivid and colorful improvements. Ring Demagnetization further enhances conductivity of all treated materials.

ALL metallic parts used in Furutech products go through the Alpha Process treatment to keep all connectors, conductors, and metal parts in a perfect stress-free, stable and highly conductive state.

The Final Result

The 2-Step Alpha Cryogenic and Demagnetizing Process works in tandem with other designed-in features to create the most optimized AC power transfer possible. Furutech’s scientific outlook, total awareness and devotion to detail results in a greater sense of power, dynamics, and resolution, with cleaner, blacker backgrounds and a larger, more stable soundstage, vivid tonal colors and deeper extension at both ends of the frequency range. The e-TP80 will allow the delicacy, refinement and nuance of a performance through, along with micro- and macro-dynamics that will leave you breathlessly engaged. Displays of all types will exhibit greater, sharper resolution with less ghosting, color shift, “snow”, or vertical and horizontal lines.

Specifications

  • ・VOLTAGE: 125V AC 50/60Hz

    ・CURRENT: 15A

    ・LOADING WATT.: 1875W

    ・GROUNDING OUTLET: 8 Holes

    ・OVERLODE PROTECTIVE TYPE: AUTOMATIC CIRCUIT

    ・INSULATION VOLT.: AC 1500V 1 MINUTE 5mA

    ・LEAKAGE CURRENT: UNDER 1.0mA

    ・INSULATION RESISTANCE: 300MΩ ABOVE DC 500V

    ・MOVEMENT TEMP.: -10°C~40°C

    ・PRESERVATIVE TEMP.: -20°C~50°C

    ・BODY MATERIAL: AL. ALLOY PLATE (PAINTED)

    ・OUTWARD SIZE: 400X130X60 mm

    ・WEIGHT 1.72Kgs
