Axint AD4D Dual Beta58 Wireless
SKU: APA2026-00107
-
36 Instalments
-
2 Years Warranty
-
36 Instalments
-
2 Years Warranty
8.737 €
Upon Order
Notify me when the product is available
Add to cart
List

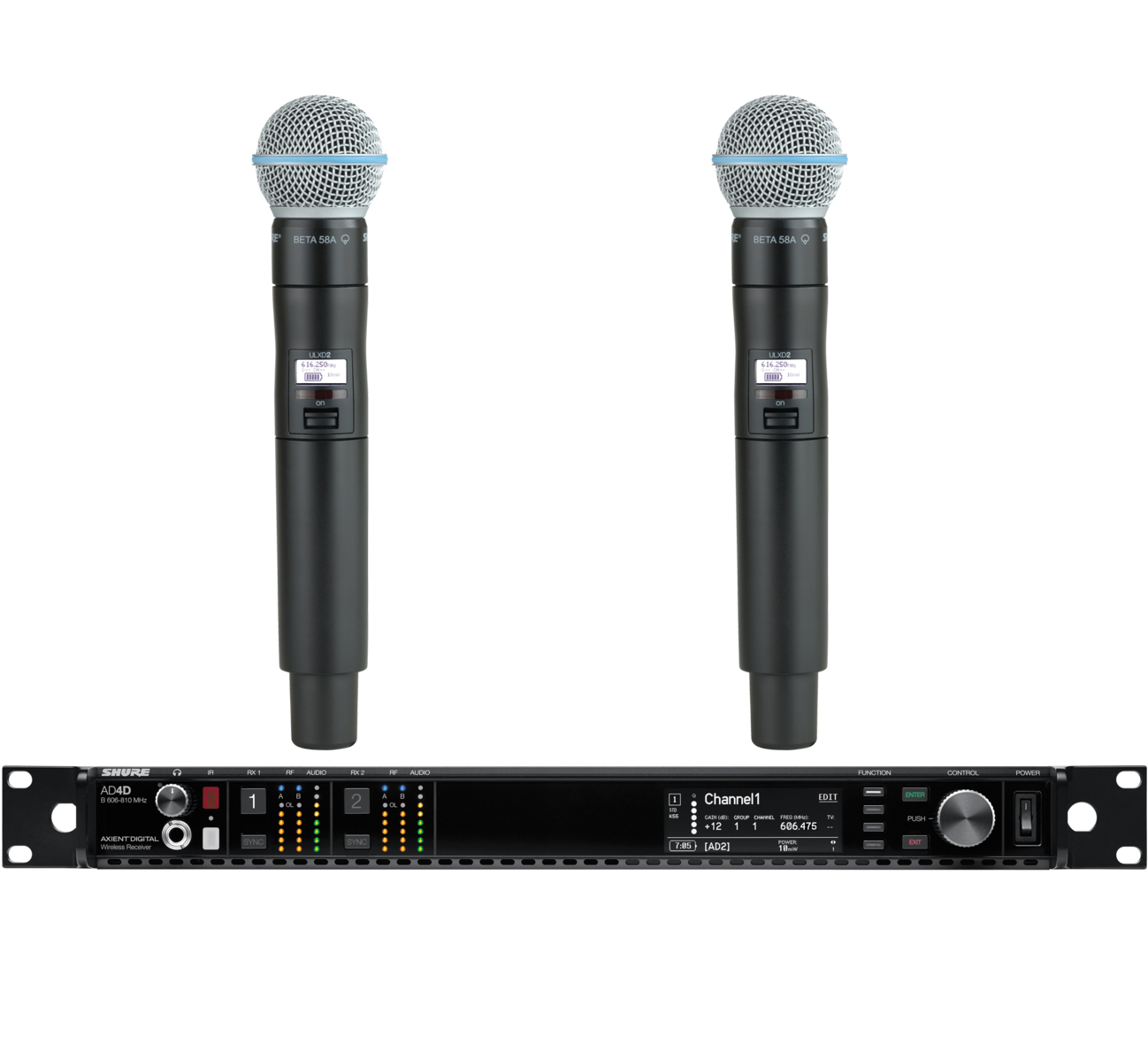

The AD4D two-channel digital receiver sets a new standard for spectral efficiency. Breakthrough performance features include wide tuning, low latency, and High Density (HD) mode, ensuring consistent performance in the most demanding RF environments. Networked control, AES3 + AES67 + Dante™ output, and signal routing options bring a new level of management and flexibility to your entire workflow.
The Shure ULXD2 handheld transmitter with Beta 58A microphone cartridge is designed for compatibility with Shure's ULX-D wireless systems. It's constructed from aluminum with an integrated antenna and features AES 256-bit encryption for secure transmission. It's tuned to Shure's G50 band and transmits between 470 and 534 MHz. It includes a Shure Beta 58A microphone capsule. The Beta B58 handheld wireless microphone transmitter works with ULX-D wireless systems.
Specifications
- Wide tuning range up to 184 MHz
- True digital diversity reception per channel for drop-out resistance Network
- connectivity control with Wireless Workbench® software and ShurePlus™ Channels iOS app
- Front panel headphone jack for Dante™ Cue and Dante™ Browse monitoring
- Configurable Ethernet switch for redundant Dante or AES67 digital output
- AES3 output Channel
- quality meter displays signal-to-noise ratio (RF)
- AC connector lock
- Modular DC version available for redundant power supply support
- Dimensions (Height × Width × Depth) 1.7 × 19.0 × 13.1 inches (44 × 483 × 333 mm)
- Weight 10.1 lb (4.6 kg)
- No antenna
- Power requirements 100 to 240 VAC, 50–60 Hz
- Maximum current 0.68 A
- Maximum heat dissipation: 23 W (78 BTU/hour)
- Idle power: 15 WAudio output
- Adjustable gain range –18 to +42 dB in 1 dB steps (plus
- Mute setting)
- 1/4” (6.35 mm) configuration: Transformer-coupled balanced
- (Tip = audio, Ring = no audio,
- Sleeve = ground)
- XLR: Transformer-coupled balanced
- (1 = ground, 2 = audio +, 3 = audio -)
- Typical impedance, XLR Line Out 100 Ω
- Full-scale output
- Load 200 kΩ
- 1/4” (6.35 mm): +8 dBV
- XLR (LINE setting): +18 dBV
- XLR (MIC setting): –12 dBV
- Mic/Line Switch pad 30 dB
- Power supply protection: yes
