Valerion Ceiling Mount Bracket

Overview

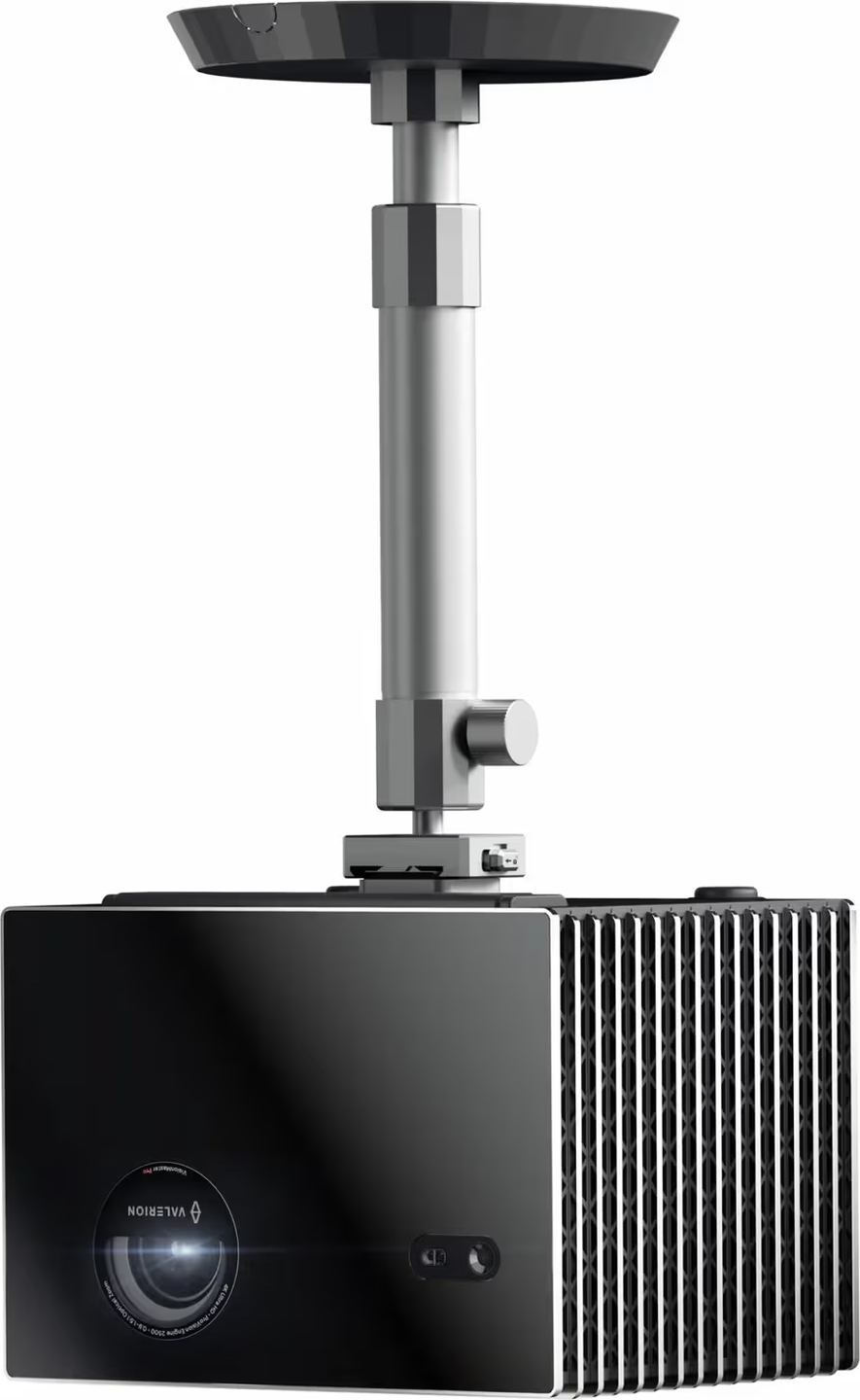

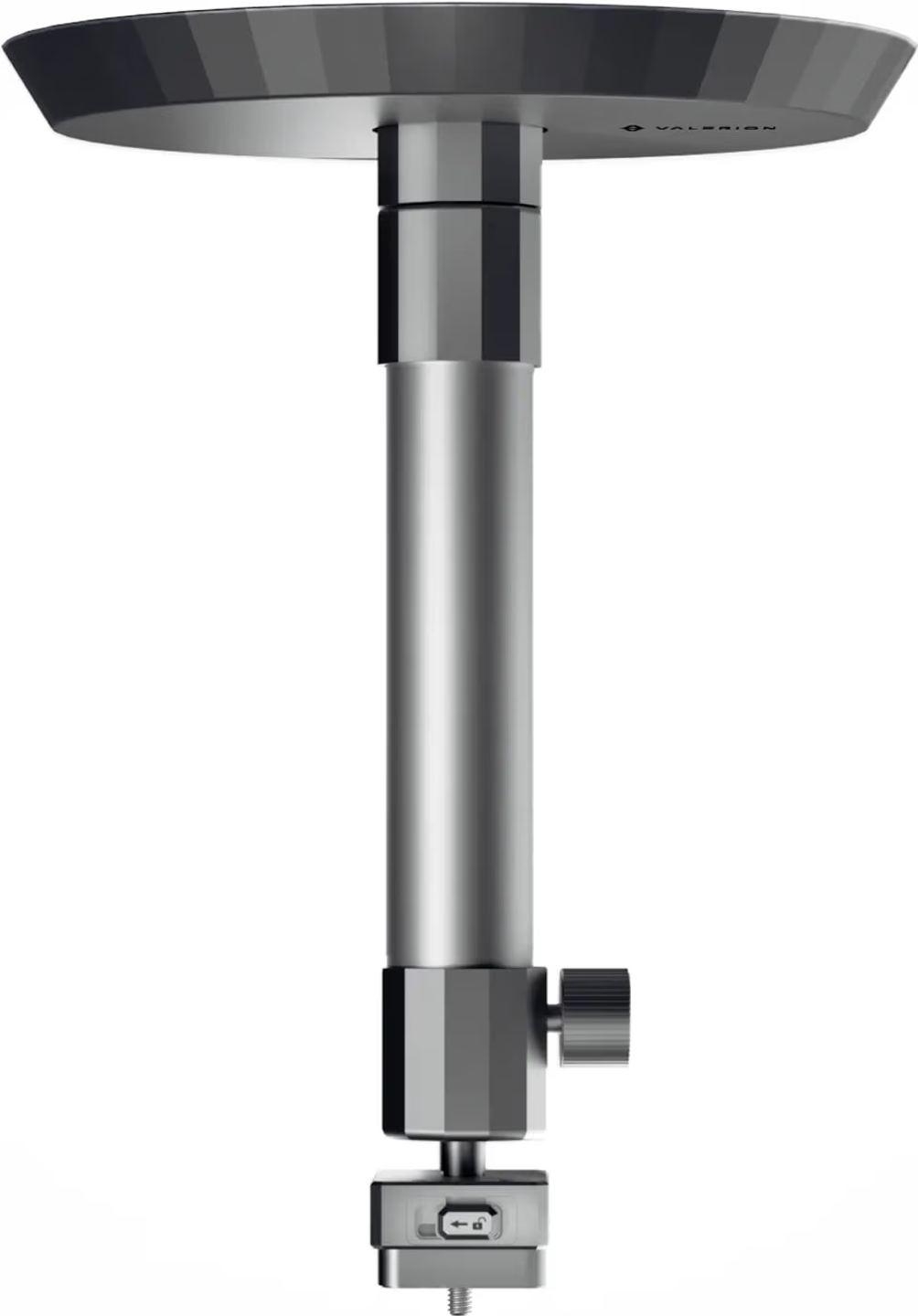

The Valerion CMB-01 ceiling mount is the ideal solution for optimal installation of your projector. Specifically designed for Valerion projectors from the VisionMaster and StreamMaster ranges, but compatible with a wide selection of devices thanks to its standard 1/4”-20 screw thread, this mount combines robustness, flexibility, and elegance. Its three distinct height adjustment levels and full orientation system allow you to perfectly adapt the projection angle to your space, while its high-strength aluminum alloy construction ensures stability and longevity.

Technical Design and Materials

The Valerion CMB-01 stands out for its meticulous construction using high-quality aluminum alloy for the structural elements, providing exceptional sturdiness while keeping the weight reasonable. The decorative elements are made from PC+ABS, a technical composite that combines strength with a refined finish. This combination of materials allows the mount to securely hold projectors weighing up to 10 kg, covering the vast majority of current home and professional models.

The CMB-01’s design prioritizes both functionality and aesthetics. Its “space gray” finish gives it a sophisticated look that blends seamlessly into any environment, whether residential or professional. This attention to detail reflects Valerion’s philosophy of creating products that are both high-performing and visually appealing.

The ceiling mounting base is particularly well designed, featuring a multi-slot system with at least four attachment points. This design ensures optimal weight distribution and maximum stability, virtually eliminating any risk of wobbling or vibration that could affect the quality of the projected image.

Adaptability and Precise Positioning

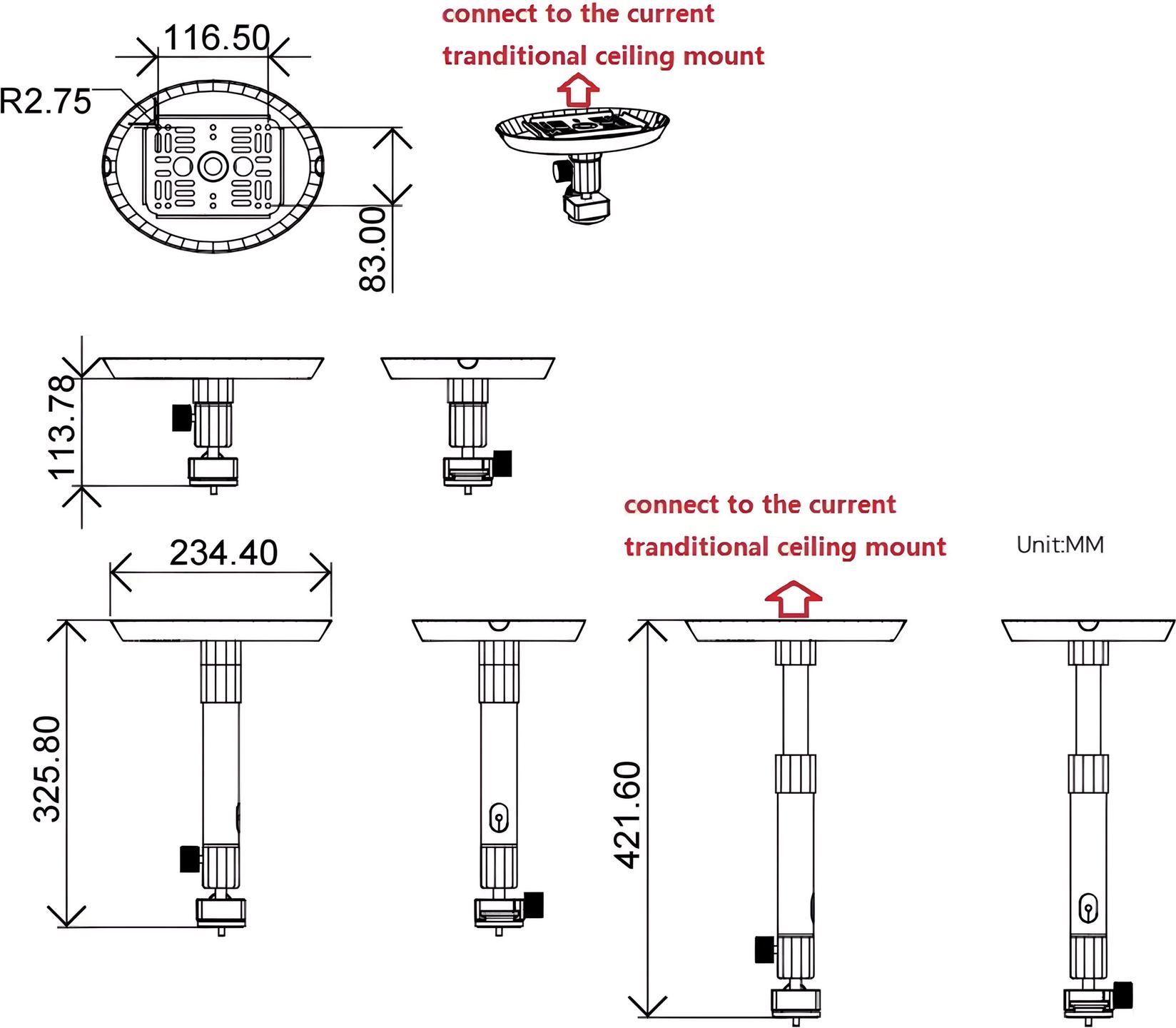

The CMB-01’s greatest strength lies in its remarkable adaptability. Unlike many mounts that offer only a fixed or hard-to-adjust height, this model provides three distinct and precise adjustment levels: 12 cm (without extension rod), 31 cm, or 40.5 cm (with the extension rod). This feature allows you to adapt the mount to the ceiling height and room dimensions, ensuring optimal projector positioning.

The mount’s adaptability isn’t limited to height. The CMB-01 offers full 360° horizontal rotation and ±20° vertical tilt. This freedom of movement allows you to precisely adjust the projection angle, even when the mount isn’t installed exactly at the center of the screen. This flexibility is especially valuable in spaces with unusual layouts or when structural constraints limit ceiling installation options.

The adjustment mechanism is designed to remain stable over time, with no gradual sagging that could disrupt the initial settings. Once adjustments are made, the mount firmly holds the chosen position, ensuring consistent and reliable projection, session after session.

Frequently Asked Questions

Is the Valerion CMB-01 mount compatible with my projector that isn’t a Valerion brand? Yes, absolutely. While primarily designed for Valerion projectors, the CMB-01 is compatible with any projector equipped with a standard 1/4”-20 screw thread, which includes the vast majority of models on the market. Just make sure your projector has this type of mount and does not exceed the 10 kg weight limit.

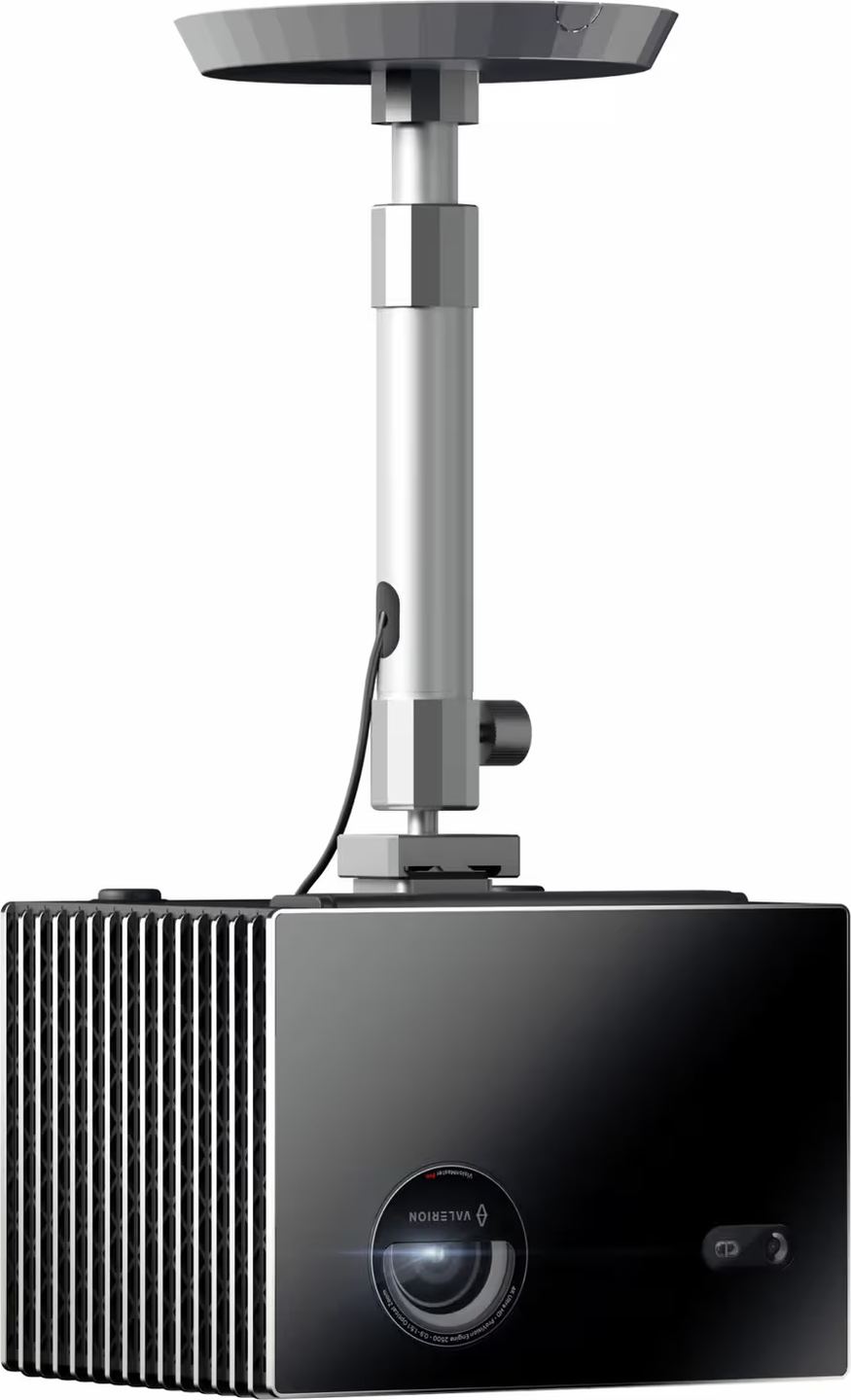

Does the mount allow for complete cable concealment? The CMB-01 features a cable management system that allows cables to run inside the vertical tube, keeping them out of sight. However, please note that cables will be visible along their path from the ceiling entry point to the mount itself. For a completely invisible installation, you would need to run the cables through the ceiling up to the mount’s attachment point.

What is the maximum distance between the ceiling and the projector that I can achieve with this mount? With the extension rod installed, the CMB-01 allows for a maximum distance of 40.5 cm between the ceiling and the projector’s optical center. This height is suitable for most standard configurations. If you need a greater distance, compatible extensions can be considered, though they are not included in the standard kit.

How do I adjust the projection angle once the projector is installed? Once the projector is mounted, you can finely adjust its position using the tilt mechanisms (±20° vertically) and rotation (360° horizontally). These adjustments are made using locking screws which, when loosened, allow movement, and then firmly hold the desired position once tightened.
