Adam A7V

Write your review  |
SKU: APA2023-00040
Adam
  • 36  Δόσεις
  • 2 years warranty
    2 Έτη Εγγύηση
Adam A7V
Adam A7V
Adam A7V
Adam A7V
Adam A7V
Adam A7V

A New Industry StandardThe A7V is a contemporary 2-way monitor that represents the evolution of ADAM Audio’s award winning A7X. It features a 7” Multi-Layer Mineral woofer and rotatable X-ART tweeter, which is made by hand in Berlin.DSP-based voicing, equalization and room correction options can be ...περισσότερα

  • 36  Δόσεις
  • 2 years warranty
    2 Έτη Εγγύηση
665 €

Τιμή με Φ.Π.Α και Κανονικά Μεταφορικά

Κατόπιν Παραγγελίας
add to wishlist icon Ειδοποιήστε με όταν υπάρχει σε απόθεμα
Προσθήκη στο καλάθι
apa support icon

ΕΧΕΙΣ ΑΠΟΡΙΕΣ;

Οι ειδικοί μηχανικοί μας μπορούν να σε βοηθήσουν!

guide image

ONLINE GUIDE

Διαβάστε τον οδηγό αγοράς για Ηχεία

A New Industry Standard

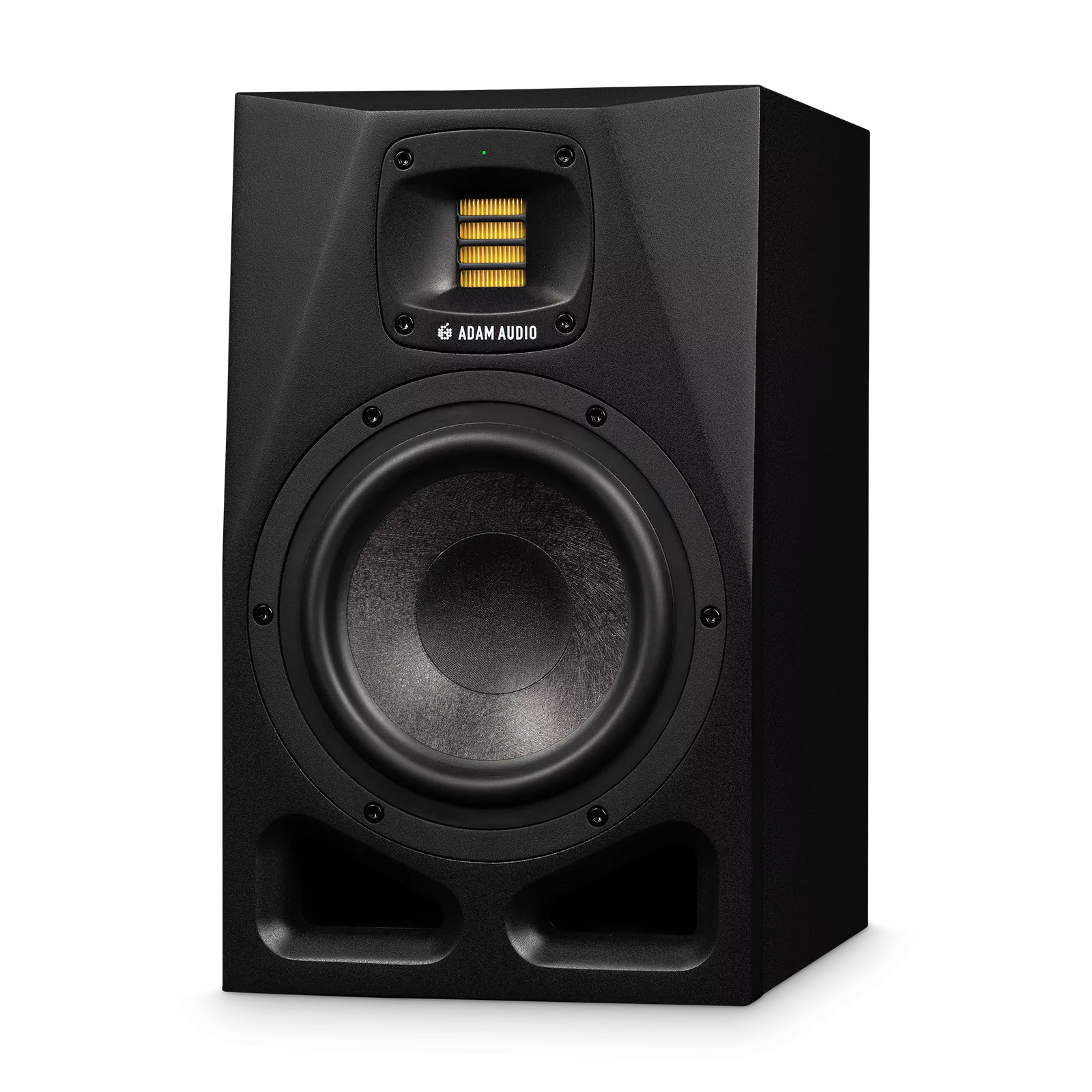

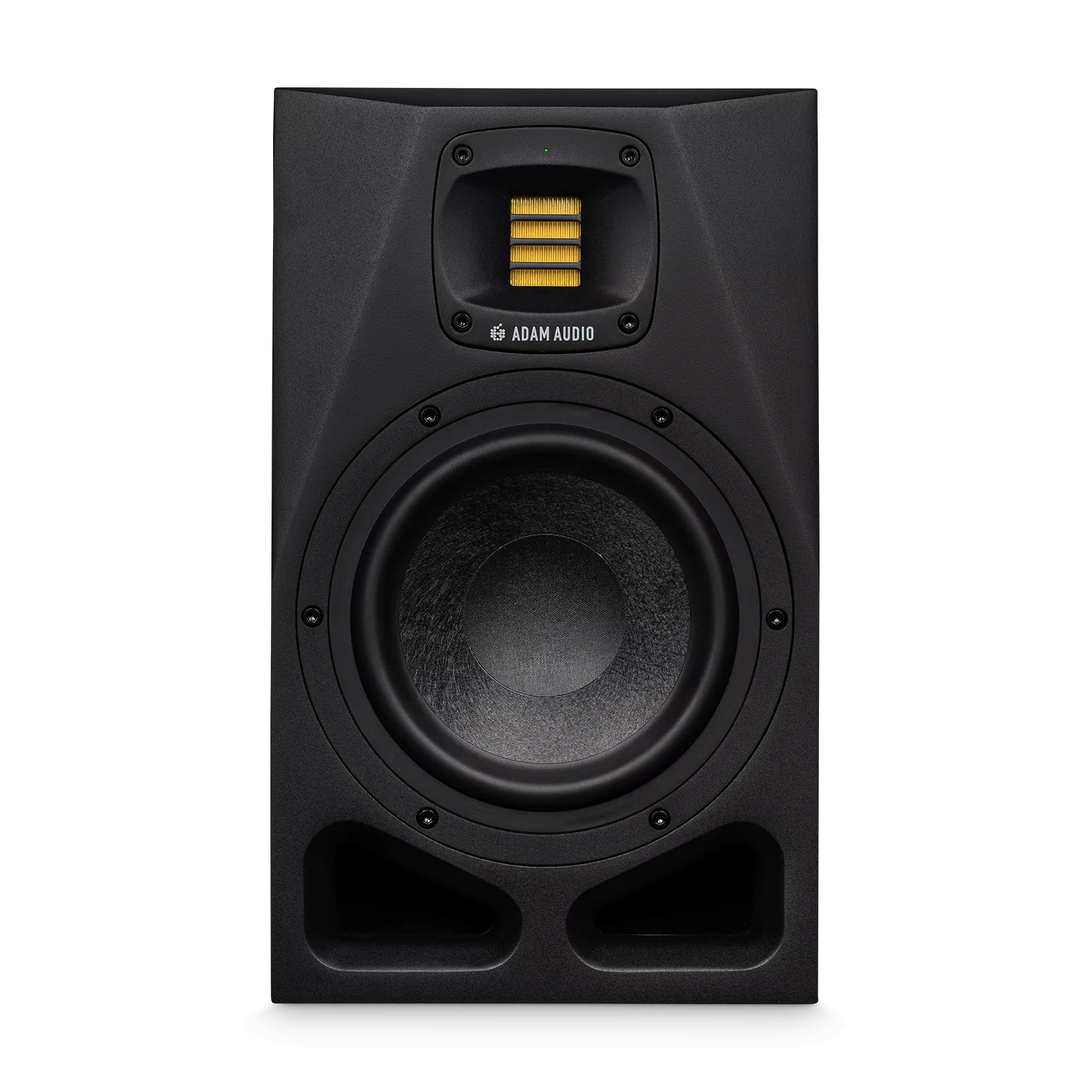

The A7V is a contemporary 2-way monitor that represents the evolution of ADAM Audio’s award winning A7X. It features a 7” Multi-Layer Mineral woofer and rotatable X-ART tweeter, which is made by hand in Berlin.

DSP-based voicing, equalization and room correction options can be controlled remotely and in real time via the free-to-download A Control software, and updatable firmware allows for new filters and tunings to be implemented over the lifetime of the monitor.

  • German Handmade Precision X-ART Tweeter with rotatable HPS waveguide
  • 7'' Woofer (Multi-Layer Mineral)
  • Cumulated Amp. Power Peak: 130 W
  • Frequency Response @ -6 dB: 40 Hz - 45 kHz
  • Max. peak SPL per speaker at 1 m: 105 dB SPL

Χαρακτηριστικά

  • General Data:
  • Display: Front panel multi-colour LED
  • Cabinet Design: Dual front ported
  • Cabinet Material: Vinyl wrapped MDF and painted MDF front panel
  • Mounting options: Threaded inserts on the bottom of the cabinet (4 x M8)
  • Power consumption (max, idle, sleep): 220 W, 10 W, 3.5 W
  • AC Input Voltage: 100 – 240 V, 50/60 Hz
  • Power Rating: 300 W max.
  • Operating Conditions:-10° C to +40° C (+14° F to +104° F); <75 % RH, non-condensing
  • Weight: 8.7 kg (19 lb 3 oz)
  • Dimensions (Height x Width x Depth): 337 mm x 200 mm x 280 mm (13 1/4″ x 7 7/8″ x 11″)
  • Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
  • Delivery Contents: A7V loudspeaker, power cable, Quick Start Guide
  • Audio Input Connectors:
  • Analog: XLR, RCA
  • Input Impedance: 9 kOhm / 3.3 kOhm
  • Max. Input Level: +19 dBu
  • Amplification:
  • Woofer
  • Amplifier Type: PWM
  • Peak (10% THD, limiter deactivated): 110 W
  • RMS (1% THD, limiter deactivated): 90 W
  • Tweeter
  • Amplifier Type: Class A/B
  • Peak (10% THD, limiter deactivated): 20 W
  • RMS (1% THD, limiter deactivated): 15 W
  • Control Options [via Network]:
  • Networking Connector: RJ45
  • Connection Type: Ethernet
  • Communication Protocol: OCA using standard IP data
  • Control Software: A Control (Windows and MacOS available)
  • Room Adaption Options: Backplate, Extended, Sonarworks SoundID Reference integration
  • Advanced Room Adaptation: 6 x PEQ, Level, Delay
  • Third-party Calibration Compatibility: Import from Sonarworks SoundID Reference
  • Acoustics:
  • Frequency Response @ -3 dB: 44 Hz – 41 kHz
  • Frequency Response @ -6 dB: 40 Hz – 45 kHz
  • Crossover Frequencies: 2.8 kHz
  • Max. peak SPL per speaker at 1 m (sine bursts): 105 dB SPL
  • Max. peak SPL per speaker at 1 m (IEC-weighted noise): 113 dB SPL
  • Max SPL in full space at 1 m with sine bursts (average 100 Hz to 6 kHz) @ 3% THD (RMS): 105 dB SPL
  • Max SPL in full space at 1 m with sine bursts (average 100 Hz to 6 kHz) @ 3% THD (Peak): 108 dB SPL
  • Max SPL in full space at 1 m with sine bursts (average 50 Hz to 100 Hz) @ 3% THD (RMS): 95 dB SPL
  • Max SPL in full space at 1 m with sine bursts (average 50 Hz to 100 Hz) @ 3% THD (Peak): 98 dB SPL
  • Dolby DARDT max SPL in full space: 115 dB SPL
  • Dolby DARDT max SPL in full space (bass managed): 119 dB SPL
  • Drivers:
  • Woofer
  • Basket Diameter: 7″
  • Voice Coil Diameter: 1.3″ (33 mm)
  • Cone Material: MLM
  • Tweeter
  • Type: X-ART
  • Diaphragm Area: 4 inch² (2420 mm²)
  • Equivalent Diaphragm Diameter: 2″ (56 mm)
  • Velocity Transform Ratio: 4 to 1
  • Diaphragm Weight: 0.17 g
  • Waveguide: HPS (rotatable)
  • Waveguide Dispersion: 120° horizontal, 70° vertical
  • Signal Processing:
  • AD converter: 24-bit
  • Internal sample rate: 96 kHz
  • Delay range, resolution: 0 – 10 ms, 0.1 ms
  • Protection: Independent peak and thermo limiters for each driver, and amplifier thermo limiters

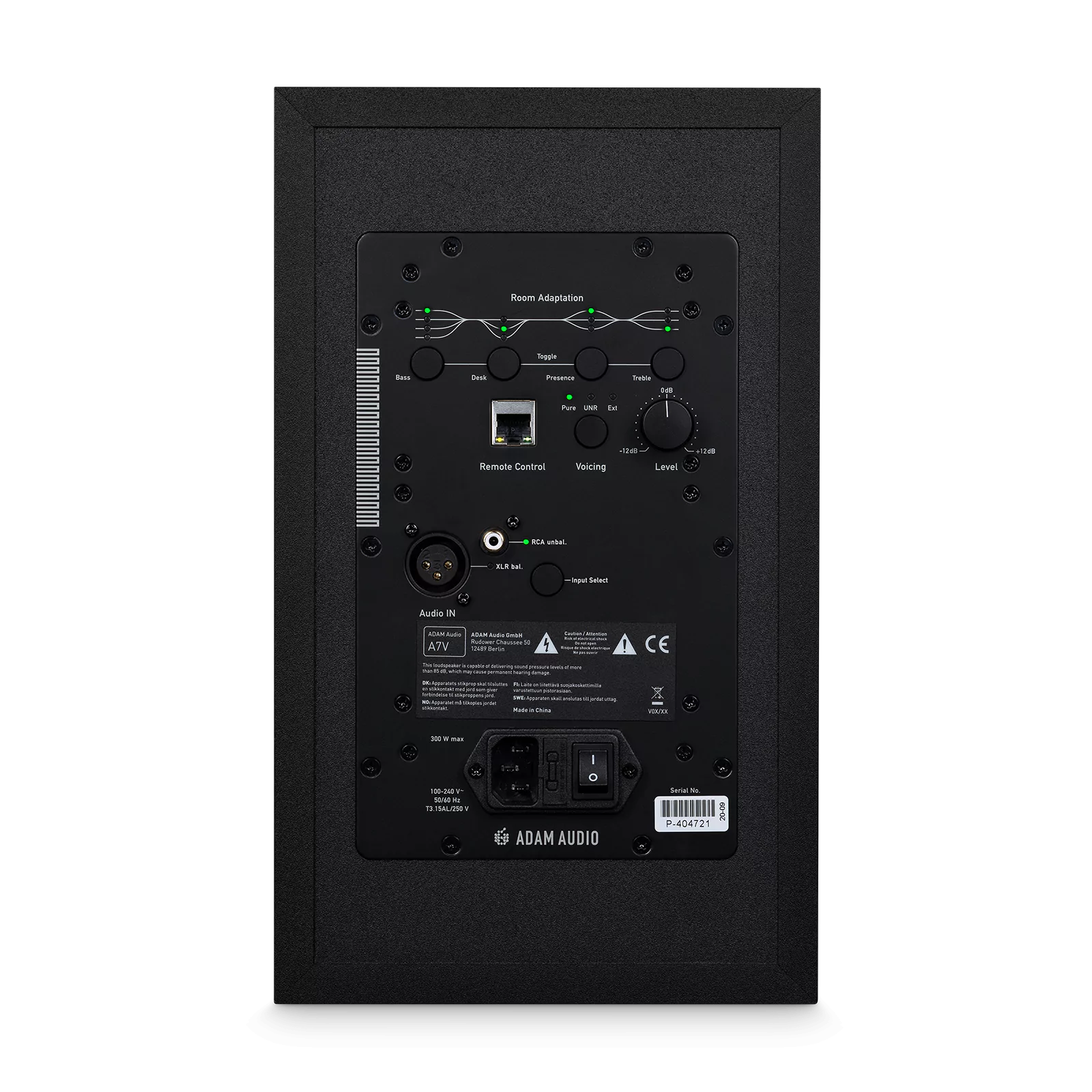

  • Control Options [via Backplate]:
  • Input Sensitivity: 0 dBu = 100 dB SPL at 1 m @ 0 dB level setting
  • Level: -12 dB to +12 dB
  • Input Selection: Balanced, unbalanced
  • Voicings: Pure, UNR
  • Room Adaption:
  • Bass: +2, 0, -2, -4 dB
  • Desk: 0, -2, -4 dB
  • Presence: +1, 0, -1 dB
  • Treble: +1.5, 0, -1.5 dB
