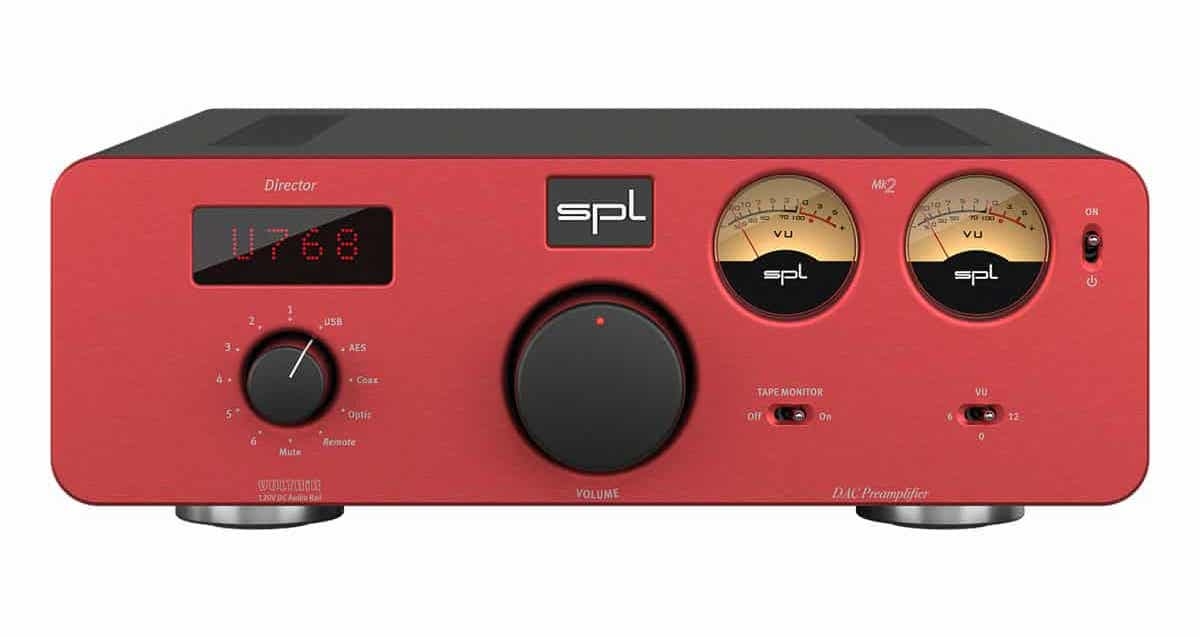

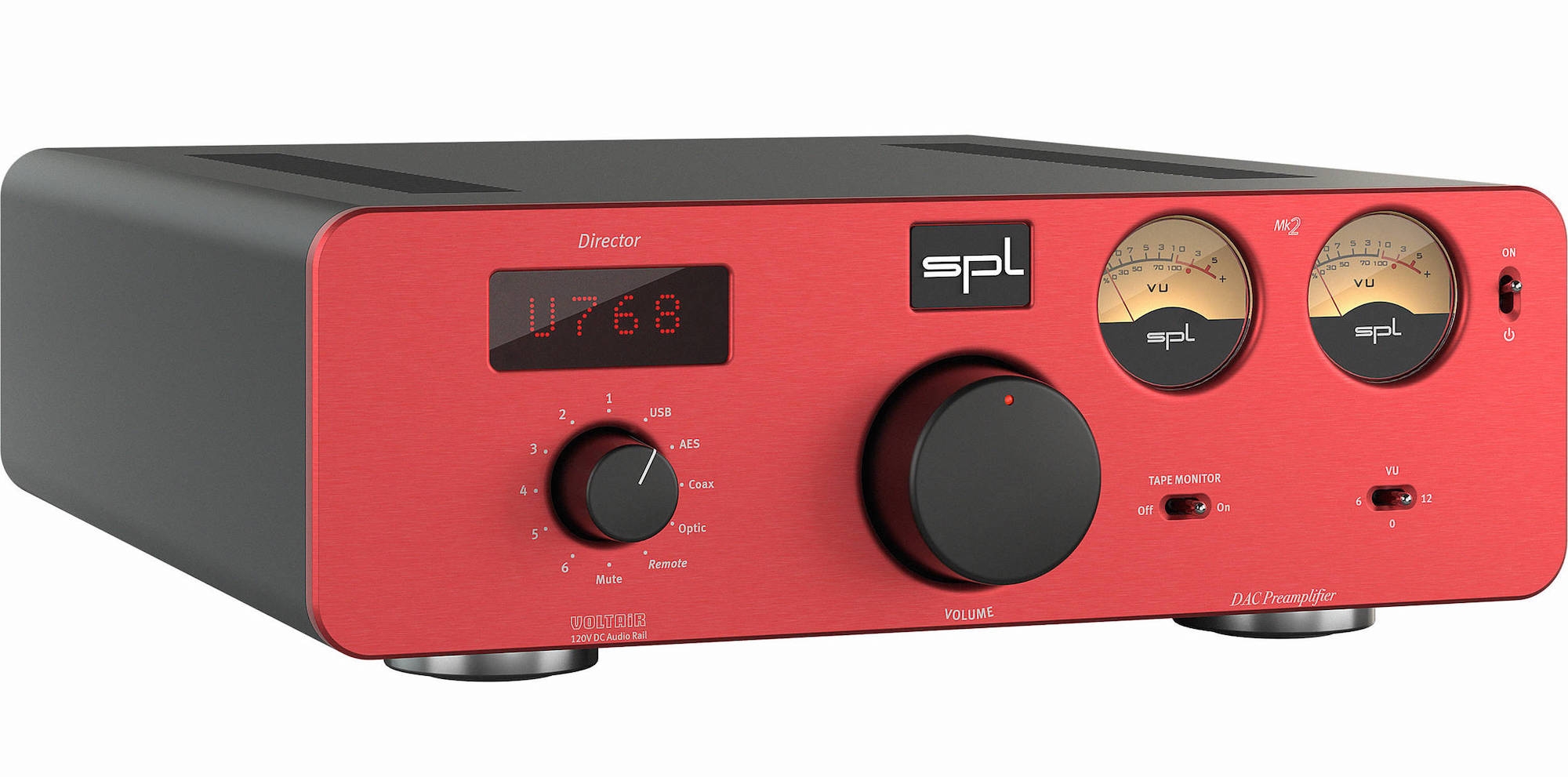

SPL Director Mk2 Red

SKU: APA2020-00928
  • free shipping icon
    Δωρεάν Μεταφορικά
  • 36  Δόσεις
  • 2 years warranty
    2 Έτη Εγγύηση

The director sets the tone. The central unit of the HiFi system is the preamplifier. With remote source selection and volume control, retro-look-VU-meter, premium DA-converter and the all superior VOLTAiR technology, the Director Mk2 caters for musical bl...περισσότερα

  • free shipping icon
    Δωρεάν Μεταφορικά
  • 36  Δόσεις
  • 2 years warranty
    2 Έτη Εγγύηση
2.650 €

Τιμή με Φ.Π.Α και Δωρεάν Μεταφορικά

Κατόπιν Παραγγελίας
Προσθήκη στο καλάθι
Χρώματα:  SPL Director Mk2 Red
SPL Director Mk2 Silver SPL Director Mk2 Silver
apa support icon

ΕΧΕΙΣ ΑΠΟΡΙΕΣ;

Οι ειδικοί μηχανικοί μας μπορούν να σε βοηθήσουν!

The director sets the tone.

The central unit of the HiFi system is the preamplifier. With remote source selection and volume control, retro-look-VU-meter, premium DA-converter and the all superior VOLTAiR technology, the Director Mk2 caters for musical blockbusters.

Milled from solid

is the big 45mm Volume control. Its mass together with the  motorized Alps RK27 “Big Blue” potentiometer enhances the “spoon in the honey” feeling even further.

The red marker LED makes the setting visible even in darkened environments.

Volume RC

The volume can be remote controlled with any infrared remote control, that the Director Mk2 simply learns.

Learning made easy

This video explains how you can use any infrared remote control to remotely control the volume and the source selection.

Source of joy

Up to ten (10 !) stereo sources can be connected to the Director Mk2. Six of them are for analog and four for digital input signals.

The source selection is shown in the dot matrix LED display: IN 1 through IN 6 for the analog inputs.

AES, USB, COAX, OPTI for the digital inputs, where the detected sample rate is displayed after about two seconds. For example U768 = USB input with 768kHz sampling rate.

The source selection can also be operated remotely if the rotary switch is set to the “Remote” position.

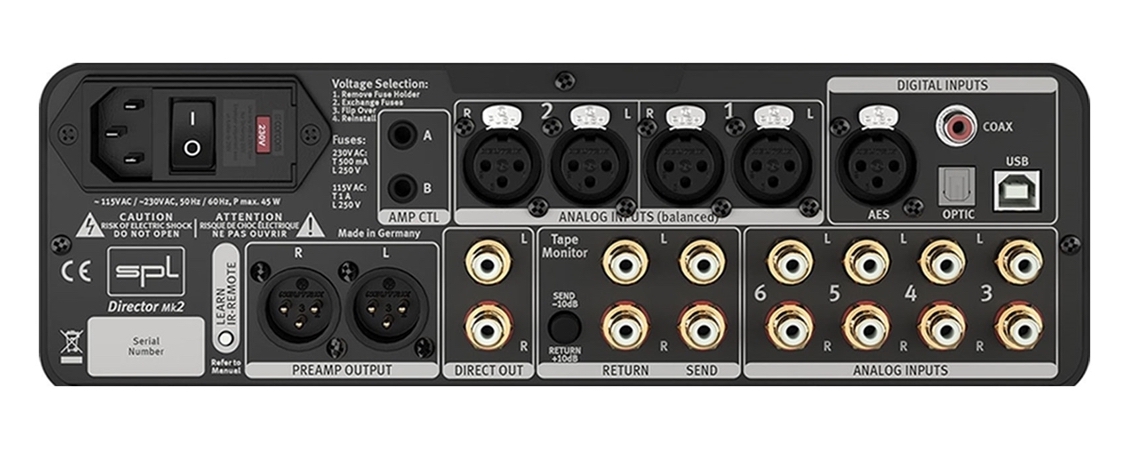

The Director Mk2 offers two pairs of balanced inputs with XLR connectors and four standard inputs with gold-plated RCA connectors.

On the digital side there are four additional inputs. PCM audio is received in S/P-DIF format via coaxial Cinch, optical Toslink and balanced XLR (AES). Both PCM audio and DSD audio can be converted via USB.

The DAC768

The highly acclaimed AKM AK4490 Velvet Sound™ premium DAC chip is used as the converter chip in the digital-to-analog converter, which thanks to its new architecture reproduces the finest sound details.

It converts PCM audio with a resolution of 32 bits and a sampling rate of up to 768kHz, which is equivalent to 16 times CD resolution. Direct Stream Digital is also supported up to a resolution of DSD4 or DSD256.

The DLP120

The analog output of the DAC chip must be filtered by a low pass filter. Director Mk2 has two of them: One for PCM audio and one for DSD audio, since different roll-off frequencies are required.

And in contrast to all other DACs in the world, the low pass filters here are built using VOLTAiR technology, which provides a plus in dynamics and headroom.

Good ol' times

Two mechanical VU meters visualize the input levels for the left and right audio channel.

With the VU switch you can optimize the display for different signal levels.

Tape Monitor

A tape monitor circuitry is quite retro. Who still owns a cassette recorder or a tape machine? Who still has an equalizer?

To put it another way: Who would like to do it and cannot do it because no manufacturer offers a tape monitor circuit anymore?

Well, those who want can again.

Today’s audio levels are much higher than in the past and many recorders will be overloaded by them.

In that case simply press the switch and the level to the recorder is lowered by 10 dB.

To compensate, the level from the recorder is increased by 10 dB. Et voilà.

Preamp & Direct Out

On the output side, power amplifiers or active loudspeakers can be connected to the preamp output sockets using XLRs.

The Direct Out via RCA picks up the output signal before the volume control and thus offers the possibility to connect a headphone amplifier.

AMP CTL

Practical are the AMP CTL sockets to which power amplifiers with 12 V trigger inputs can be connected in order to remotely switch them on and off together with the Director Mk2.

Specifications:

Analog Inputs & Outputs: XLR (balanced), RCA

  • Maximum input & output gain: 32.5 dBu
  • Input impedance (RCA): 47 kΩ
  • Input impedance (XLR): 20 kΩ
  • Output impedance: 75 Ω
  • Common mode rejection (XLR): -82 dBu
  • Frequency range (-3 dB): 4 Hz – 300
  • Crosstalk (1 kHz): -108 dBu
  • THD (0 dBu, 1 kHz): 0.000992 %
  • Noise (A-weighted): -102.5 dBu
  • Dynamic range: 135 dB

Digital Inputs, DAC768

  • AES/EBU (XLR), PCM sample rates: 44.1/48/88.2/96/176.4/192 kHz
  • Coaxial SPDIF (RCA), PCM sample rates: 44.1/48/88.2/96/176.4/192 kHz
  • Optical SPDIF (Toslink F06), PCM sample rates: 44.1/48/88.2/96/with Glass fibre <1m: 176.4/192 kHz
  • USB (B), PCM sample rates: 44.1/48/88.2/96/176.4/192/352.8/384/705.6/768 kHz
  • USB (B), DSD over PCM (DoP), sample rates: 2.8 (DSD64), 5.6 (DSD128), 11.2 (DSD256) MHz
  • 0 dBFS calibrated to: 15 dBu

Internal Linear Power Supply with Shielded Toroidal Transformer

  • Operating voltage for analog audio: +/- 60 V
  • Operating voltage for relays and LEDs: + 12 V
  • Operating voltage for DAC768+ 7 V, +3.3 V

Mains Power Supply

  • Mains voltage (selectable, see fuse chamber): 230 V AC / 50; 115 V AC / 60 Hz
  • Fuse for 230 V: T 500 mA
  • Fuse for 115 V: T 1 A
  • Power consumption: max. 40 VA
  • Stand-by power consumption: < 0,3 W

Dimensions & Weight

  • W x H x D (width x height incl. feet x depth): 278 x 100 x 330 mm
  • Unit weight: 4.55 kg
  • Shipping weight (incl. packaging): 5.7 kg
