SPL Crescendo Duo V2
SKU: APA2023-00430
-
Δωρεάν Μεταφορικά -
36 Δόσεις
-
2 Έτη Εγγύηση
Dual-Channel Microphone Preamplifier with 120V technologyCrescendo duo combines the precise sound that German Rundfunk-Technik is famous for with the innovative SPL 120V technology. The internal operating voltage of 120 volts allows Crescendo microphone preamplifiers to break completely new ground. ...περισσότερα
-
Δωρεάν Μεταφορικά
-
36 Δόσεις
-
2 Έτη Εγγύηση
2.106 €
Τιμή με Φ.Π.Α και Δωρεάν Μεταφορικά
Κατόπιν Παραγγελίας
Ειδοποιήστε με όταν υπάρχει σε απόθεμα
Προσθήκη στο καλάθι
Προσθήκη στη λίστα επιθυμίας
Dual-Channel Microphone Preamplifier with 120V technology
Crescendo duo combines the precise sound that German Rundfunk-Technik is famous for with the innovative SPL 120V technology. The internal operating voltage of 120 volts allows Crescendo microphone preamplifiers to break completely new ground. This results in microphone preamps that sound detail-rich, vivid and equally honest.
Crescendo duo lets microphones shine in a whole new light – because they have never been amplified like this before.
The Undistortable
Thanks to the SPL 120V technology, it is almost impossible to overdrive this microphone preamplifier.
Crescendo duo is a dual-channel microphone preamplifier with 120V technology.

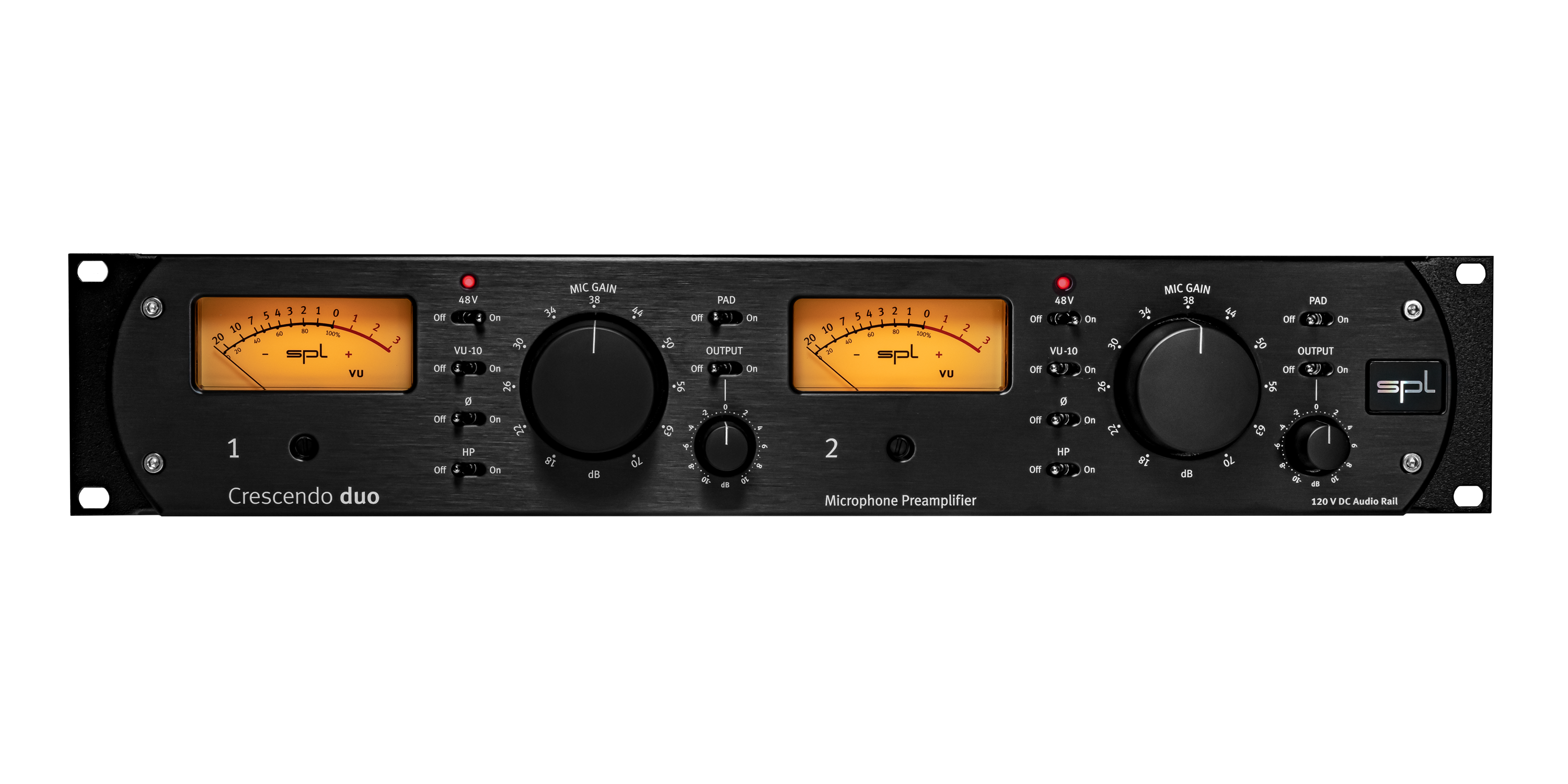

Both channels feature the same range of functions. Besides phantom power (48 V) for condenser microphones, polarity reversal, a high-pass filter and a PAD switch, they provide the possibility to adjust the VU meter to display very high levels – so they leave nothing to be desired. The gain can be adjusted comfortably and precisely via a 12-step switch. With the switchable output control, the output level of the Crescendo duo can be perfectly adapted to following AD converters. Two outputs per channel allow the signal to be sent to two different devices in parallel. In addition to the extensive feature set and the outstanding technical characteristics, Crescendo duo convinces with a sonic authenticity that is second to none.
The 120V technology
The 120V technology is our reference technology. The 120V technology is unique in the world. It operates at a DC voltage of 120 volts. This is four times that of IC-based semiconductor op-amps.
Sounds good
With all SPL devices we develop not only according to plan, but also by ear. Many important components are installed on the circuit boards using Through-hole technology. This way we can ensure that we can use the best sounding components.
Χαρακτηριστικά

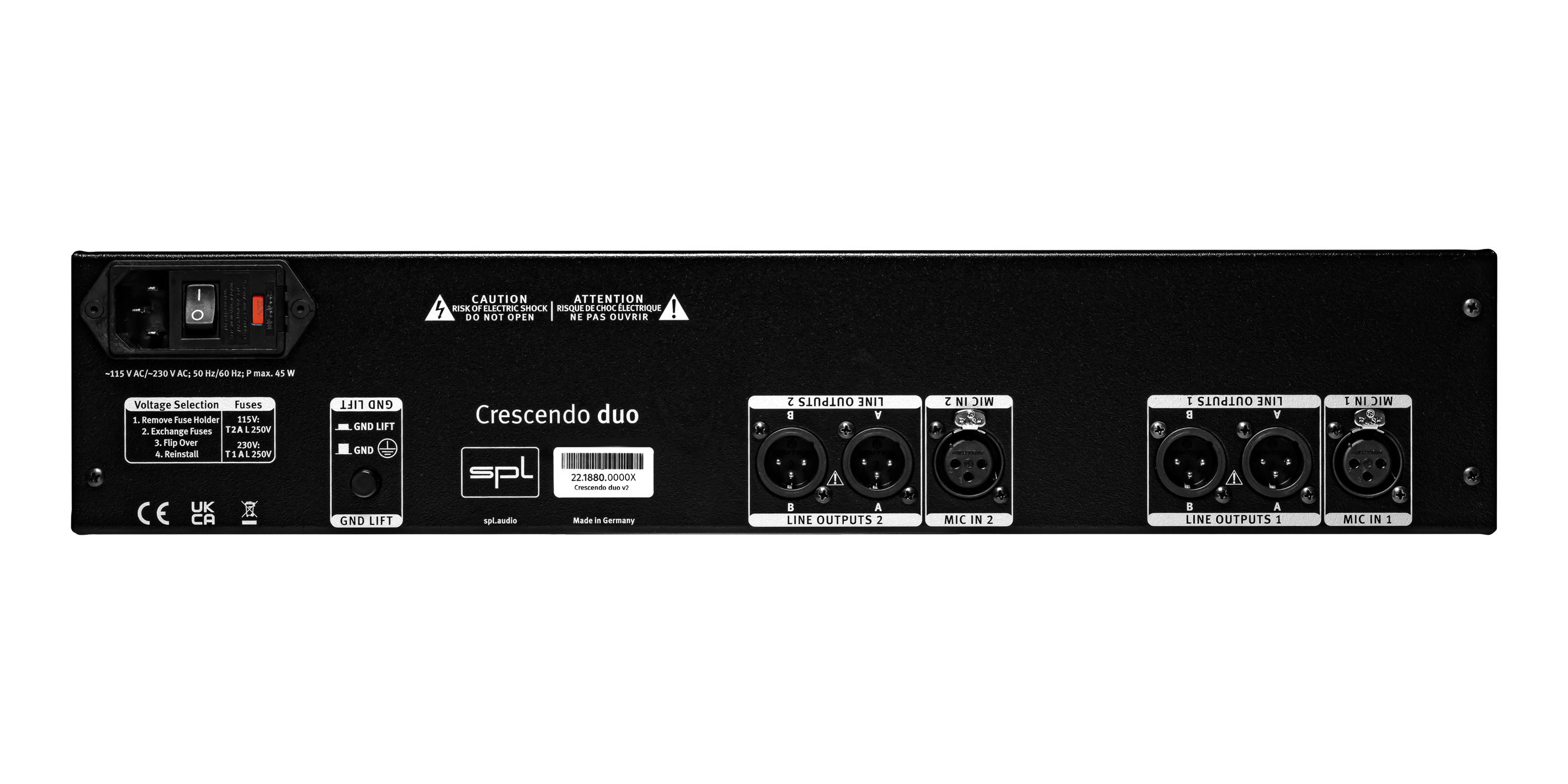

- Analog input & output; XLR (balanced)
- Maximum output level: 32.5 dBu
- Input impedance: 10 kΩ
- Output impedance: 75 Ω
- Frequency range (50 dB Gain, -3dB): 20 Hz – 100 kHz
- THD + N (10 Hz – 22 kHz, 30 dB Gain): 0.0036 %
- THD + N (10 Hz – 22 kHz, 70 dB Gain): 0.32 %
- Noise (A-weighted, 150 Ω, 30 dB Gain): - 89.2 dBu
- Noise (A-weighted, 150 Ω, 70 dB Gain): - 51.7 dBu
- Equivalent Input Noise (EIN, 70 dB Gain, 150 Ω): -121.7 dBu
- Common mode rejection (1 kHz, 30 dB Gain): 79 dB
- Internal Linear Power Supply with Shielded Toroidal Transformer
- Operating voltage for audio electronics: +/- 60 V
- Operating voltage for relays and LEDs: + 12 V
- Mains Power Supply
- Mains voltage (selectable, see fuse chamber): 230 V AC / 50; 115 V AC / 60 Hz
- Fuse for 230 V: T 0.5 A
- Fuse for 115 V: T 1 A
- Power consumption: max. 17.7 VA
- Dimensions & Weight
- W x H x D (width x height x depth): 482 x 88 x 300 mm / 19 x 3.46 x 11.8 inch
- Unit weight: 6.1 kg / 13.45 lbs
- Shipping weight (incl. packaging): 7.5 kg / 16.54 lbs
