Soundsation Livemaker 1211 Neo

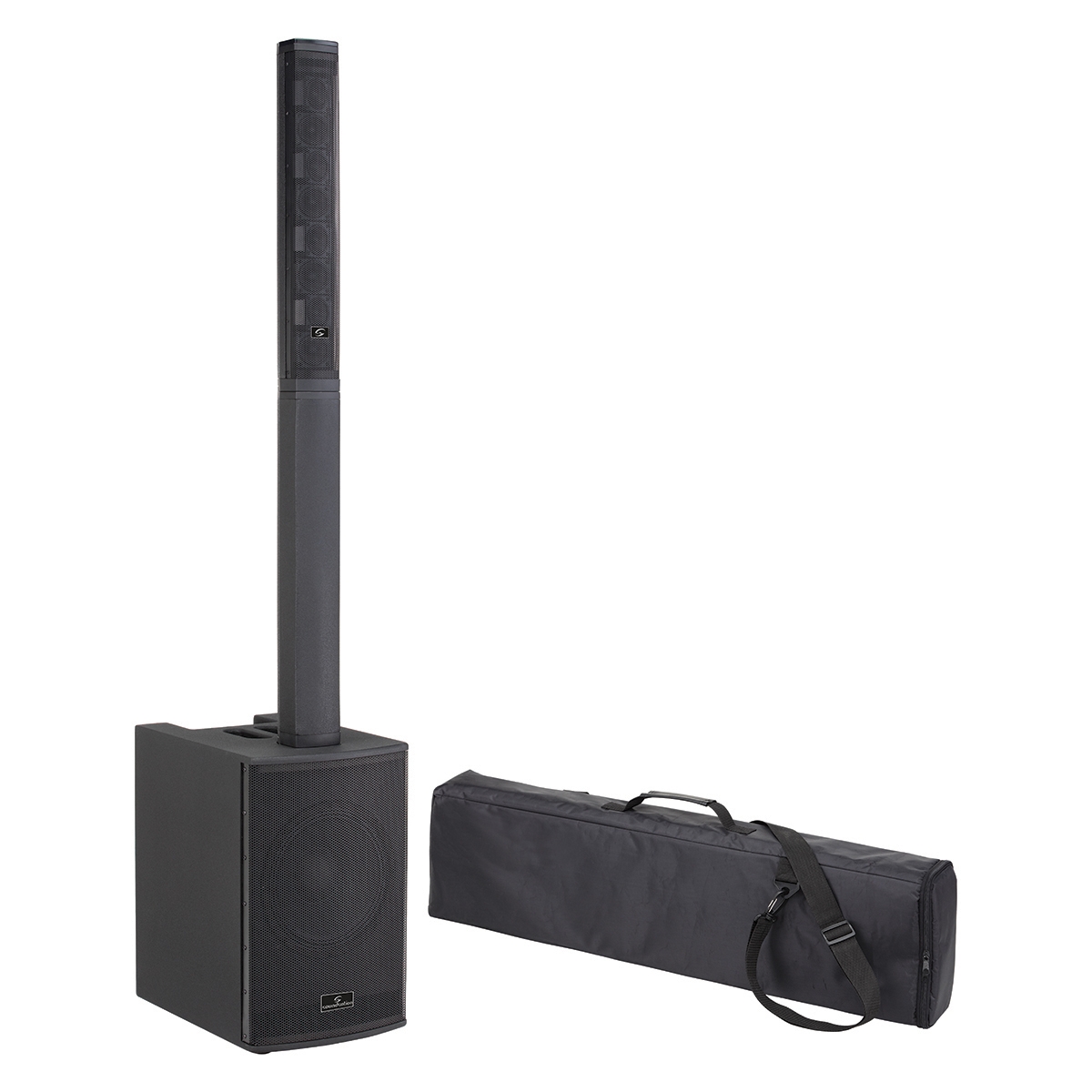

LIVEMAKER 1211 NEO is designed as a compact system for live use, especially when portability has to be combined with power. It surprises for its sound quality, the extremely wide coverage and the high sound pressure. The very low weight of the active subwoofer (less than 20kg) and the practical bag with strap, which houses top speaker and connection unit (a little over 5kg in total), make this system the ideal partner for your gigs with which you cannot do without.

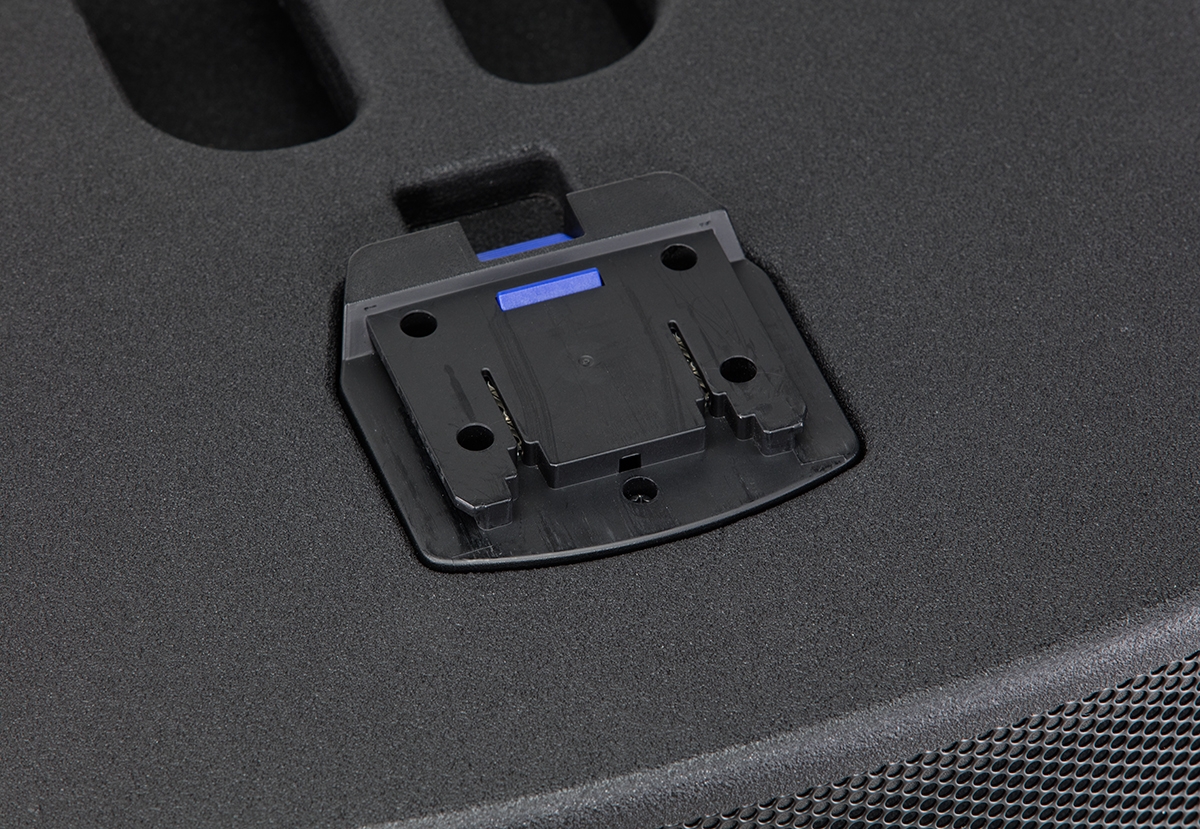

The LIVEMAKER 1211 NEO is composed of a passive top unit, an intermediate support unit with a profile identical to the top but only equipped with internal electrical connections, and a subwoofer enclosure containing amplifiers, crossover and input section. The output connections are made via the robust and extremely reliable slide mounting system, which attach the subwoofer top to the middle unit bottom and the middle unit top to the column speaker bottom.

The assembly / disassembly operations are therefore extremely fast and efficient, always guaranteeing the perfect positioning of all elements in a few seconds. The top consists of 8x 2.75” full-range drivers with Neodymium magnets arranged in vertical array. The X-shaped one-by-one horizontal position of the drivers assures a coverage approximately close to 180 °. The vented subwoofer houses a 12” woofer that surprises for the high sound pressure in spite of the small dimensions.

Features:

• System Type Active compact column PA System with slide mounting system
• Column speaker in plywood featuring 8 full-range 2.75” Neodymium drivers with alternating X-arrangement for a horizontal coverage of about 180°
• Intermediate unit with internal electrical connection between subwoofer and top column

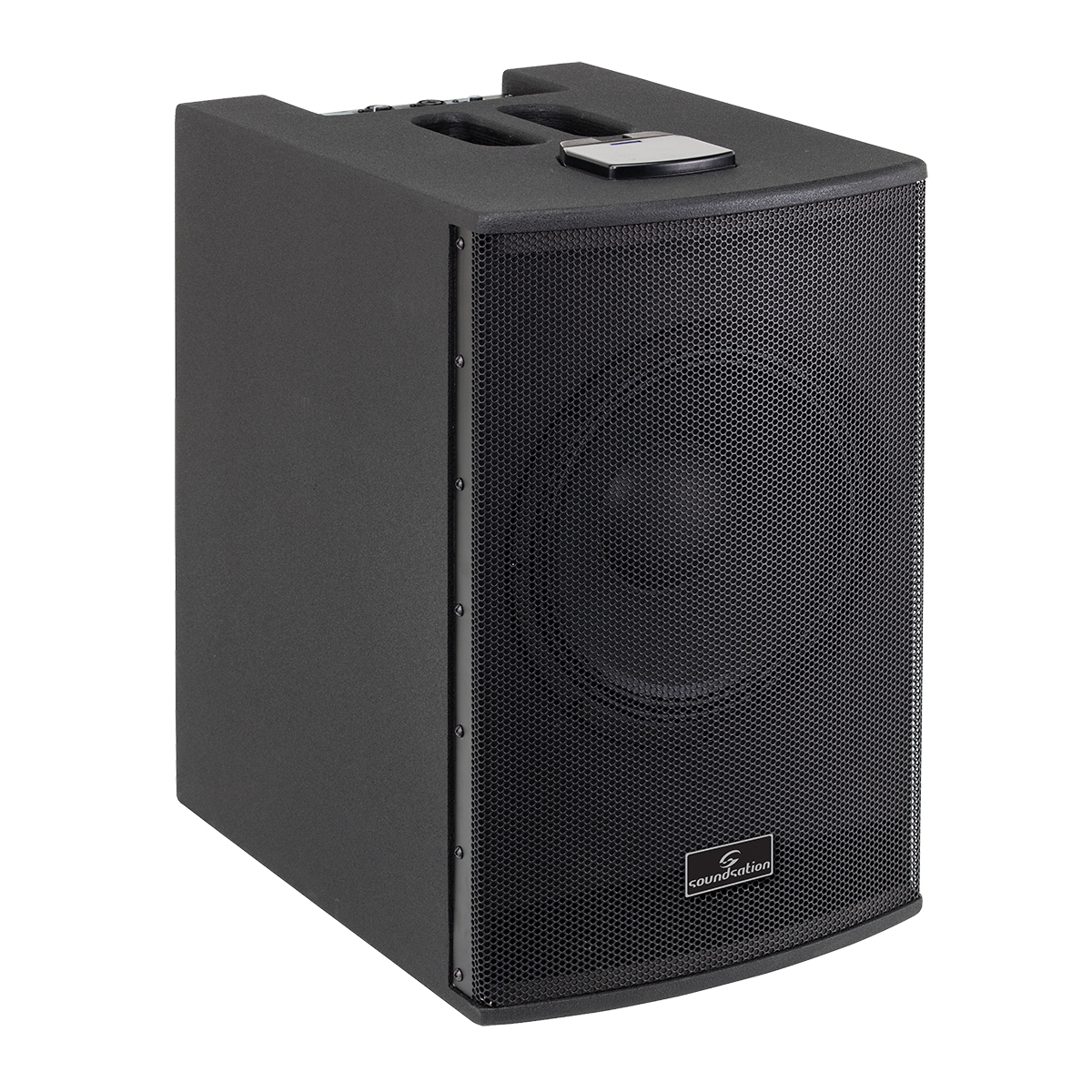

• Active bass-reflex subwoofer in plywood with 12" high-performance woofer
• 1200W Peak power class-D amplifier with high- efficiency, low-heat dissipation switching power supply
• Balanced Line Inputs and Outputs
• Built-in signal, thermal, overload limiter for maximum safety even at high levels
• Reinforced plywood enclosures with black scratch-resistant paint and steel grill
• Fast and reliable connection system with internal audio routing between subwoofer and middle unit, and between central unit and upper column

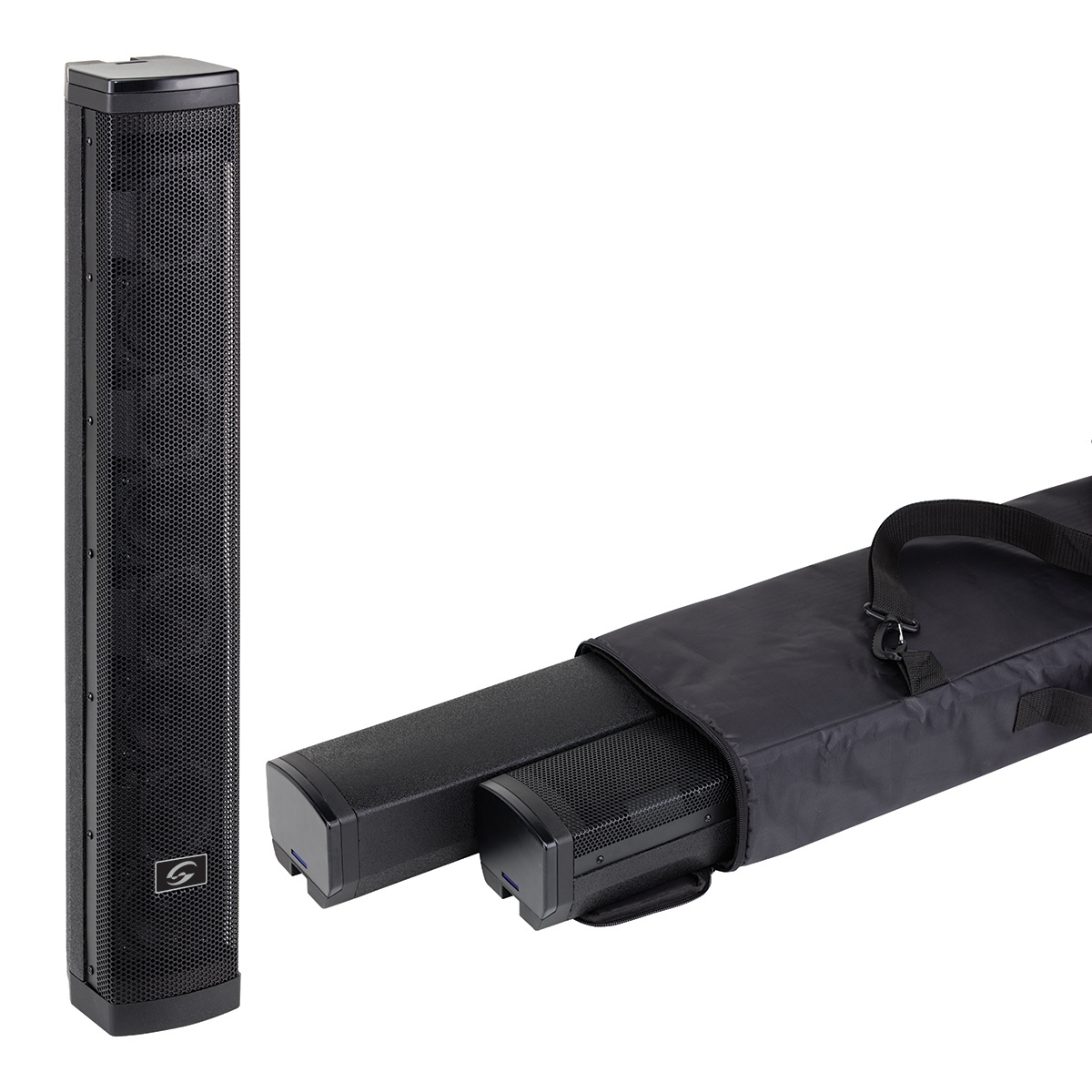

• Handy padded bag with strap housing column speaker and support unit of a little more than 5kg in total
• Recessed handle of top of subwoofer for easy transport

Specifications:

• Column power handling: 250W RMS / 500W Peak
• Subwoofer power handling: 350W RMS / 900W Peak
• Column Frequency Response: 160-20000Hz
• Column Max SPL: 120dB
• Column Transducers: 2.75" full-range drivers with Neodymium magnets
• Directivity (HxV): 176° x 45°
• Crossover Frequency: 150Hz (24dB/Oct.)
• Column Impedance: 4ohm
• Subwoofer Power Handling: 350W RMS / 700W Peak
• Subwoofer Frequency Response: 45-150Hz
• Subwoofer Max SPL: 120dB
• Subwoofer transducer: 12" high excursion woofer, 2.5" v.c.
• Amplifier: 350W + 250W RMS (700W + 500W Peak), Class-D with switching power supply
• Power Consumption: 650W, 1200W Peak

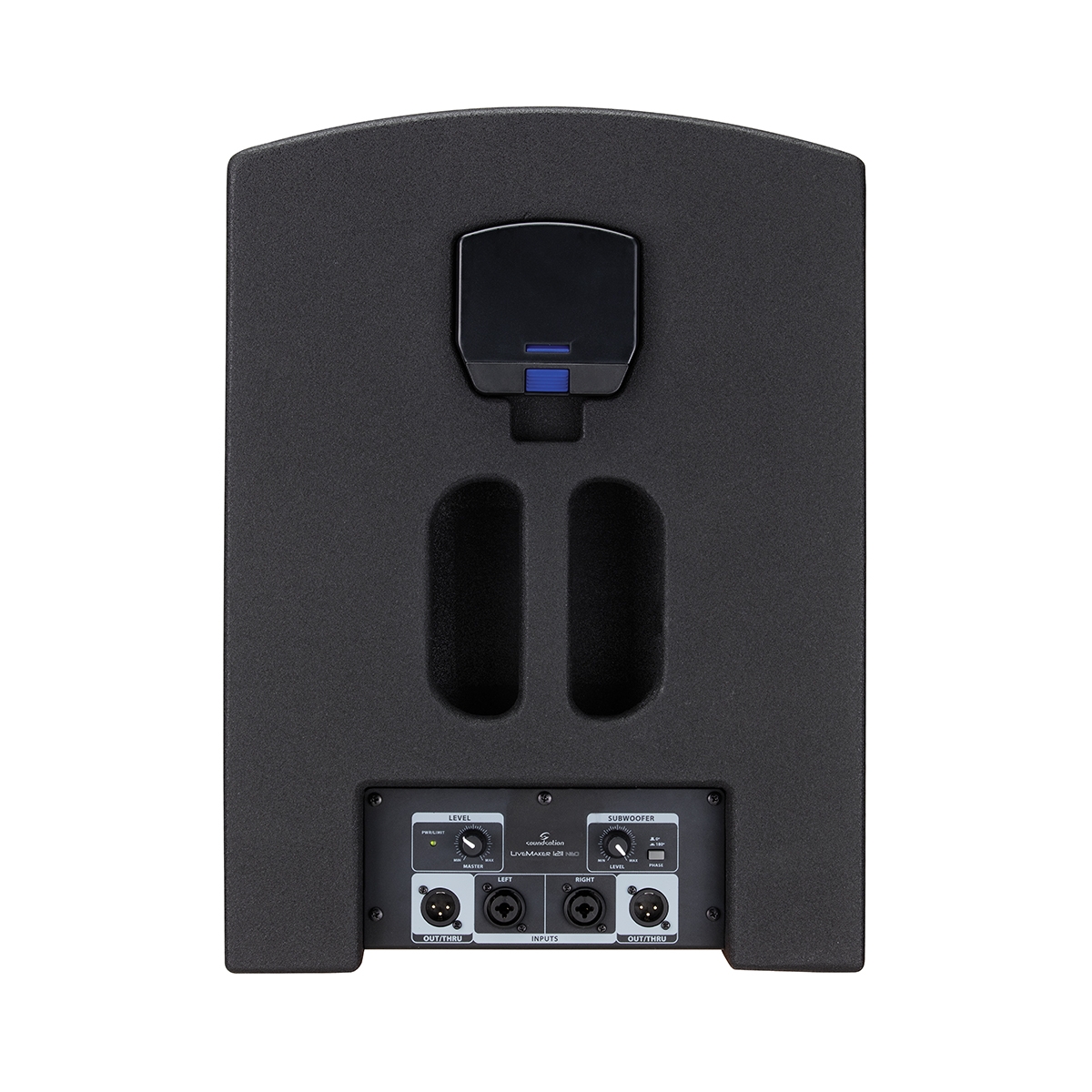

• Connections: Combo(XLR + 1/4" Jack) Balanced Line Left/Right Inputs; XLR Balanced Not-filtered Left/Right Outputs
• Controls: Column level knob, Subwoofer level knob, 0° - 180° Phase switch, Peak/LImit LED
• Mains power: 100-120Vac/60Hz; 200-240Vac/50Hz with voltage selector
• Fuse: T8A/250V for 100-120Vac; T4A/250V for 200-240Vac
• Housing: reinforced plywood with scratchproof painting; 1.2mm steel grille (sub), 1mm (column)
• Handles: 1 recessed on subwoofer top
• Column and connection unit dimension (WxHxD): 140 x 709 x 100 mm
• Subwoofer Dimension (WxHxD): 370 x 615 x 500 mm
• Column and connection unit packing dimension (WxHxD): 240 x 740 x 120 mm (1 carton contains both units)
• Subwoofer Packing Dimension (WxHxD): 470 x 660 x 600 mm
• Column net weight: 3.0kg
• Connection unit net weight: 1.6kg
• Subwoofer net weight: 19.6kg
• Bag net weight: 0.8kg
• Column + connection unit + bag net weight: 6kg
• Subwoofer gross weight: 22kg
