Audio Technica ATW-3212/C510

Write your review |

SKU: APA2022-00418

Δωρεάν Μεταφορικά
36 Δόσεις
2 Έτη Εγγύηση

The Audio-Technica fourth-generation 3000 Series wireless systems give you the power and flexibility to operate within the congested UHF spectrum....περισσότερα

Δωρεάν Μεταφορικά
36 Δόσεις
2 Έτη Εγγύηση

669 €

Τιμή με Φ.Π.Α και Δωρεάν Μεταφορικά

Κατόπιν Παραγγελίας

Δόσεις:

Προσθήκη στο καλάθι

Προσθήκη στη λίστα επιθυμίας

ΕΧΕΙΣ ΑΠΟΡΙΕΣ;

Οι ειδικοί μηχανικοί μας μπορούν να σε βοηθήσουν!

ONLINE GUIDE

Διαβάστε τον οδηγό αγοράς για Μικρόφωνα

Περιγραφή
Χαρακτηριστικά

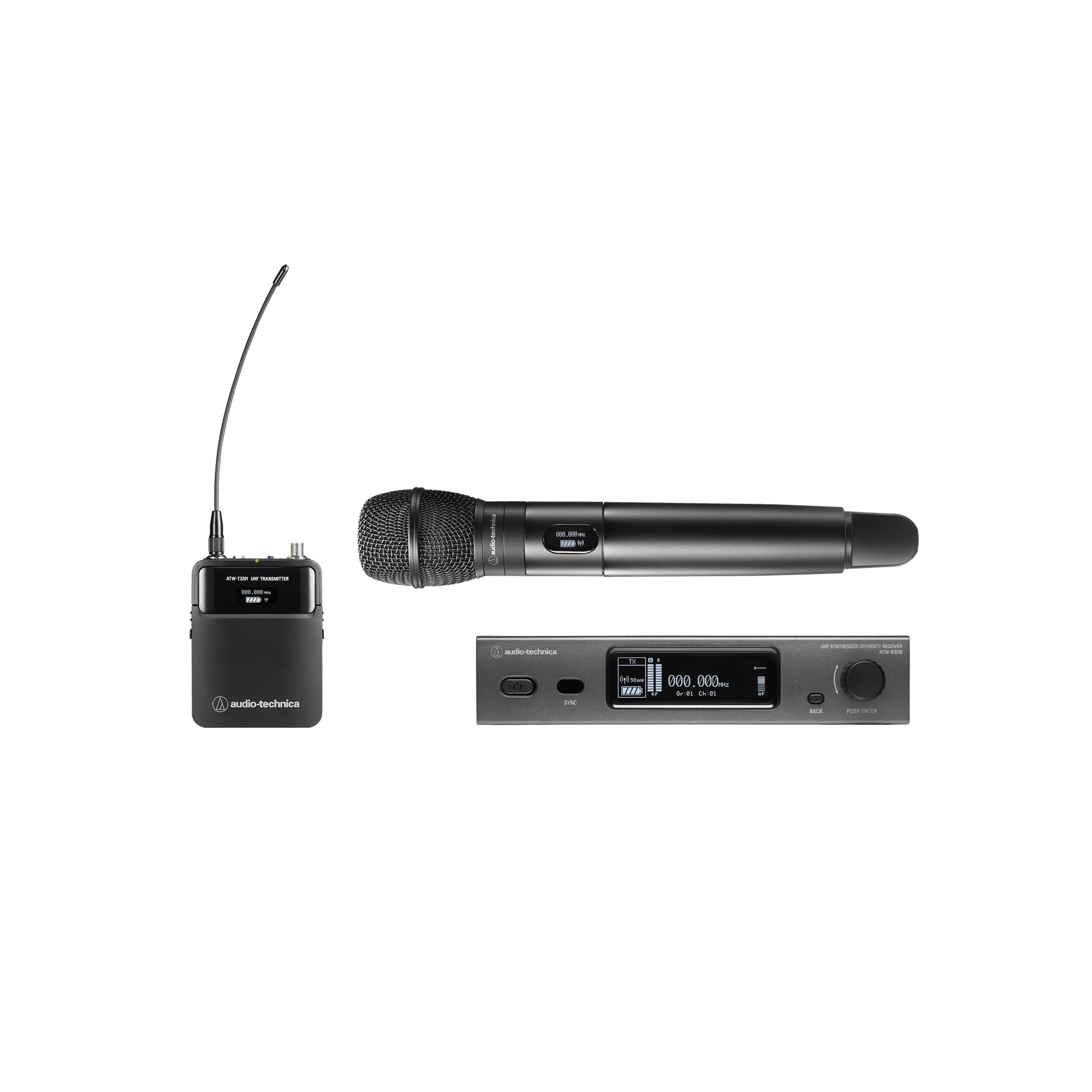

The Audio-Technica fourth-generation 3000 Series wireless systems give you the power and flexibility to operate within the congested UHF spectrum. 3000 Series systems have an operating range of 300' (100 m) and are available in two frequency bands – DE2 (470–530 MHz) and EE1 (530–590 MHz) – that provide a class-leading 60 MHz tuning range, which is more than twice that offered by the previous 3000 Series models.

Navigate Today’s Congested RF Environment

This feature-rich wireless system boasts a class-leading 60 MHz tuning range, giving you the power to operate unimpeded.

Easily Accessible Backup Frequency

The transmitter’s multifunction button can be used to switch to a preset backup frequency if interference is encountered.

Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in several frequency bands: DE2 (470–530 MHz), EE1 (530–590 MHz), EF1 (590-650 MHz), FG1 (650-700 MHz), GH2 (794-806 MHz) and HH2 (821-832 and 863-865 MHz)
Unique multifunction button on the handheld and body-pack transmitters can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
Network-enabled system, featuring the ATW-R3210N receiver*, offers network monitoring and control via Wireless Manager software
True Diversity operation reduces dropouts
Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
Frequency scan and IR sync functionality for ease of setup - Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
Handheld transmitter offers extremely low handling noise and includes an industry-standard thread mount for use with six interchangeable A-T microphone capsules, as well as other compatible capsules
New rugged cH-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector
Body-pack transmitter features tactile mute toggle switch (defeatable) for physical confirmation of mute status when transmitter display is not visible
Charging terminals on transmitters work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries
Antenna power available for powered antennas and other in-line RF devices
Ground-lift switch helps eliminate audible hum caused by ground loops
Balanced and unbalanced audio output jacks
*Not available in all frequency bands, please check the configurable selection or contact your local Audio-Technica contact for further information.

Χαρακτηριστικά

Overall System

Operating Frequencies Band DE2: 470.125 to 529.975 MHz (2395 frequencies), Band EE1: 530.000 to 589.975 MHz (2400 frequencies), Band EF1: 590.000 to 649.975 MHz (2400 frequencies), Band FG1: 650.000 to 699.875 MHz (1996 frequencies)
Minimum Frequency Step 25 kHz
Modulation Mode FM
Maximum Deviation ATW-T3201: ±38 kHz (THD:10%), ATW-T3202: ±36 kHz (THD:10%)
Frequency Response ATW-T3201: 31 Hz to 15,500 Hz, ATW-T3202: 25 Hz to 16,700 Hz, Frequency response depends on attached microphone element
Operating Range 100 m (328'), Open range environment with no interfering signals.
Total Harmonic Distortion <1.0% (at 1 kHz, ±17.5 kHz deviation)
Operating Temperature Range -5° C to +45° C (23° F to 113° F)
Simultaneous Use 40 Channels per band*, For assistance with multi-band operation or other frequency coordination issues, please contact your regional Audio-Technica customer service representitive. *Region and band dependent

Handheld Transmitter

RF Power Output High: 30 mW, Low: 10 mW (switchable), at 50 ohms
Spurious Emissions Following Federal and National Regulations
Battery Type Two 1.5V AA, not included
Battery Life High: 8.0 hours (alkaline), Low: 9.0 hours (alkaline), High: 9.0 hours (Ni-MH 1900mAh), Low: 9.5 hours (Ni-MH 1900mAh), Depending on battery type, usage, and environmental conditions.
Dimensions ATW-T3202 (without capsule): 193 mm (7.60") long, 37 mm (1.46") maximum diameter, ATW-T3202/C510: 265 mm (10.43") long, 54 mm (2.13") maximum diameter, ATW-T3202/C710: 271 mm (10.67") long, 50 mm (1.97") maximum diameter
Net Weight ATW-T3202 (without capsule): 200 g (7.1 oz), without batteries, ATW-T3202/C510: 330 g (11.6 oz), without batteries, ATW-T3202/C710: 314 g (11.1 oz), without batteries

Body Pack

RF Power Output High: 30 mW, Low: 10 mW (switchable), at 50 ohms
Battery Life High: 8.0 hours (alkaline), Low: 9.0 hours (alkaline), High: 9.0 hours (Ni-MH 1900mAh), Low: 9.5 hours (Ni-MH 1900mAh), Depending on battery type, usage, and environmental conditions.
Battery Type Two 1.5V AA, not included
Dimensions 64 mm x 82 mm x 23 mm (W x D x H), 2.52" x 3.22" x 0.91" (W x D x H)
Input Connections cH-style screw-down 4-pin connector, Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +5V
Net Weight 102 g (3.6 oz), without batteries
Spurious Emissions Following Federal and National Regulations

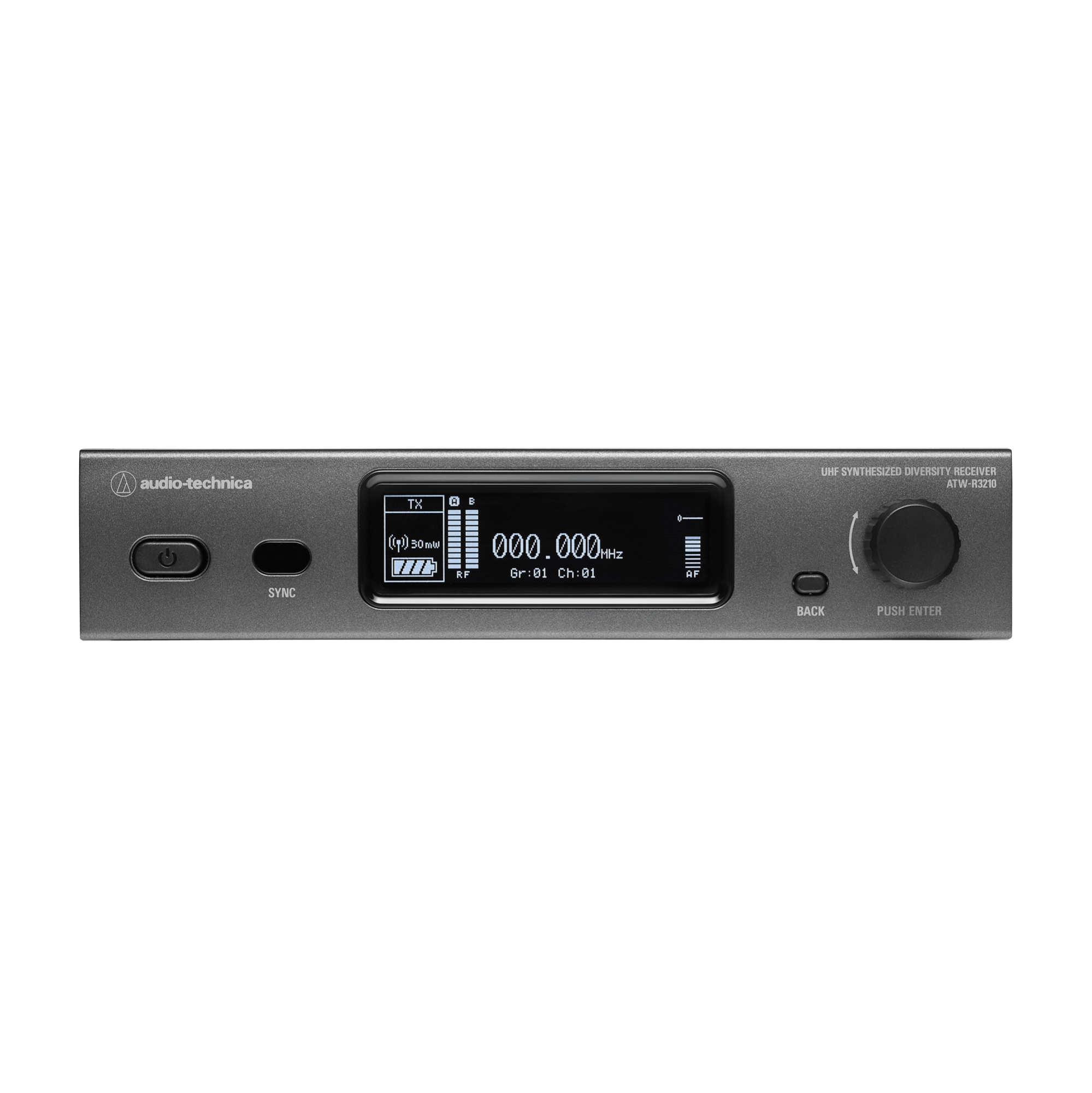

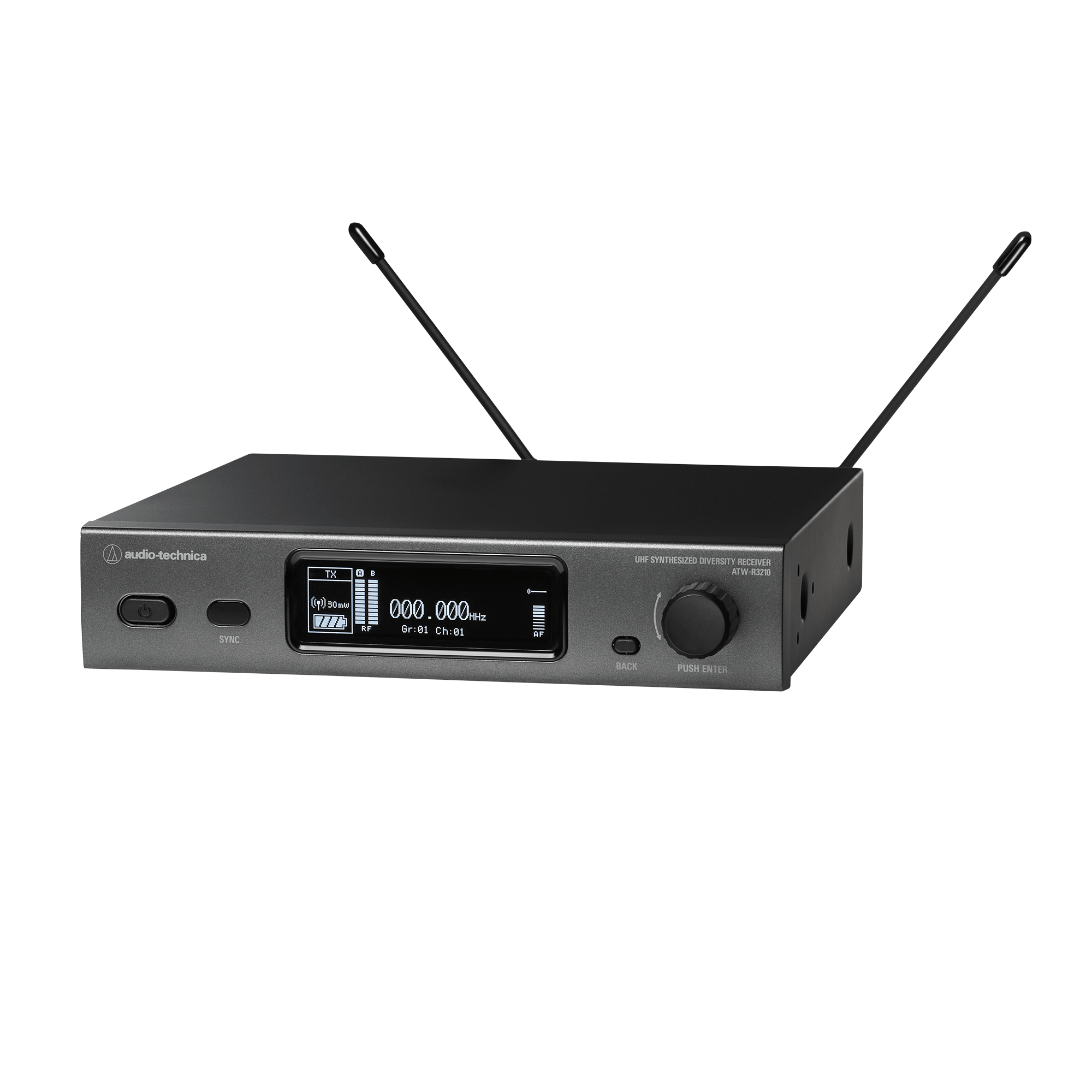

Receiver

Receiving System True Diversity
Image Rejection 60 dB nominal
Maximum Output Level XLR, balanced: +14 dBV, 6.3 mm (1/4"), unbalanced: +8 dBV
Antenna Input BNC-type, 50 ohms
Power Supply 100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply
Dimensions 210.0 mm x 191.0 mm x 43.4 mm (W x D x H), 8.27" x 7.52" x 1.71" (W x D x H)
Weight 1100 g (38.8 oz), without accessories
Accessories Included Two flexible UHF antennas; AC adapter (country dependent); rack-mount Adapters
