Anthem MCA 525

Write your review |

SKU: APA2019-00470

Δωρεάν Μεταφορικά
36 Δόσεις
2 Έτη Εγγύηση

Designed to match, engineered for power.New MCA multi-channel amplifiers are Crafted in Canada and perfectly match the new AVM 60 processor & MRX receivers.To complement the NEW AVM 60 A/V Processor, Anthem introduces the new MCA 525, 325 and 225 power amplifiers. Available in 5, 3 and 2-channel con...περισσότερα

Δωρεάν Μεταφορικά
36 Δόσεις
2 Έτη Εγγύηση

4.410 €

Τιμή με Φ.Π.Α και Δωρεάν Μεταφορικά

Κατόπιν Παραγγελίας

Δόσεις:

Προσθήκη στο καλάθι

Προσθήκη στη λίστα επιθυμίας

ΕΧΕΙΣ ΑΠΟΡΙΕΣ;

Οι ειδικοί μηχανικοί μας μπορούν να σε βοηθήσουν!

Περιγραφή

Designed to match, engineered for power.

New MCA multi-channel amplifiers are Crafted in Canada and perfectly match the new AVM 60 processor & MRX receivers.

To complement the NEW AVM 60 A/V Processor, Anthem introduces the new MCA 525, 325 and 225 power amplifiers. Available in 5, 3 and 2-channel configurations, these new MCA amplifiers feature more robust and efficient power and heavy-duty reliability.

The new MCA Series delivers lower THD (total harmonic distortion) for more clean, pure sound and lower noise for a supremely quiet background.

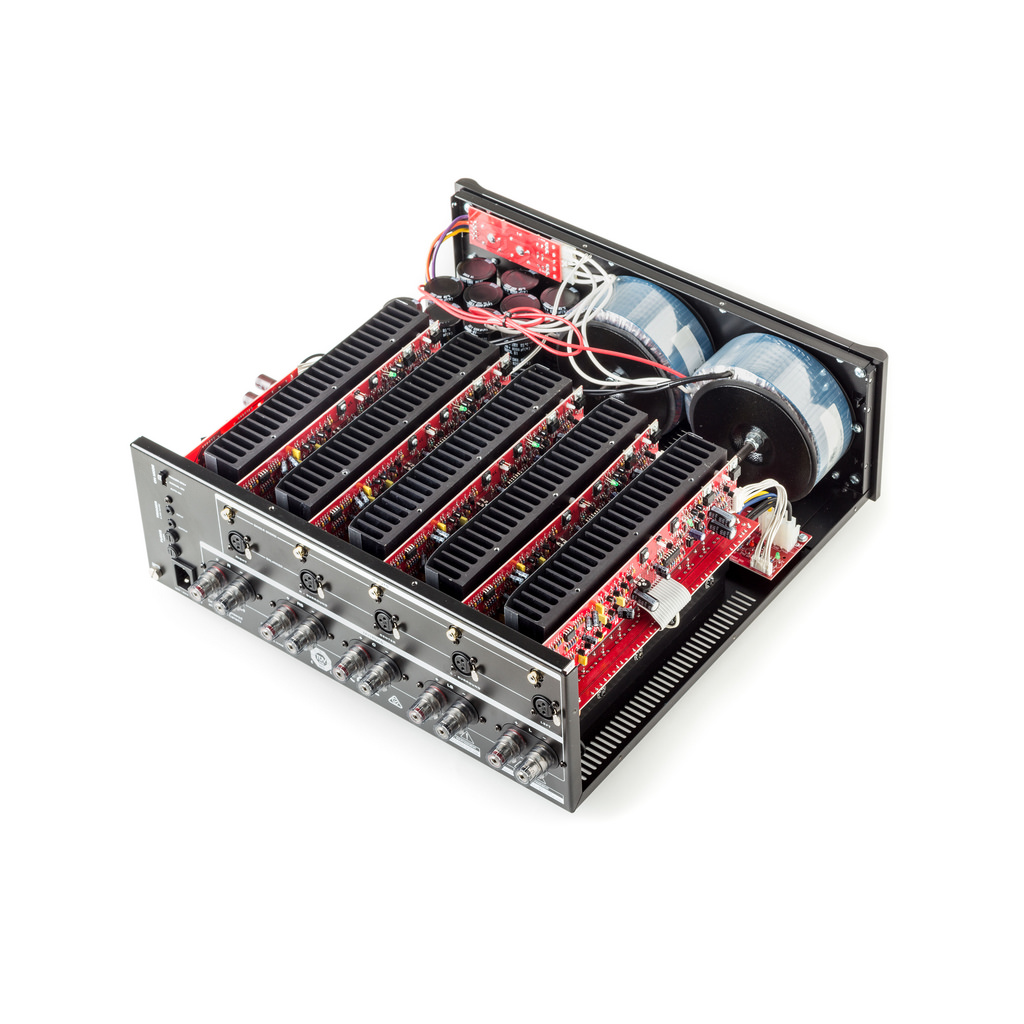

Like all Anthem products the MCA 525, MCA 325 and MCA 225, designed and Crafted in Canada, are like no other amplifiers in the world: custom low noise high-power toroidal transformers; high-current bipolar output transistors; high-quality filter capacitors; advanced power supply regulators; oversized aluminum heatsinks; custom-designed dual binding posts; and patented auto-on/off circuitry. Superior craftsmanship that is reflected in clean, clear, audiophile-quality sound from top to bottom of the frequency spectrum.

Features :

225W in 5-Channels

Delivers lower THD (Total Harmonic Distortion) for cleaner, pure sound and lower noise
Completely redesigned for improved audio performance and reliability
Higher current output for lower distortion

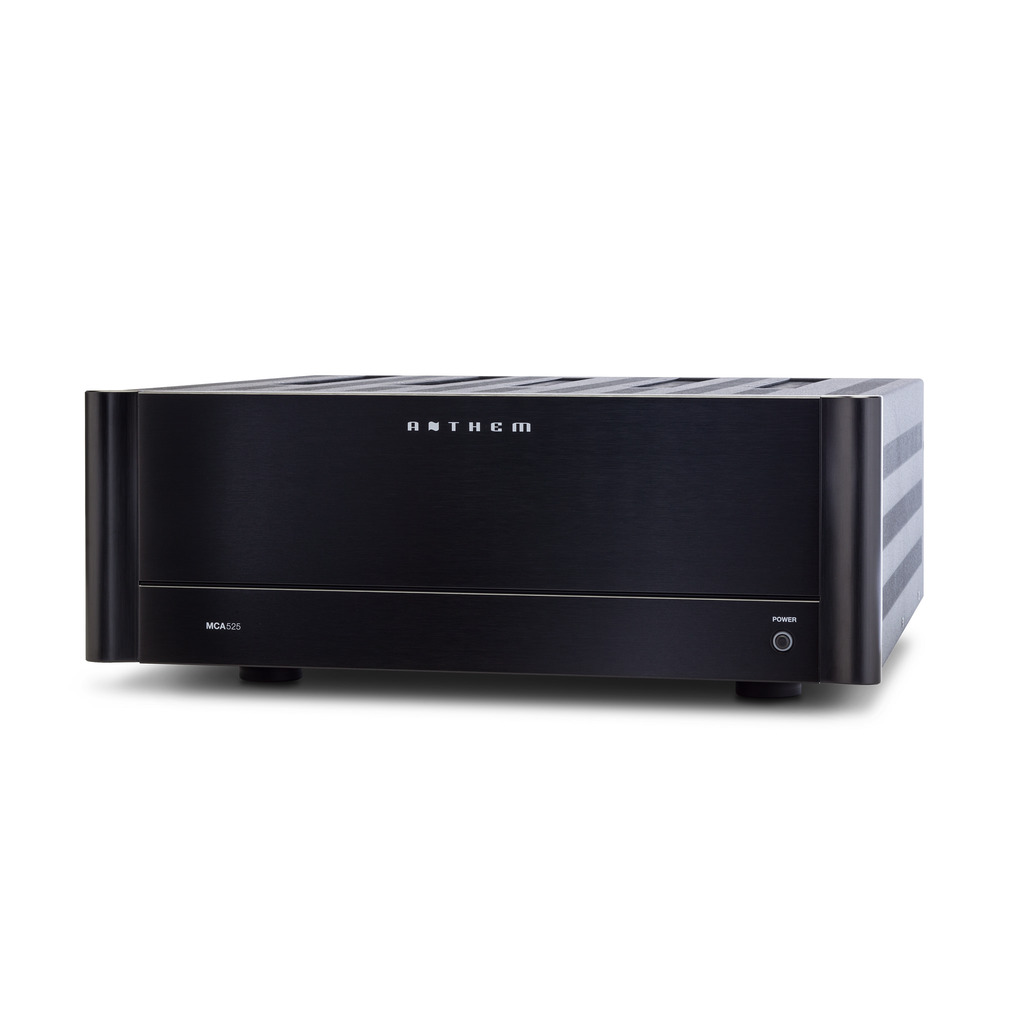

Cosmetic match for AVM 60 A/V Preamplifier-Processor

Improved Advanced Load Monitoring system

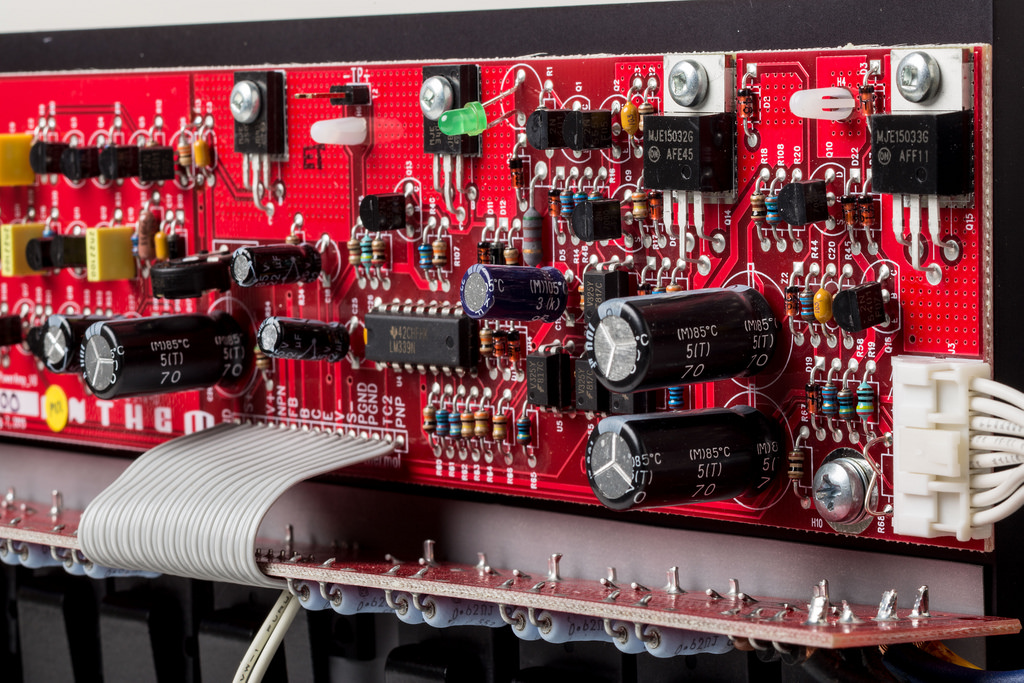

8 bipolar output devices per channel for less stress on each device
Less than 2 watts standby power consumption
Crafted in Canada

Specifications :

Impedance	8Ω	4Ω	2Ω
	225 W	400 W	600 W

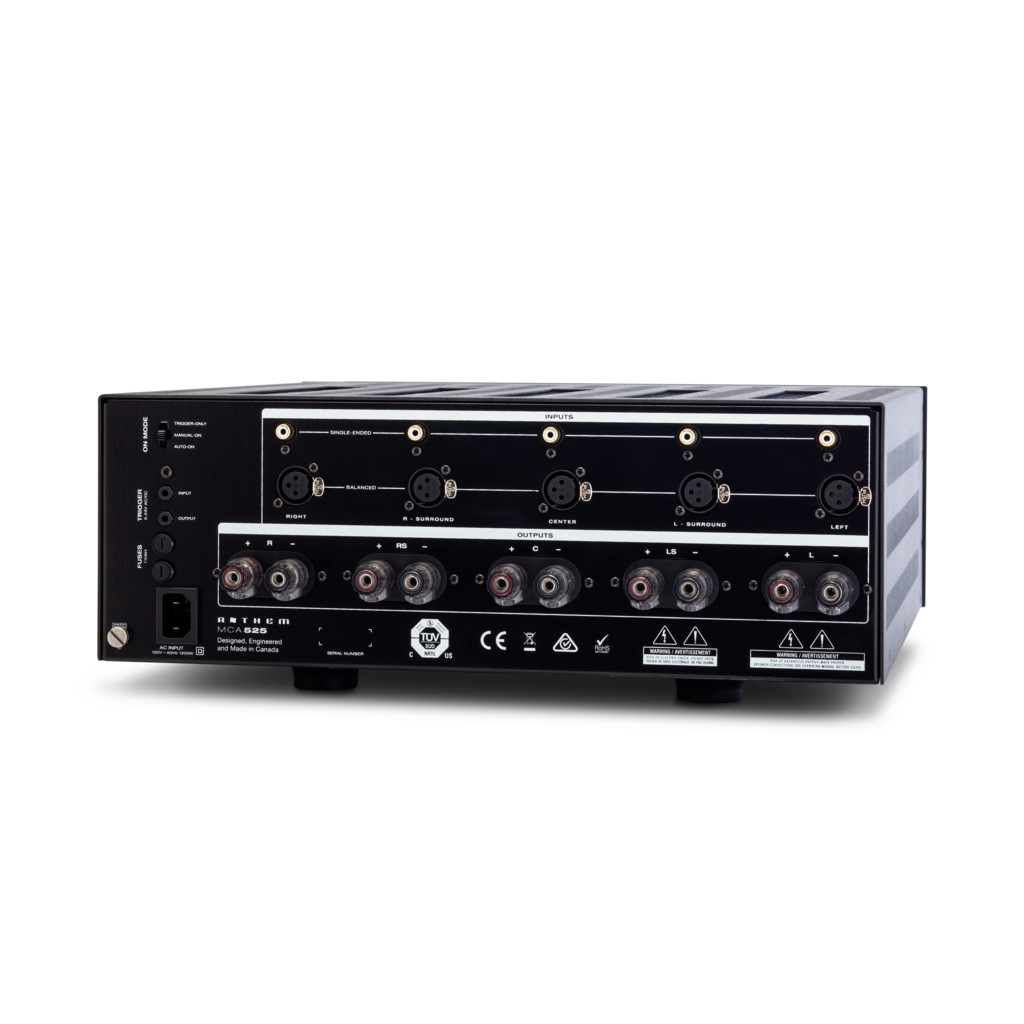

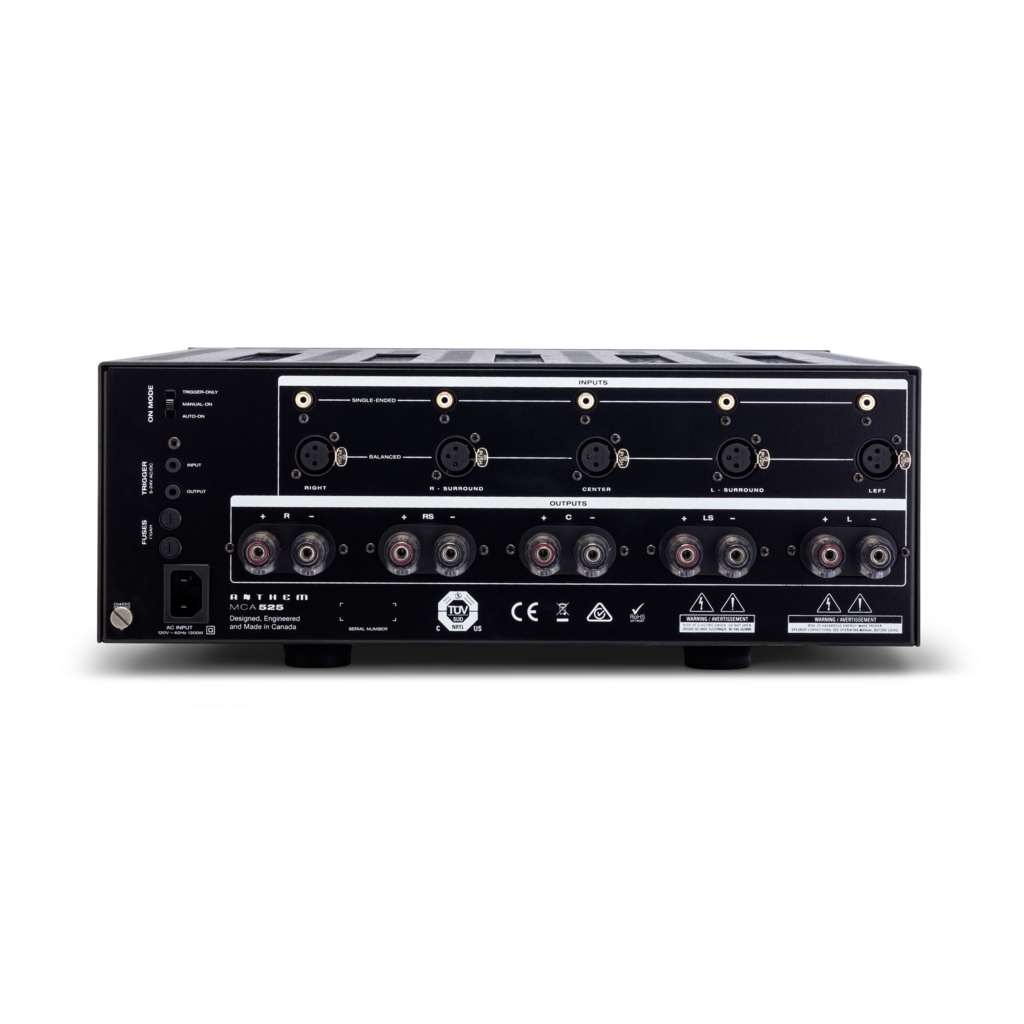

INPUTS / OUTPUTS
Inputs	Single-Ended, Balanced, Relay Trigger (3.5-mm Mono Jack)

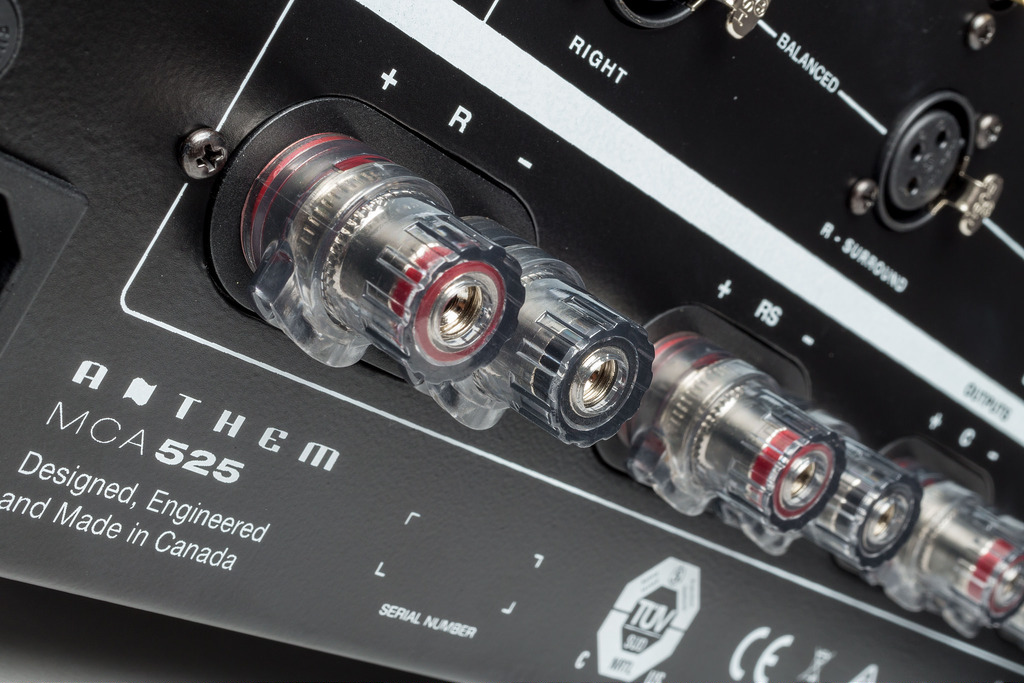

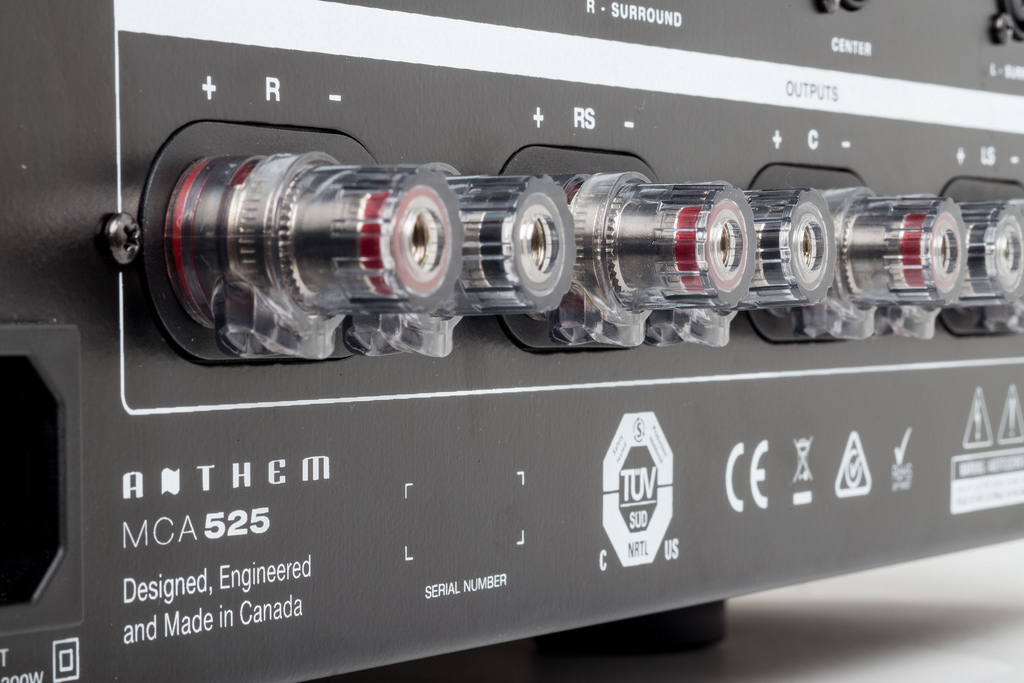

Outputs	Speaker Binding Posts, Relay Trigger (3.5-mm Mono Jack)

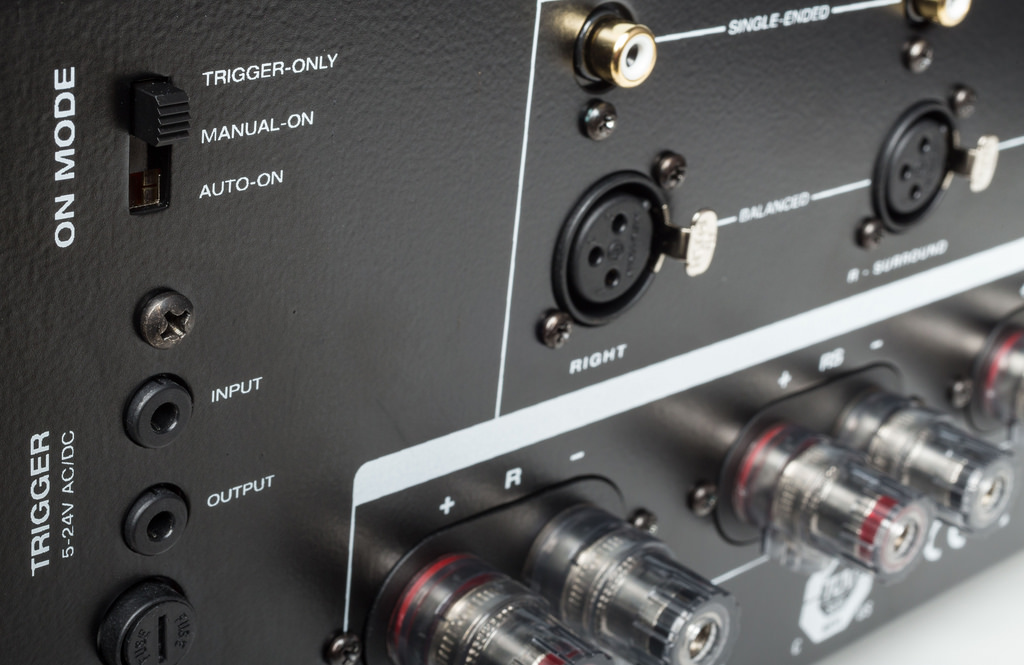

SWITCHES

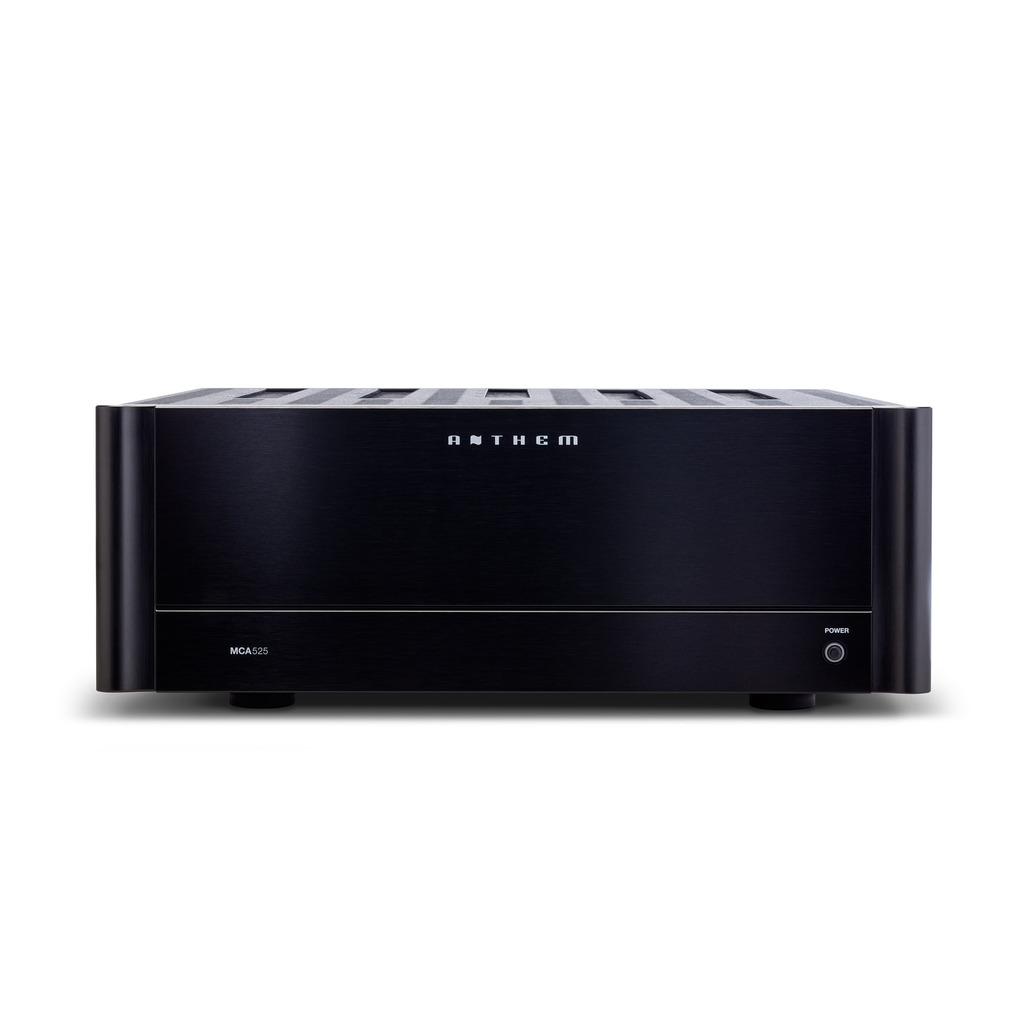

Front Panel	Power (On/Off)
Rear Panel	3 On/Off Modes (Trigger, Manual, Auto)
THD AT 100W
at 1 kHz	0.0010%
at 20 kHz	0.015%
IMD AT 100 W
ITU-R (19 kHz + 20 kHz)	0.0005%
SMPTE (60 Hz + 7 kHz)	0.002%
FREQUENCY RESPONSE, 20 HZ TO 20 KHZ
open circuit	± 0.1 dB
8Ω	± 0.1 dB
4Ω	± 0.1 dB
2Ω	± 0.2 dB
OTHER SPECIFICATIONS
SNR, IEC-A, ref. 225 W	120 dB
Power Bandwidth, -3 dB at 200 W into 8 ohms	90 kHz
Slew Rate	30 V/μs
Damping Factor, 20 Hz to 1 kHz	300
Channel Separation, 100 Hz to 10 kHz	>65 dB
Input Impedance (RCA / XLR)	10 kΩ / 15 kΩ
Input Sensitivity, 225 W into 8 Ω	1.5 Vrms
Voltage Gain	29 dB

	standby	idle	typical	high output
POWER CONSUMPTION
MCA 525	2.0 W	80 W	550 W	1200 W
MCA 325	1.4 W	47 W	350 W	750 W
MCA 225	1.0 W	35 W	240 W	500 W

DIMENSIONS
Height	6-5/8" (16.9 cm)
Height with Rackmount Kit	4U
Width	17-1/4" (43.9 cm)
Depth	18-1/8" (46 cm)
WEIGHT
MCA 525	61 lb (27.5 kg)
MCA 325	43 lb (19.5 kg)
MCA 225	40 lb (18 kg)
POWER REQUIREMENT
120 V version:	In countries where the line voltage is 120 V, this product operates from a single phase AC power source that supplies between 108 V and 132 V at a frequency of 60 Hz.
220-240 V version:	In countries where the line voltage is 220, 230, or 240 V, this product operates from a single phase AC power source that supplies between 198 V and 264 V at a frequency of 50 Hz.
