Innuos Statement Silver 1TB New PSU

SKU: APA2022-10528
  • free shipping icon
    Δωρεάν Μεταφορικά
  • 12
    ΆτοκεςΔόσεις
  • 2 years warranty
    2 Έτη Εγγύηση

Our flagship server, designed to take Digital Audio to a new level of performance. A state-of-the-art source for the most discerning audiophiles....περισσότερα

  • free shipping icon
    Δωρεάν Μεταφορικά
  • 12
    ΆτοκεςΔόσεις
  • 2 years warranty
    2 Έτη Εγγύηση
17.300 €

Τιμή με Φ.Π.Α και Δωρεάν Μεταφορικά

Κατόπιν Παραγγελίας
1.441,67 € / μήνα
installments table icon
Η τιμή που αναφέρεται είναι για αγορά με δόσεις και εξόφληση μέσω πιστωτικής κάρτας (Visa, Mastercard). Στην τιμή με δόσεις περιλαμβάνεται ΦΠΑ.
Προσθήκη στο καλάθι
apa support icon

ΕΧΕΙΣ ΑΠΟΡΙΕΣ;

Οι ειδικοί μηχανικοί μας μπορούν να σε βοηθήσουν!

  • Custom ARC6 AC/DC modules with high-precision Active Rectifier board, 10mH DC Choke and 4 times the capacitance.
  • Significantly lower PSU impedance.
  • All rails using new Audio Note KAISEI capacitors.
  • Boosted CPU current.
  • New Adaptive Vibration Control platform using Panzerholz wood.

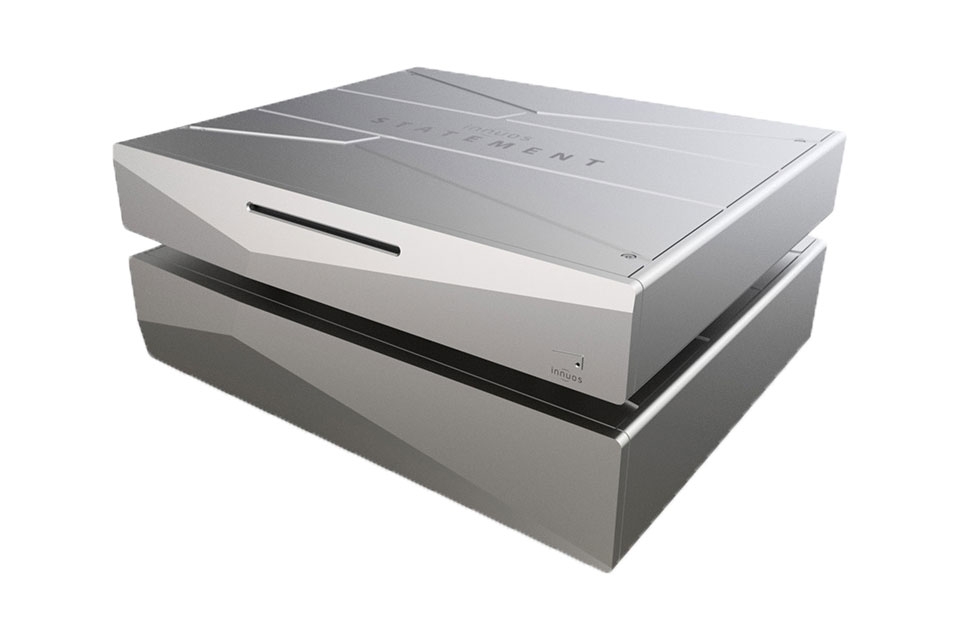

Our flagship server, designed to take Digital Audio to a new level of performance. A state-of-the-art source for the most discerning audiophiles.

  • New linear power supply architecture
  • 10mm CNC-machined aluminium chassis
  • 8 Independent Linear PSU rails
  • 8GB RAM with 4GB In-Memory Playback
  • EMI-optimised motherboard exclusively designed for Innuos
  • New Generation Quad-core Intel CPU
  • Custom-designed Ethernet and USB Reclockers with 3bpp OCXO clocks Asymmetrical isolation feet

innuOS Operating System

InnuOS’ unique innuOS operating system was developed in-house and allows complete Music Library management from your tablet, smartphone, or computer. Ripping CDs, importing music, editing album data (including covers), playing, streaming and backing up your music library can all be performed from the comfort of your smart device.

innuOS also contains many intelligent features to help organise your Music Library, such as their rule-based music import engine and Assisted CD Ripping mode. innuOS can also run in Roon Core or Roon Bridge mode

New Linear Power Architecture

Partnering once again with Dr. Sean Jacobs, a new power supply architecture was designed exclusively for the Statement. The power supply is distributed between two enclosures, with one enclosure containing the AC/DC conversion stage and the other containing the regulation stage together with the server components.

The advantage is clear: regulated “clean” power traverses a very short path, soldered point to point, with the least impedance and exposure to EMI. This is superior in efficiency compared to a traditional architecture where a separate power supply is used – regulated “clean” power needs to go through more obstacles of internal cabling, output connectors, cable, input connectors and more internal cable before it reaches its destination.

8 Independent Linear PSU Rails

Each critical component of the server receives its own dedicated power supply from one of the 8 independent power rails, further preventing component cross-contamination. Of particular note is the use of a dedicated power supply for each of the Ethernet and USB high-precision OCXO clocks, ensuring these clocks work at their best.

Custom-designed Motherboard

The motherboard has been fully EMI-optimised to our own exclusive design by, removing any unnecessary, noise-generating components capable of compromising audio. A fully-customised BIOS ensures the hardware works at its lowest noise without impairing performance. Further EMI treatment is then applied to the motherboard so that EMI is absorbed rather than reflected to other components.

Custom-designed Ethernet and USB Re-clocker

Not fully satisfied with existing USB and Ethernet re-clocking designs, Innuos designed in-house their own boards for this purpose.

At the heart of the design are 3 principles: The use of very high-precision OCXO clocks for timing the signals, extreme care in powering important components preventing cross-contamination, and extremely short paths between components.

While the use of OCXO clocks is not new, the way they are powered and the layout of the board has proven to be extremely important for their performance. As an example, dozens of USB controllers were analysed in terms of how they were powered and clocked so that they allowed this control to be done externally. The USB Controller is regulated by no less than 3 ultra-low noise regulators, one per independent voltage.Keeping the clock very close to the controllers, via a dedicated track on the board itself, helps to avoid the losses in signal quality that come with the use of external clock units.

10mm CNC-machined Aluminium Chassis

Housed in a casing of 10mm-thick CNC-machined aluminium, the Statement is not just a pretty face. The thick metal enclosure helps to isolate external EMI, and its weight helps dampen harmful vibration into the system. By using a double-enclosure design, it also helps to contain the vibration effects of the massive 540VA toroidal transformer at its heart.

Χαρακτηριστικά

Audio Outputs

  • Digital Output Re-clocked USB 2.0 supporting USB Audio Class 2, DoP, Native DSD and MQA
  • Re-clocked dedicated Ethernet Streamer Port

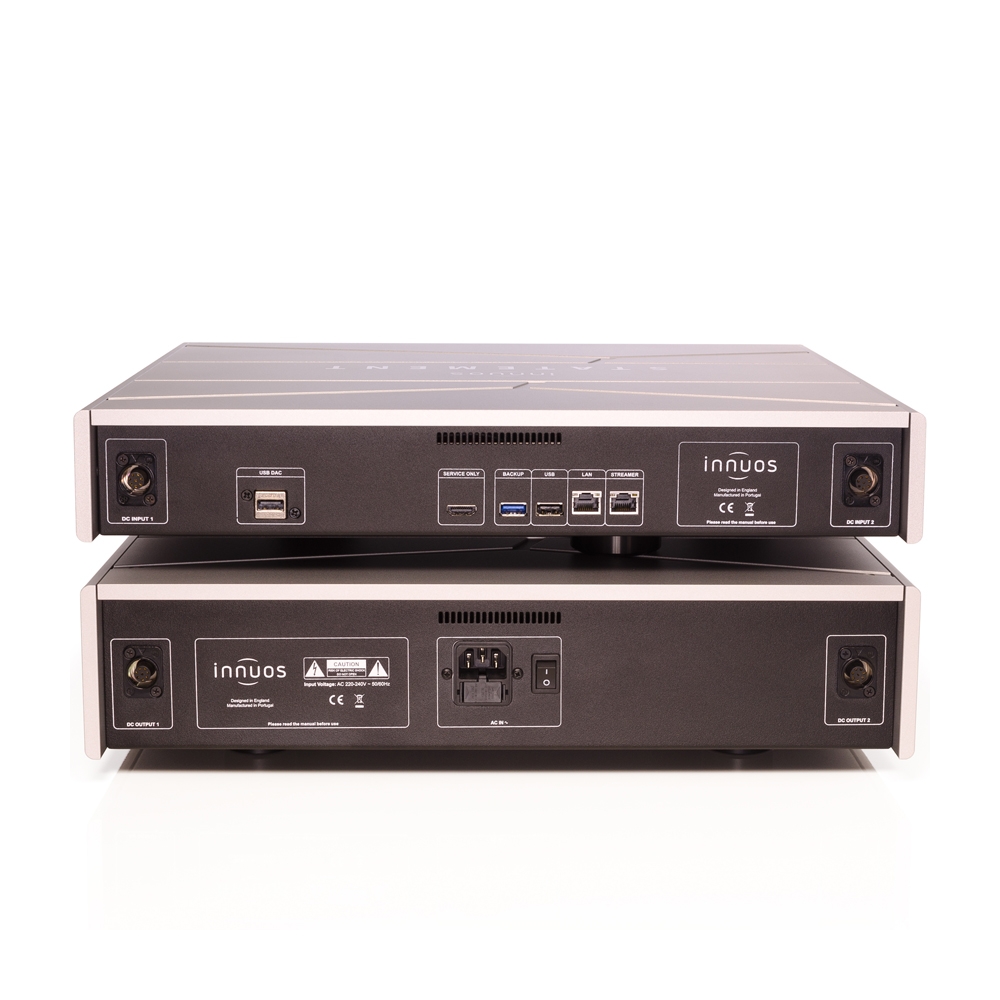

Connectivity

  • Ethernet 2 x rear panel RJ45 – Bridged Gigabit Ethernet
  • USB 2x USB 2.0 (1x re-clocked, 1x non-reclocked), 1x USB 3.0 (Backup)

Formats

  • CD Formats Red Book
  • Disc Compatibility CD, CD-R, CD-RW
  • Audio format for stored CDs FLAC (zero compression), WAV
  • Audio Formats Supported for streaming and playing WAV, AIFF, FLAC, ALAC, AAC, MP3, MQA (with supported DACs)

Sample Rates

  • Sample Rates 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4KHz. 192kHz, 352.8KHz, 384KHz, DSD64, DSD128, Native DSD up to DSD512 on selected DACs
  • Bit Depths 16bit, 24bit, 32bit

User Control Interfaces

  • Web Interface Web Browsers from iOS, Android (4.0 and up) or up-to-date Windows and OS X browsers
  • Mobile App for iPhone/iPad, Android and Windows 10

Hardware

  • CD/DVD drive TEAC Slot-loading drive
  • Hard Drive 1TB SSD with Vibration and EMI treatment
  • CPU Intel Quad Core N4200
  • Memory 8GB DDR3 Low-Voltage RAM (4GB Dedicated for RAM Playback)

Streaming and CD Storage

  • UPnP/DLNA Integrated UPnP Server
  • Streaming Services Qobuz, Tidal, Radio Paradise, Internet Radio
  • Roon Compatibility Roon Core and Roon Endpoint
  • Average CD Storage Time 5 minutes
  • CD Metadata FreeDB, MusicBrainz, Discogs, GD3

Compatible Music Systems Sonos

  • Multi-room Wireless Music System
  • DLNA/UPnP compatible devices
  • USB DACs complying to USB Audio Class 2
  • USB DACs supporting DSD over DoP protocol
  • Selected USB DACs supporting Native DSD

Requirements

  • Network Internet connection to access album metadata when storing CDs, Internet Radio, Streaming Services and software updates
  • Network router with at least one available ethernet port
  • Premium subscription required for some streaming services such as Spotify, Qobuz and Tidal
  • Recommended App (USB Connection Only) iPeng 9 (iOS), OrangeSqueeze (Android), Squeeze Control (Windows 10)

Power

  • Mains Supply 230V AC / 115V AC – 8x Internal Linear Power Supply
  • Power Consumption 20W when idle, 35W peak

Physical

  • Server = 420mm x 352mm x 88mm
  • Power = 420mm x 352mm x 102mm (W x D x H)
  • Weight Server = 8.2kg
  • Power = 13.4kg

In the box

  • Innuos STATEMENT Music Server
  • Mains Cable
  • 2x 0.3m umbilical interconnect
  • 2m Ethernet Cable
  • Quick Start Guide
