Naim SuperCap DR

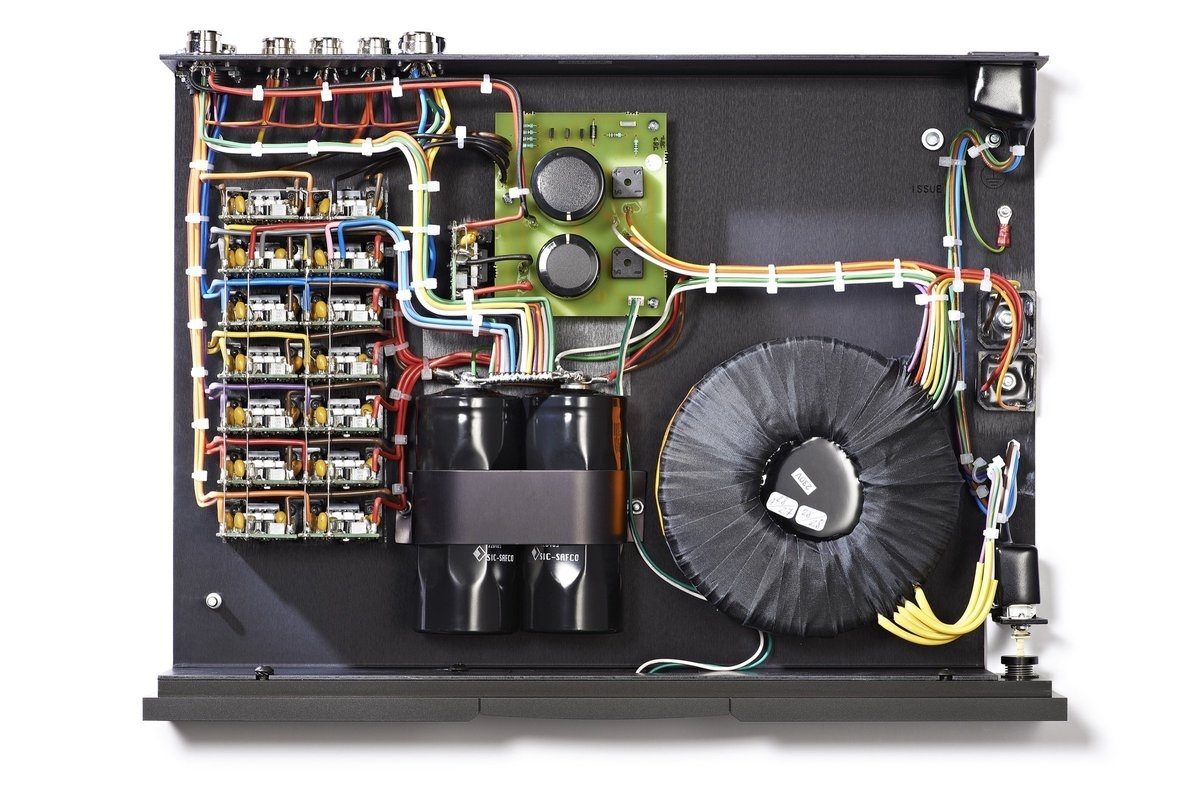

As iconic as it is widely acclaimed, the SuperCap DR is a Naim Audio classic, capable of powering every preamplifier in our range except for the NAC-N 172 XS and our flagship, the NAC 552. Its substantial toroidal transformer and high-quality smoothing capacitors combine to ensure improved timing, clarity and dynamic range from your favourite music.

Upgraded with our new DR voltage regulator, this timeless component remains one of the most well know and oft-employed power supplies in our range, and for good reason.

Features:

• 13 x 24V outputs, 2 x 12V output
• All-new Discrete Regulator (DR) configuration, delivering Naim Audio’s best-ever standards of stable, low-noise power
• Brushed, black-anodised aluminium chassis

Technology & Craft

Each of the multiple power outputs on the SuperCap DR uses Naim Audio's specially designed discrete regulators for optimum performance. The SuperCap DR can be used to power all of the Naim Audio preamplifier (except the NAC 552 and NAC-N 172 XS), Superline phono stage and active crossovers, and is the only choice for supplying power to the NAC 252 preamplifier.

Its anti-vibration, resonance-controlling feet complement the elegant new cast and extruded anti-magnetic chassis to protect the sensitive internal components from resonance and microphonic vibration.

The SuperCap DR was updated in 2012 as a result of a two year project to develop a new discrete regulator (DR) for Naim Audio power supplies. The new Naim Audio DR now features, alongside improvements to the wire routing, mechanical decoupling and internal layout. These enhancements, developed through intensive listening tests, significantly raise performance and make music even more communicative and enjoyable.

Finish:

• Case: Black powder coated
• Front: Brushed and black anodised

Outputs:

• Power Outputs: 13 x 24V, 2 x 12V

Physical:

• Shipping Weight: 14.2 kg
• Shipping Dimensions: 240 x 590 x 500 mm
• Weight: 11.6 kg
• Dimensions (HxWxD): 87 x 432 x 314 mm

Power:

• Mains Supply: 100V, 115V, 230V; 50 or 60Hz

Upgrades:

• Other: Power-Line Lite mains cable (UK denominations only)
